Overview

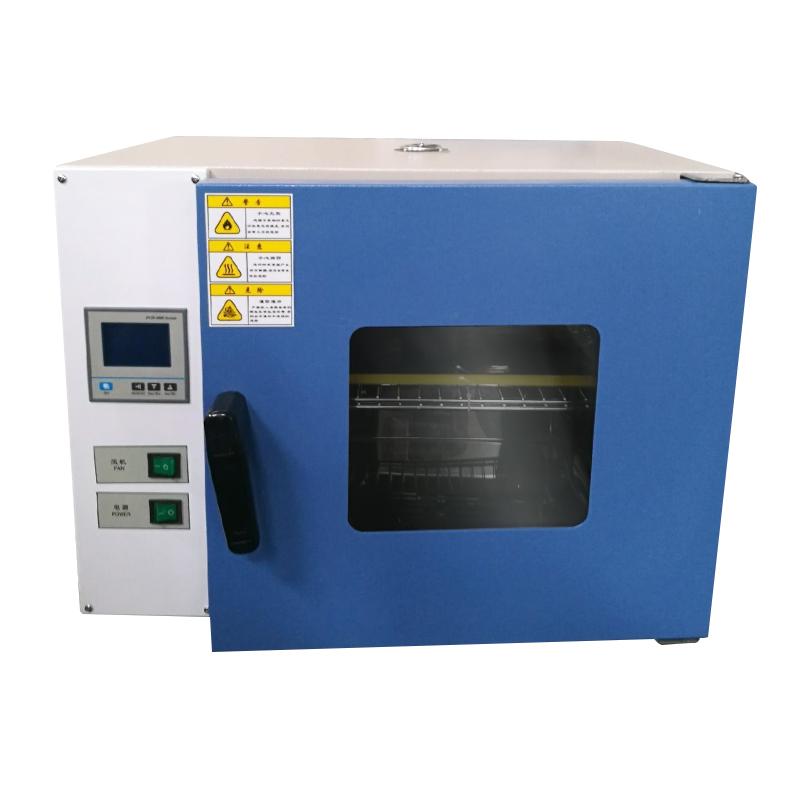

The DGG-9140A desktop blast drying oven is a small experimental horizontal thermostatic blast drying device with a back-heated design and horizontal forced convection technology to ensure uniform temperature distribution in the studio. The device is equipped with a high-performance CPU processing chip and a High Accuracy Platinum Resistance Sensor, providing precise temperature control and convenient operation experience.
Features
1. Horizontal design, back heating type, horizontal forced convection to ensure uniform temperature in the studio
2. High Performance CPU Processing Chip and High Accuracy Platinum Resistance Sensor, Precise Temperature Control, Easy Operation
3. Sensor fault alarm, over-temperature alarm, self-diagnostic dynamic control, temperature display correction, parameter memory and up to 9999 minutes timing function
4. Optional independent temperature limiting control system, automatically interrupts work beyond the set temperature
Principle
The back heating design is adopted, and the hot air circulation is realized by horizontal forced convection, so that the temperature inside the studio is evenly distributed. The device monitors the temperature in real time through the High Accuracy Platinum Resistance Sensor, and is controlled by the fuzzy PID of the high-performance CPU processing chip to precisely adjust the Heating power and maintain the set thermostatic environment.
Applications
Laboratories, research institutes, industrial production, mass testing
Standards
The product information does not mention specific compliance standards
Steps
1. Check the electrical performance before power on to confirm that there is no open circuit or leakage phenomenon
2. Put in the test product, close the box door, and unscrew the top exhaust valve
3. Connect the power supply and start working
Notice
• Please check the electrical performance of this box before power on, and pay attention to whether there is open circuit or leakage phenomenon
• Do not remove the side door arbitrarily, disturb or change the circuit, only when the box fails can remove the side door, check one by one according to the line
• This box is a non-explosion-proof drying oven, so it has flammable volatile items. Do not put it in the drying oven to avoid danger
