Overview

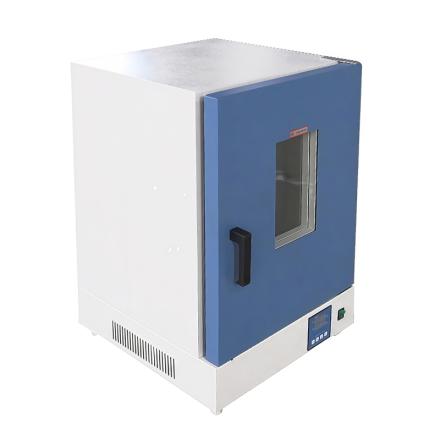

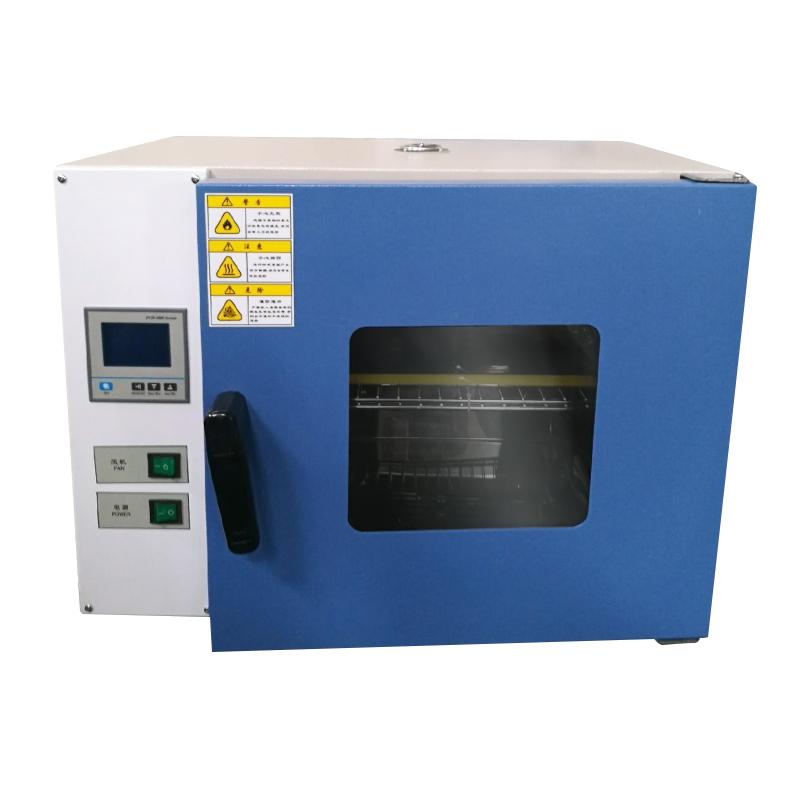

DGG-9240A desktop blast drying oven is a small experimental horizontal thermostatic blast drying oven sold directly by the factory. It adopts back heating and horizontal forced convection technology to ensure uniform temperature in the studio.
Features
1. Horizontal structure, back heating type, horizontal forced convection to ensure uniform temperature in the studio
2. High Performance CPU Processing Chip and High Sensitivity, High Accuracy Platinum Resistance Sensor Temperature Control System, Temperature Control Accurate, Easy Operation
3. Sensor fault alarm, over-temperature alarm, self-diagnostic dynamic control, temperature display correction, parameter memory and up to 9999 minutes timing function
4. Optional independent temperature limiting control system, automatically interrupts work beyond the set temperature
Principle
The back heating design is adopted to achieve hot air circulation through horizontal forced convection, and the high-performance CPU processing chip and High Accuracy Platinum Resistance Sensor are combined for precise temperature control to ensure uniform and stable temperature inside the studio.
Applications
Laboratory, scientific research, industrial production
Steps
1. Check the electrical performance before power on to confirm that there is no open circuit or leakage phenomenon
2. Put in the test product, close the box door, unscrew the top exhaust valve, turn on the power supply and start working
Notice
• Do not remove the side door arbitrarily, disturb or change the line, only when a fault occurs can remove the side door and check it one by one according to the line
• This box is a non-explosion-proof drying oven, do not put in flammable volatile items to avoid danger
