Overview

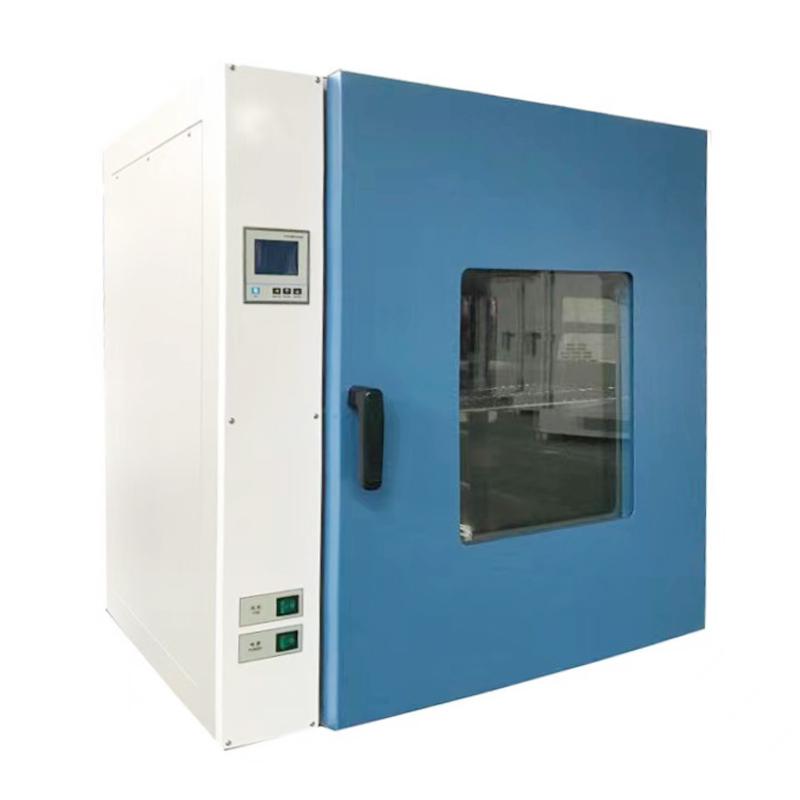

DHG-9053AE desktop blast drying oven is a horizontal, back heating equipment that uses horizontal forced convection technology to ensure uniform temperature in the studio. It is suitable for industrial and mining enterprises, Universities & colleges, biology, Food processing, R & D institutions and various laboratories. It is used for drying, baking, melting wax, disinfection and sterilizing of non-flammable, explosive and non-volatile items.
Features
1. Horizontal and back heating design, horizontal forced convection to ensure uniform temperature in the studio.
2. High Performance CPU Processing Chip and High Accuracy Platinum Resistance Sensor for precise temperature control.
3. Sensor fault alarm, over-temperature alarm, self-diagnostic dynamic control, temperature display correction, parameter memory and timing functions up to 9999 minutes or hours.
Principle
The drying oven uses a High Accuracy Platinum Resistance Sensor to monitor the temperature, and is precisely adjusted by a microprocessor based on fuzzy PID control technology to ensure that the studio temperature is stable within the set range.
Applications
Industrial and mining enterprises, Universities & colleges, Biology, Food processing, R & D institutions, various laboratories
Steps
1. Connect the power supply AC220V +/- 10%, 50Hz +/- 1Hz.
2. Use the LCD display and buttons to set the Temperature range Rt + 10~ 200 ℃.
3. Optional setting timing function, range from 0 to 9999 minutes or hours.
4. Start the equipment and force the circulatory convection system to start working.
5. Monitoring Temperature Accuracy 0.1 ℃, Flexibility +/- 1 ℃ to ensure safe operation.
Notice
Only for non-flammable, explosive and non-volatile items.
- Working environment temperature should be 5~ 30 ℃, relative humidity ≤ 80%.
Avoid over-temperature use and set the alarm to SV + 5 ° C.
- Regularly check Sensors and Control Systems to ensure proper functioning.
- Net weight of equipment 50KG, pay attention to safety when handling.
