Overview

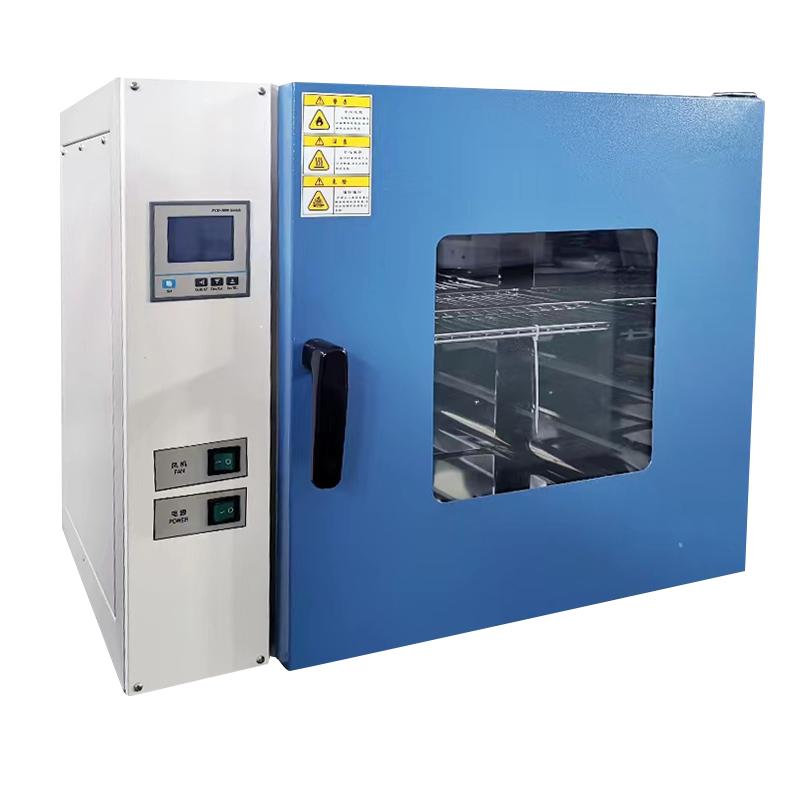

DHG-9075A desktop blast drying oven consists of a box body, a temperature control system and an air circulation system. The box shell is stamped with high-quality steel plate, the surface is electrostatic sprayed, the liner is mirror stainless steel, the thermal insulation layer is high-quality thermal insulation cotton, and the high temperature resistant silicone sealing ring is used at the connection between the studio and the box door.
Features
1. Temperature control system adopts PID Adaptive Control mode, no need to adjust temperature control parameters, high control accuracy, no overshoot
2. The temperature circulation system consists of heating pipes, blowers, and air ducts. The operation of the fan forces air convection to improve the temperature uniformity of the studio
3. Liquid crystal display, push-button operation, microprocessor temperature control using fuzzy PID control technology
4. High Accuracy Platinum Resistance Sensor
5. Timer Range 0~ 9999 minutes
Principle
DHG-9075A desktop blower drying oven realizes precise temperature control through temperature control system. The temperature circulation system is composed of heating tube, blower and air duct. The operation of the fan is used to force air convection to ensure uniform temperature distribution in the working room.
Applications
Drying, baking
Standards
Working environment temperature 5~ 30 ℃, working environment humidity ≤ 80%, altitude ≤ 2000m, Power supply voltage AC220V +/- 10% 50Hz +/- 1Hz
Steps
1. Fully read and understand the drying oven instruction manual
2. Ensure that the drying oven is effectively grounded
3. Use the same power supply as the drying oven requirements
4. Set the required temperature and time parameters
5. Start the equipment for drying and baking
Notice
• The drying oven must be effectively grounded
• Use a power supply consistent with drying oven requirements
• It is not allowed to lengthen or cut the product power cord at will
• Do not allow flammable, explosive, volatile and corrosive items for drying and baking
• Do not touch the door and observation window of the drying oven at high temperature (≥ 75 ° C) to avoid burns
• Do not insert hands or objects into the wind or out of the trend at will
• When the drying oven fails, be sure to ask professionals to repair it, and it is strictly forbidden to disassemble it by yourself
• The power plug must be unplugged when replacing the fuse and repairing the electrical parts
• If the drying oven is not used for a long time, the power plug must be unplugged
