Overview

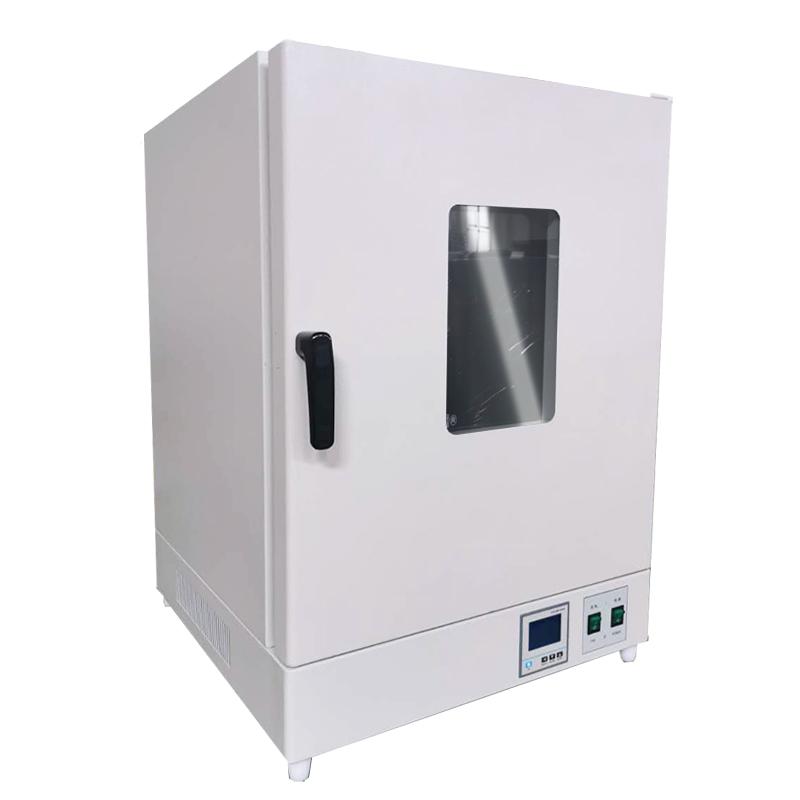

Vertical blast drying oven DHG-9030A is a factory direct sales product, which belongs to the blast type thermostatic drying oven series. The product is made of 304 stainless steel inside and 08F Cold rolled steel plate outside. The temperature control range is room temperature + 10 ° C to 200 ° C. It is suitable for a variety of drying needs.
Features
1. Temperature Control System with High Performance CPU Processing Chip and High Accuracy Platinum Resistance Sensor
2. Sensor fault alarm, over-temperature alarm, self-diagnostic dynamic control, temperature display correction, parameter memory and up to 9999 minutes timing function
3. Cold rolled steel plate and electrostatic powder spraying technology, durable and easy to clean
4. Equipped with CCC certified double-decked tempered Glass observation window, safe and clear observation
Principle
The drying oven achieves uniform distribution of hot air through forced circulation convection air duct, and the microprocessor with fuzzy PID control technology and platinum resistance Sensor precisely monitor and adjust the temperature to ensure that the temperature in the box is stable within the set range.
Applications
Laboratory sample drying, industrial material heat treatment, electronic component aging test, pharmaceutical product drying
Standards
CCC certification
Steps
1. Connect the AC220V power supply to ensure that the working environment temperature is 5~ 30 ° C and the humidity is ≤ 80%.
2. Set the required temperature and time parameters through the LCD touch screen
3. Start the device, observe that the temperature is stable, and then put in the sample.
4. Automatically stop working after the timing ends and take out the sample
Notice
• Working environment altitude shall not exceed 2000m
• Power supply voltage needs to be kept at AC220V +/- 10%, frequency 50Hz +/- 1Hz
• Avoid long-term operation in humid or high temperature environments
• Regularly clean observation windows and internal studios
• Immediately check equipment status when over-temperature alarm
