Overview

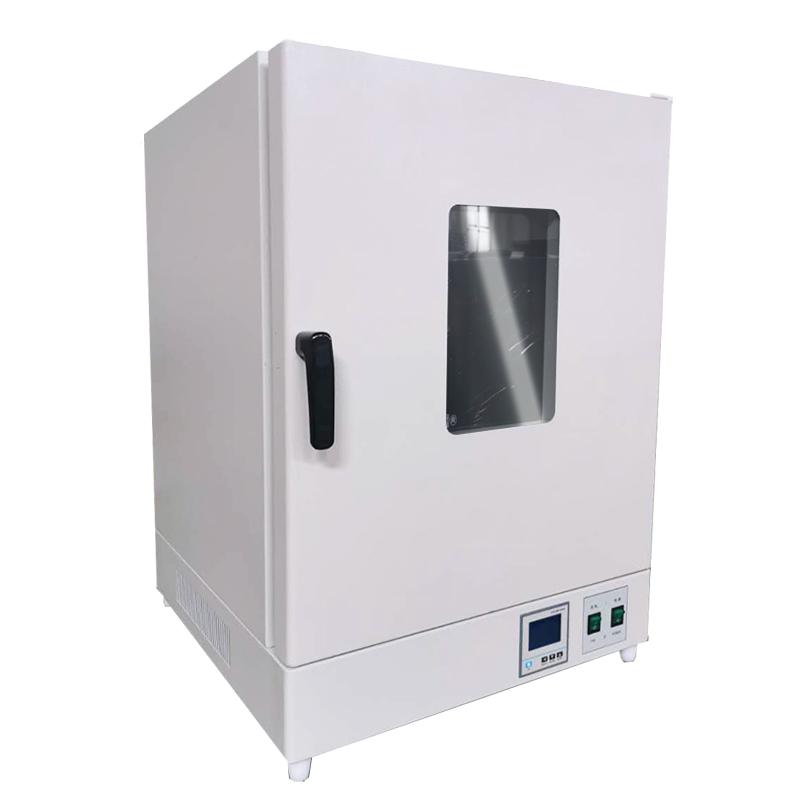

DHG-9070A vertical blast drying oven is a factory direct sales blast type thermostatic drying equipment, using high performance CPU processing chip and High Accuracy Platinum Resistance Sensor to achieve accurate temperature control. The product shell adopts high quality Cold rolled steel plate and electrostatic powder spraying technology, the liner is 304 stainless steel material, Temperature range is RT + 10~ 200 ℃.
Features
1. Temperature Control System with High Performance CPU Processing Chip and High Accuracy Platinum Resistance Sensor
2. Sensor fault alarm, over-temperature alarm, self-diagnostic dynamic control, temperature display correction, parameter memory and up to 9999 minutes timing function
3. High-quality Cold rolled steel plate shell adopts electrostatic powder spraying technology, which is more durable and convenient to clean
4. Double-decked tempered Glass observation window that meets CCC certification is safer and the samples in the observation box are clearer
Principle
The forced circulation convection air duct is designed, the temperature is detected by High Accuracy Platinum Resistance Sensor, and the temperature is precisely adjusted by the microprocessor of fuzzy PID control technology to realize the thermostatic drying function.
Applications
Laboratory sample drying, material heat treatment, industrial product drying
Standards
CCC certification
Steps
1. Connect the AC220V power supply
2. Set the required temperature parameters through the LCD touch screen
3. Set the timing time (0 to 9999 minutes or hours)
4. Start the device and start working
5. Monitor sample status through double-decked tempered Glass viewing window
Notice
• The working environment temperature should be within the range of 5~ 30 ° C
• The relative humidity of the working environment should not exceed 80%
• The altitude should not exceed 2000m
• Power supply voltage should be AC220V +/- 10%, frequency 50Hz +/- 1Hz
• Note that the temperature alarm setting is SV +/- 5 ° C
• Regularly clean the equipment shell to maintain hygiene
