Overview

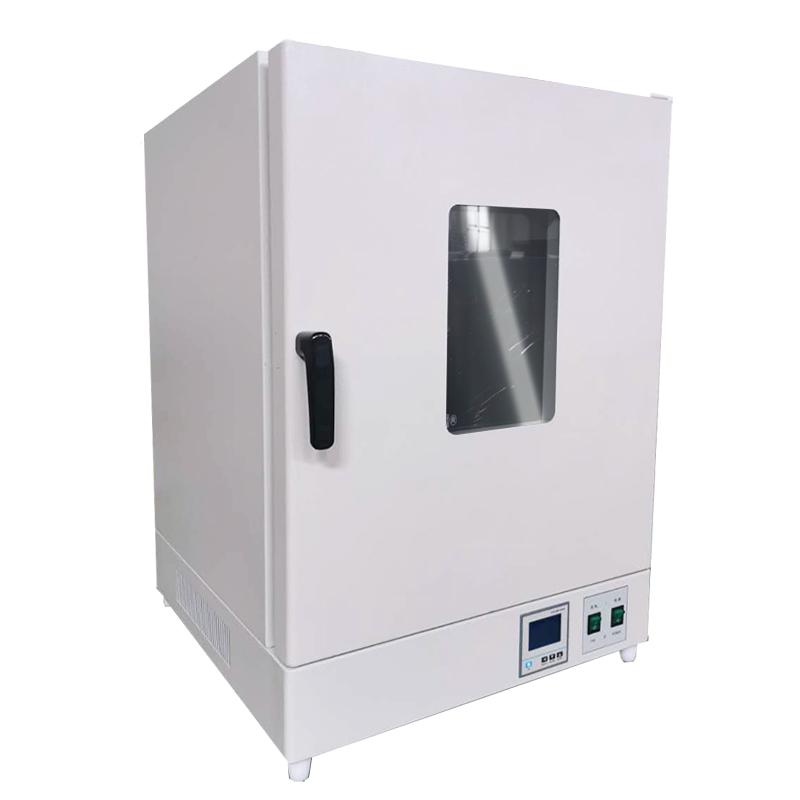

DHG-9140A vertical blast drying oven is a thermostatic drying equipment with high performance CPU processing chip and High Accuracy Platinum Resistance Sensor, which belongs to the double duct blast drying oven series. The product is made of 304 stainless steel inside, Temperature range is RT + 10~ 200 ℃, with LCD display and touch operation interface.
Features
1. High Performance CPU Processing Chip and High Accuracy Platinum Resistance Sensor, Precise Temperature Control, Easy Operation
2. Sensor fault alarm, over-temperature alarm, self-diagnostic dynamic control, temperature display correction, parameter memory and up to 9999 minutes timing function
3. Cold rolled steel plate, electrostatic powder spraying technology, durable and easy to clean
4. CCC certified double-decked tempered Glass observation window, safe and clear
Principle
Through forced circulation convection air duct system, high Accuracy Platinum Resistance Sensor is used to detect temperature, and fuzzy PID control technology microprocessor is used for precise temperature control to realize thermostatic drying function.
Applications
Laboratories, scientific research institutions, industrial production
Standards
CCC certification
Steps
1. Connect the AC220V power supply
2. Set the required temperature parameters through the LCD touch screen
3. Set the timing time (0-9999 minutes or hours)
4. Start the device and start working
5. Monitor sample status through the observation window
Notice
• The working environment temperature should be within the range of 5~ 30 ° C
• The relative humidity of the working environment should not exceed 80%
The altitude should not exceed 2000m
• Power supply voltage should be AC220V +/- 10%, frequency 50Hz +/- 1Hz
• Pay attention to the temperature alarm setting, the factory value is SV +/- 5 ℃
• Make sure the equipment is well grounded before use
