Overview

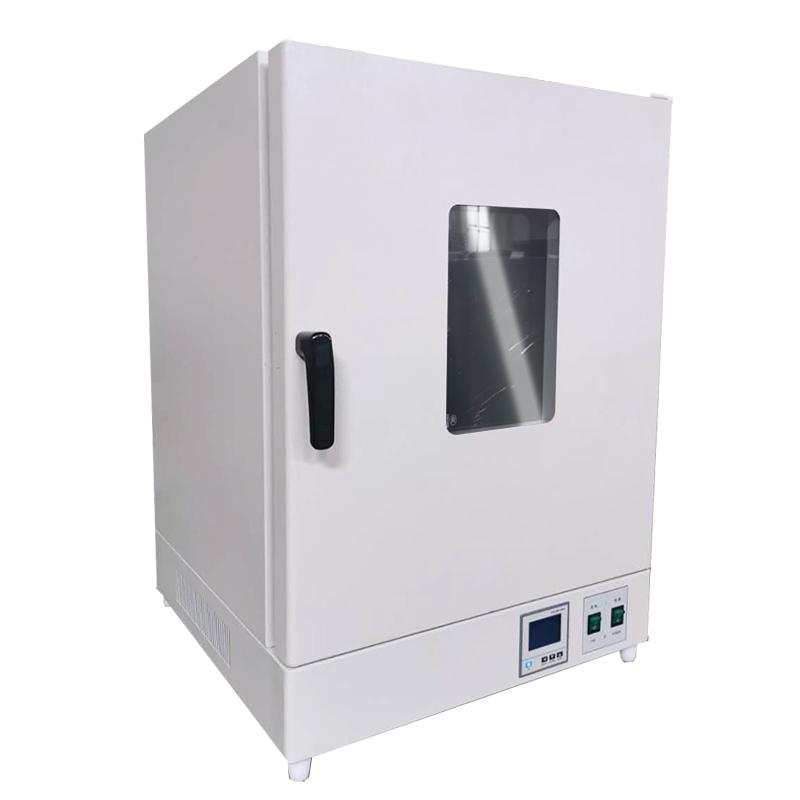

DHG-9240A vertical blast drying oven is a blast type thermostatic drying oven product with high performance CPU processing chip and High Accuracy Platinum Resistance Sensor temperature control system. The product shell is made of high quality Cold rolled steel plate, the internal studio material is 304 stainless steel, Temperature range is RT + 10~ 200 ℃, with LCD display, touch operation and fuzzy PID control technology.
Features
1. Temperature Control System with High Performance CPU Processing Chip and High Accuracy Platinum Resistance Sensor
2. Sensor fault alarm, over-temperature alarm, self-diagnostic dynamic control, temperature display correction, parameter memory and up to 9999 minutes timing function
3. High-quality Cold rolled steel plate shell adopts electrostatic powder spraying technology, which is durable and easy to clean
4. Double-decked tempered Glass observation window that meets CCC certification is safe and reliable, and the samples in the observation box are clear
Principle
The drying oven adopts forced circulation convection air duct design, detects temperature through High Accuracy Platinum Resistance Sensor, and uses fuzzy PID control technology to accurately adjust temperature by microprocessor to realize thermostatic drying function.
Applications
Laboratories, research institutes, industrial production
Standards
CCC certification
Steps
1. Connect the AC220V power supply
2. Set the required temperature parameters through the LCD touch screen
3. Set the timing time (0 to 9999 minutes or hours)
4. Start the device and start working
5. Monitor sample status through double-decked tempered Glass viewing window
Notice
• The working environment temperature should be within the range of 5~ 30 ° C
• The relative humidity of the working environment should not exceed 80%
The altitude should not exceed 2000m
• Power supply voltage should be AC220V +/- 10%, frequency 50Hz +/- 1Hz
• Note that the temperature alarm setting is SV +/- 5 ° C
• The power consumption of the device is 2000W, please ensure the power load capacity
• Regularly clean the enclosure to keep the equipment in good condition
