Overview

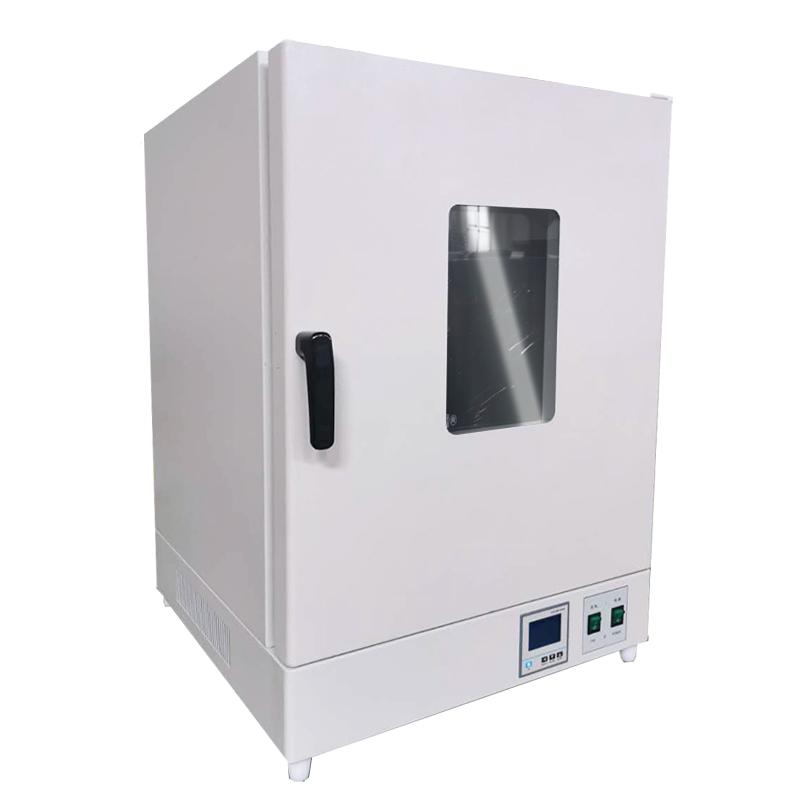

DHG-9420A vertical blast drying oven is a thermostatic drying equipment with high performance CPU processing chip and High Accuracy Platinum Resistance Sensor. The product uses 304 stainless steel liner and 08F Cold rolled steel plate shell, Temperature range is RT + 10~ 200 ℃, and it has a forced circulation convection air duct system, which is suitable for various drying needs.
Features
1. Temperature Control System with High Performance CPU Processing Chip and High Accuracy Platinum Resistance Sensor
2. Sensor fault alarm, over-temperature alarm, self-diagnostic dynamic control, temperature display correction, parameter memory and up to 9999 minutes timing function
3. High-quality Cold rolled steel plate shell adopts electrostatic powder spraying technology, strong durability and convenient cleaning
4. Double-decked tempered Glass observation window that meets CCC certification is safe and reliable, and the samples in the observation box are clear
Principle
The temperature control system composed of high-performance CPU processing chip and High Accuracy Platinum Resistance Sensor adopts fuzzy PID control technology implementation to precisely control the temperature. The equipment circulates the hot air evenly in the studio by forcing the convection air duct system to achieve the thermostatic drying effect.
Applications
Laboratory sample drying, industrial material drying, scientific research experiment heating
Standards
CCC certification
Steps
1. Connect the AC220V power supply
2. Set the required temperature parameters through the LCD touch screen
3. Set the timing function (0~ 9999 minutes or hours)
4. Start the device running
5. Monitor sample status through double-decked tempered Glass viewing window
6. Turn off the power after drying
Notice
• The working environment temperature should be within the range of 5~ 30 ° C
• The relative humidity of the working environment should not exceed 80%
The altitude should not exceed 2000m
• Power supply voltage needs to be kept at AC220V +/- 10%, frequency 50Hz +/- 1Hz
• Confirm that the temperature alarm is set to SV +/- 5 ° C before use
• Regularly clean the equipment shell and keep the observation window clear
• Note that the power consumption of the equipment is 4900W to ensure that the power supply line meets the requirements
