Overview

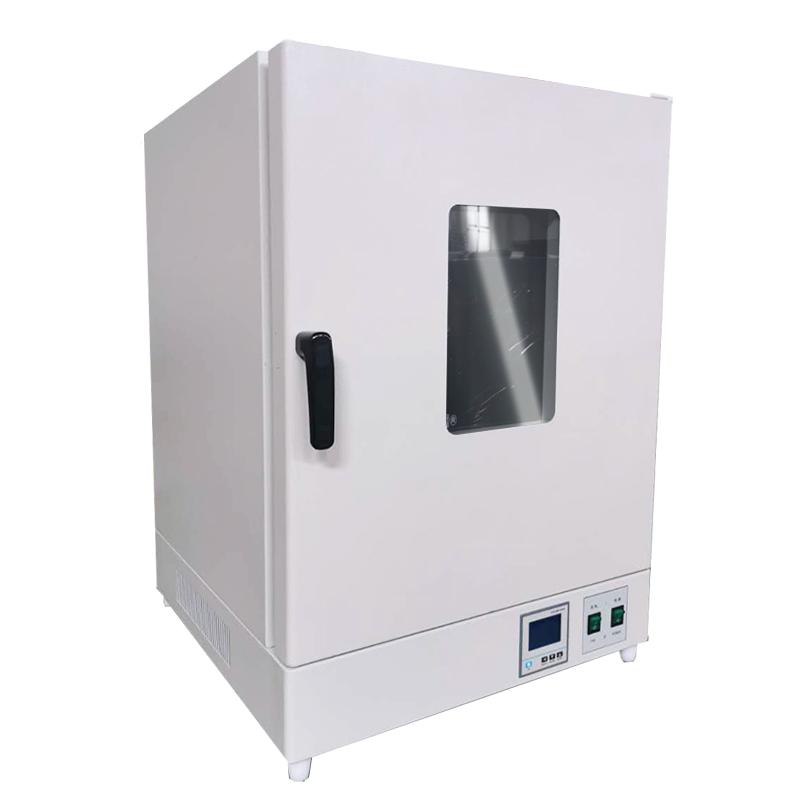

DHG-9640A vertical blast drying oven is a factory-sold blast type thermostatic drying equipment. The product uses 304 stainless steel liner and 08F Cold rolled steel plate shell, Temperature range is RT + 10~ 200 ℃, equipped with forced circulation convection air duct system, suitable for various drying and thermostatic treatment needs.
Features
1. Temperature Control System with High Performance CPU Processing Chip and High Accuracy Platinum Resistance Sensor
2. Sensor fault alarm, over-temperature alarm, self-diagnostic dynamic control, temperature display correction, parameter memory and up to 9999 minutes timing function
3. High-quality Cold rolled steel plate shell adopts electrostatic powder spraying technology, strong durability and easy cleaning
4. Double-decked tempered Glass observation window that meets CCC certification, safe and reliable and clear samples in the observation box
Principle
The drying oven achieves uniform circulation of hot air through a forced circulation convection air duct system, and a microprocessor with fuzzy PID control technology and a High Accuracy Platinum Resistance Sensor precisely monitor and control the temperature to ensure that the temperature in the box is stable within the set range.
Applications
Laboratory sample drying, material heat treatment, industrial product drying, scientific research experiment thermostatic treatment
Standards
CCC certification
Steps
1. Connect the AC220V power supply
2. Set the required temperature and time parameters through the LCD touch screen
3. Start the device and start working
4. Monitor the sample status in the box through the observation window
5. The device automatically stops working after reaching the set time
Notice
• The working environment temperature should be kept within the range of 5~ 30 ° C
• The relative humidity of the working environment should not exceed 80%
• The altitude should not exceed 2000m
• Power supply voltage must meet AC220V +/- 10% requirements
• Confirm the temperature alarm setting value before use
• Regularly clean the equipment shell to maintain hygiene
• Avoid using equipment in humid environments
