Overview

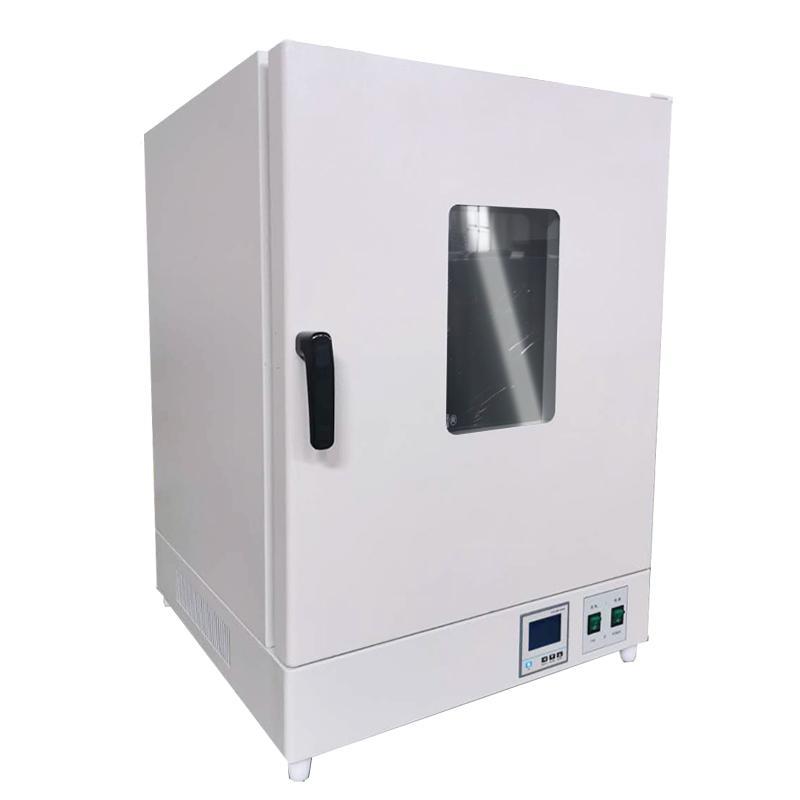

DHG-9030AE vertical blast drying oven is a drying equipment for industrial and mining enterprises, Universities & colleges, biology, Food processing, scientific research institutions, and various laboratories. It is suitable for drying, baking, melting wax, disinfection and sterilization of non-flammable, explosive and non-volatile items.
Features
1. Temperature Control System with High Performance CPU Processing Chip and High Accuracy Platinum Resistance Sensor
2. Sensor fault alarm, over-temperature alarm, self-diagnostic dynamic control, temperature display correction, parameter memory and up to 9999 minutes timing function
3. Cold rolled steel plate, phosphating electrostatic powder spraying technology, durable and easy to clean
4. Double-decked tempered Glass observation window meets CCC certification, safe and clear observation
Principle
Through forced circulation convection air duct system, using fuzzy PID control technology microprocessor temperature control, using High Accuracy Platinum Resistance Sensor to monitor temperature, to achieve accurate temperature regulation and stable hot air circulation drying.
Applications
Industrial and mining enterprises, Universities & colleges, Biology, Food processing, Research institutions, various laboratories
Standards
CCC certification
Steps
1. Connect the AC220V power supply
2. Set the required temperature and time parameters through the LCD touch screen
3. Start the device running
4. Monitor the sample status in the box through the observation window
5. The device automatically stops working after reaching the set time
Notice
• Only suitable for non-flammable, explosive and non-volatile items
• The working environment temperature should be within the range of 5~ 30 ° C
• environment relative humidity should not exceed 80%
The altitude should not exceed 2000m
• Power supply voltage should be AC220V +/- 10%
• Power supply frequency should be 50Hz +/- 1Hz
• Please confirm that the equipment is well grounded before use
