Overview

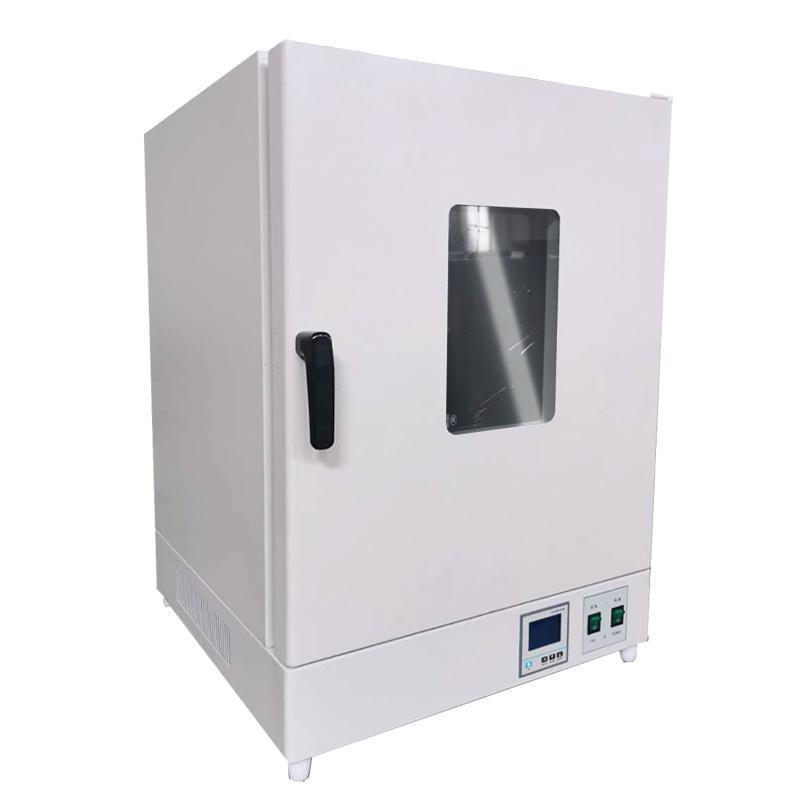

DHG-9070AE vertical blast drying oven is a factory direct sale of blast type thermostatic drying equipment, using single air duct blast design, internal material is 304 stainless steel, temperature control range is room temperature + 10 ℃ to 200 ℃, suitable for a variety of drying and thermostatic treatment needs.
Features
1. Temperature Control System with High Performance CPU Processing Chip and High Accuracy Platinum Resistance Sensor
2. Sensor fault alarm, over-temperature alarm, self-diagnostic dynamic control, temperature display correction, parameter memory and up to 9999 minutes timing function
3. Cold rolled steel plate, electrostatic powder spraying technology, durable and easy to clean
4. Equipped with CCC certified double-decked tempered Glass observation window, safe and reliable, easy to observe samples in the box
Principle
The drying oven utilizes High Accuracy Platinum Resistance Sensor to detect the temperature through forced circulation convection air duct system, and uses a microprocessor with fuzzy PID control technology to precisely adjust the temperature to realize the thermostatic drying function.
Applications
Industrial drying, laboratory thermostatic treatment, material drying, sample prepative
Standards
CCC certification
Steps
1. Connect the AC220V power supply
2. Set the required temperature and time parameters through the LCD touch screen
3. Start the device running
4. Monitor the sample status in the box through the observation window
5. The device automatically stops after reaching the set time
Notice
• The working environment temperature should be kept within the range of 5~ 30 ° C
• The relative humidity should not exceed 80%
The altitude should not exceed 2000m
• The power requirements are AC220V +/- 10%, 50Hz +/- 1Hz
• Confirm the temperature alarm setting value before use
• Regularly clean equipment enclosures and observation windows
• Avoid use in humid environments
