Overview

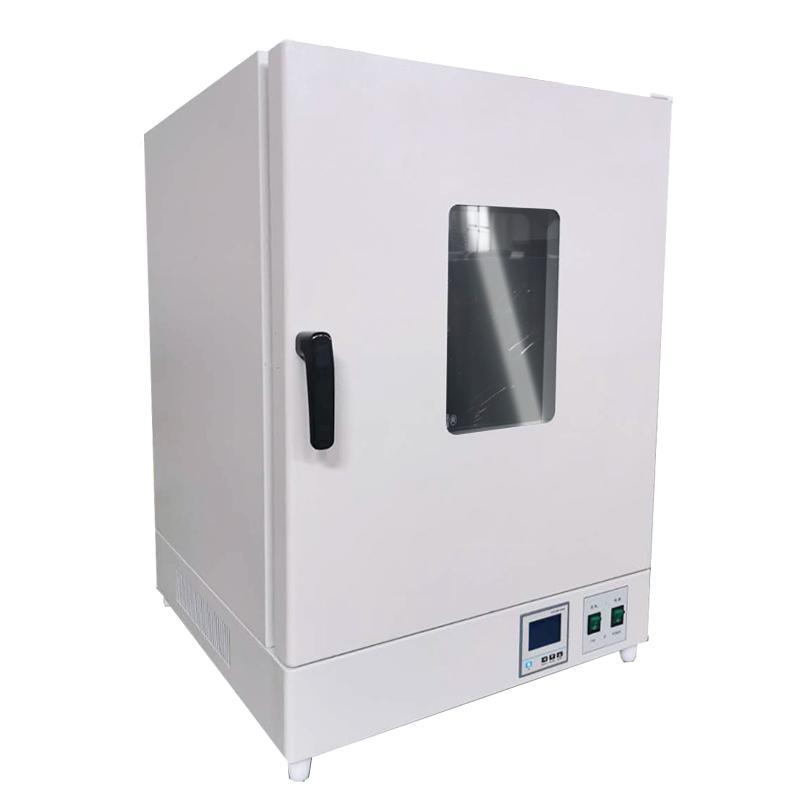

DHG-9140AE vertical blast drying oven is a thermostatic drying equipment with high performance CPU processing chip and High Accuracy Platinum Resistance Sensor. The product is made of 304 stainless steel inside and 08F Cold rolled steel plate outside. The temperature control range is room temperature + 10~ 200 ℃, and it has a forced circulation convection air duct design.
Features
1. Temperature Control System with High Performance CPU Processing Chip and High Accuracy Platinum Resistance Sensor
2. Sensor fault alarm, over-temperature alarm, self-diagnostic dynamic control, temperature display correction, parameter memory and up to 9999 minutes timing function
3. Cold rolled steel plate with electrostatic powder spraying technology
4, CCC certified double-decked tempered Glass observation window
Principle
Through the temperature control system composed of high-performance CPU processing chip and High Accuracy Platinum Resistance Sensor, the fuzzy PID control technology implementation of precise temperature control is adopted. The temperature in the box is evenly distributed through the forced circulation convection air duct to ensure the thermostatic drying effect.
Applications
Laboratory sample drying, material heat treatment, industrial product drying
Standards
CCC certification
Steps
1. Connect the AC220V power supply
2. Set temperature parameters through the LCD touch screen
3. Set the timing time (0-9999 minutes or hours)
4. Start the device running
5. Monitor sample status through double-decked tempered Glass viewing window
Notice
• The working environment temperature should be kept within the range of 5~ 30 ° C
• The relative humidity should not exceed 80%
• The altitude does not exceed 2000m
• power requirements AC220V +/- 10%, 50Hz +/- 1Hz
• Note that the temperature alarm setting is SV +/- 5 ° C
• Regularly clean the equipment housing
