Overview

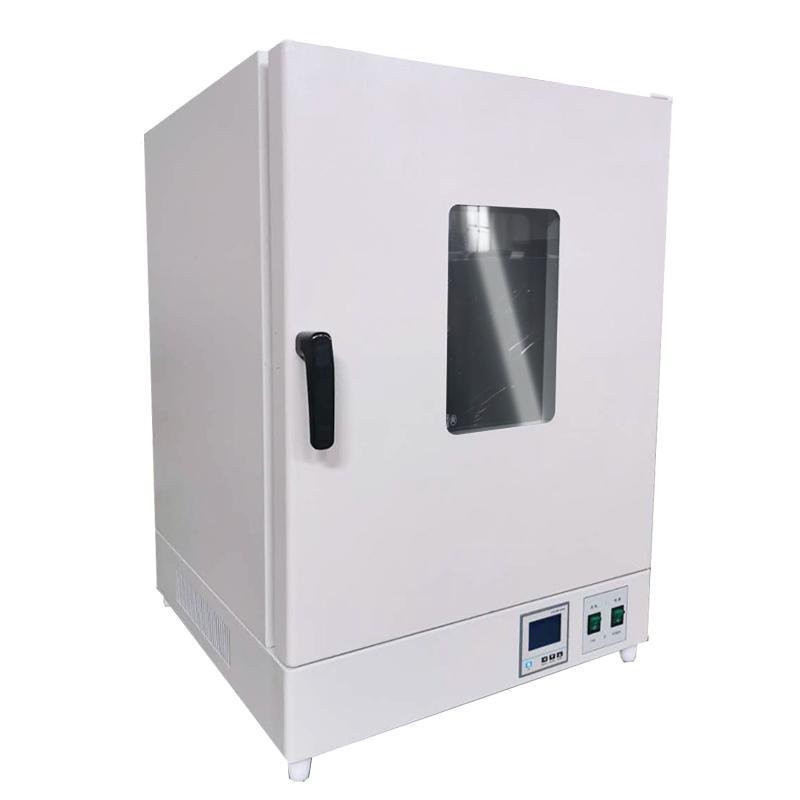

DHG-9240AE vertical blast drying oven is a factory direct sales product, which belongs to the blast type thermostatic drying oven series. The product adopts high-performance CPU processing chip and High Accuracy Platinum Resistance Sensor temperature control system, the temperature control range is from room temperature + 10 ℃ to 200 ℃, and it has LCD display, touch operation and fuzzy PID control technology.
Features
1. High Performance CPU Processing Chip and High Accuracy Platinum Resistance Sensor, Precise Temperature Control, Easy Operation
2. Sensor fault alarm, over-temperature alarm, self-diagnostic dynamic control, temperature display correction, parameter memory and up to 9999 minutes timing function
3. Cold rolled steel plate, electrostatic powder spraying technology, durable and easy to clean
4. Double-decked Tempered Glass Observation Window with CCC Certification, Safe and Reliable, Clear Observation
Principle
The drying oven adopts a forced circulation convection air duct system, monitors the temperature in real time through a High Accuracy Platinum Resistance Sensor, and precisely adjusts the heating system based on fuzzy PID control technology by a microprocessor to realize a thermostatic drying environment.
Applications
Laboratory sample drying, material heat treatment, industrial drying
Standards
CCC certification
Steps
1. Connect the AC220V power supply
2. Set the required temperature and time parameters through the LCD touch screen
3. Start the device running
4. Monitor sample status through the observation window
5. After the timing ends, the device automatically stops working
Notice
• The working environment temperature should be kept within the range of 5~ 30 ° C
• The relative humidity should not exceed 80%
The altitude should not exceed 2000m
• power requirements AC220V +/- 10%, 50Hz +/- 1Hz
• Make sure the equipment is well grounded before use
• Do not open the box door at will when the equipment is running
• Regularly clean equipment enclosures and observation windows
