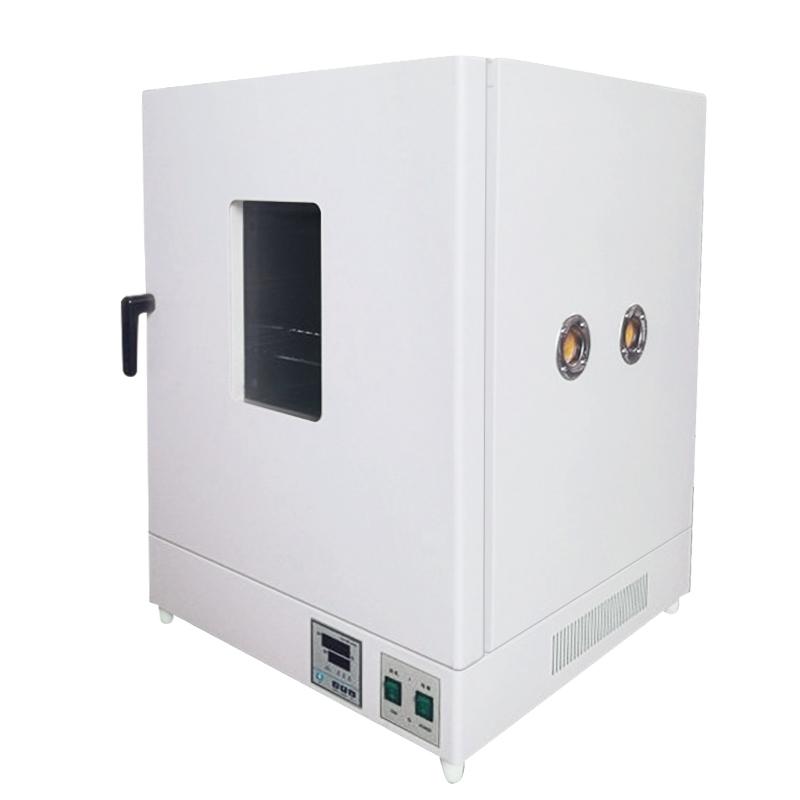

DHG-9070B vertical blast Drying Oven stainless steel liner forced circulation convection

Name: DHG-9070B vertical blast Drying Oven stainless steel liner forced circulation convection
Brand: ShangHaiPeiYin
SKU: NB044395
Price: 452.0 USD
Availability: InStock

$ 452.00Ex works

Adopt double circulation air duct system and stainless steel heating pipe, Temperature control accuracy up to +/- 1 ℃, Temperature resolution 0.1 ℃. Studio shelf adjustable, insulation layer thickness over 70mm, effectively reduce heat loss and improve Temperature uniformity.

Model

Get Quote

Category : Drying Oven

Brand : ShangHaiPeiYin

SKU : NB044395

Service :The delivery and service By NBCLab.Com

Overview

DHG-9070B vertical blast drying oven is an electric thermostatic blast drying equipment, which is composed of chamber body, heating system, electrical control system, air supply system and protection system. The box body adopts stainless steel studio and Cold rolled steel plate outer box, which is beautifully designed and suitable for laboratory environment.

Features

1. The box adopts equipment production and industry process manufacturing process, with smooth lines and beautiful appearance 2. The studio material is stainless steel, the outer box material is Cold rolled steel plate, and the shell is sprayed with metallic paint 3. The shelves in the studio can be freely moved 4. The thermal insulation material is fine fiberglass thermal insulation cotton, the thermal insulation layer Film thickness > 70mm, high performance edge structure 5. High-performance sealing material and rubber sealing structure are used between the door and the door frame, and the sealing performance is good 6. The air duct in the box adopts a double circulation system, composed of stainless steel multi-wing centrifugal wind turbine and circulating air duct 7. Stainless steel electric heating tube for heater, fast heating and long service life

Principle

The electric thermostatic drying oven generates heat through the electric heater placed at the bottom of the box, and the heat is discharged vertically upward through the bottom air duct. After drying, it is sucked in by the centrifugal wind wheel at the bottom to form a reasonable air duct circulation. The forced circulation convection air duct can fully convect the hot air and ensure the uniform temperature in the box.

Applications

laboratory

Operating environment temperature
5~30℃
relative humidity
≤80%
Altitude
≤2000m
Power supply Voltage
AC 220V±10% 50Hz±1Hz
Temperature Control mode
Liquid crystal display, push-button, fuzzy PID control technology for microprocessing temperature control
temperature sensor
High Accuracy Platinum Resistance Sensor
convection mode
Forced circulation convection duct
Timer Range
Optional 0~ 9999 minutes or hour timing
Temperature Range
RT+10~300℃
Temperature resolution
0.1℃
Temperature Fluctuation
±1℃
power consumption
1500W
Liner material
304 stainless steel
Outer box material
08F Cold rolled steel plate
Liner Size
400*400*450mm
Dimension
550*550*800mm

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
