Overview

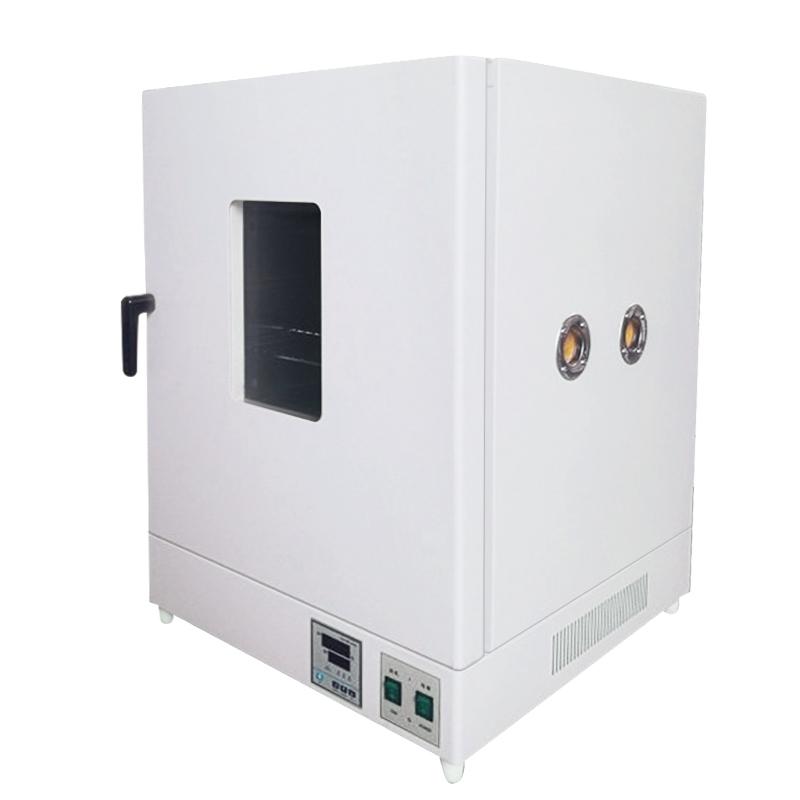

DHG-9140B vertical blast drying oven is an electric thermostatic blast drying equipment composed of chamber body, heating system, electrical control system, air supply system and protection system. It uses stainless steel studio and Cold rolled steel plate outer box, equipped with high-performance thermal insulation materials and sealing structure, suitable for laboratory thermostatic drying needs.
Features
1. The box is made of equipment, with smooth lines and beautiful appearance.
2. The studio material is stainless steel, the outer box is Cold rolled steel plate, the shell is sprayed with metal paint, suitable for laboratory Color matching.
3. The shelves in the working room can be moved freely.
4. The thermal insulation material is fine fiberglass thermal insulation cotton, Film thickness > 70mm, good thermal insulation performance.
5. Doors and door frames are made of high-performance sealing materials and rubber sealing structures for sealing, high temperature resistance and aging resistance.
6. The air duct in the box adopts a double circulation system, stainless steel multi-wing centrifugal wind turbine, and the hot air is fully convected and the temperature is uniform.
7. The heater is made of stainless steel electric heating tube, which heats up quickly and has a long service life.
Principle
The electric thermostatic drying oven adjusts the temperature through an electrical control system, and the heating system uses a stainless steel electric heating tube to quickly heat up. The air supply system adopts a double circulation air duct, and the heat is discharged vertically from the bottom up. After drying the object, it is sucked by the centrifugal wind wheel to form a circulation convection to ensure the uniform distribution of temperature in the box.
Applications
Laboratories, scientific research institutions, industrial production
Steps
1. Connect the power supply AC220V +/- 10%, 50Hz +/- 1Hz.
2. Set the temperature control range RT + 10~ 300 ℃, resolution 0.1 ℃.
3. Optional timing from 0 to 9999 minutes or hours.
4. Start the device and monitor Temperature Fluctuation +/- 1 ℃.
Notice
The working environment temperature should be maintained at 5~ 30 ℃, relative humidity ≤ 80%.
• The altitude does not exceed 2000m.
• Power supply voltage stable at AC220V +/- 10%, 50Hz +/- 1Hz.
• Regularly check the sealing structure and insulation materials to prevent heat loss.
• Avoid use in humid or high altitude environments to prevent equipment performance degradation.
