Overview

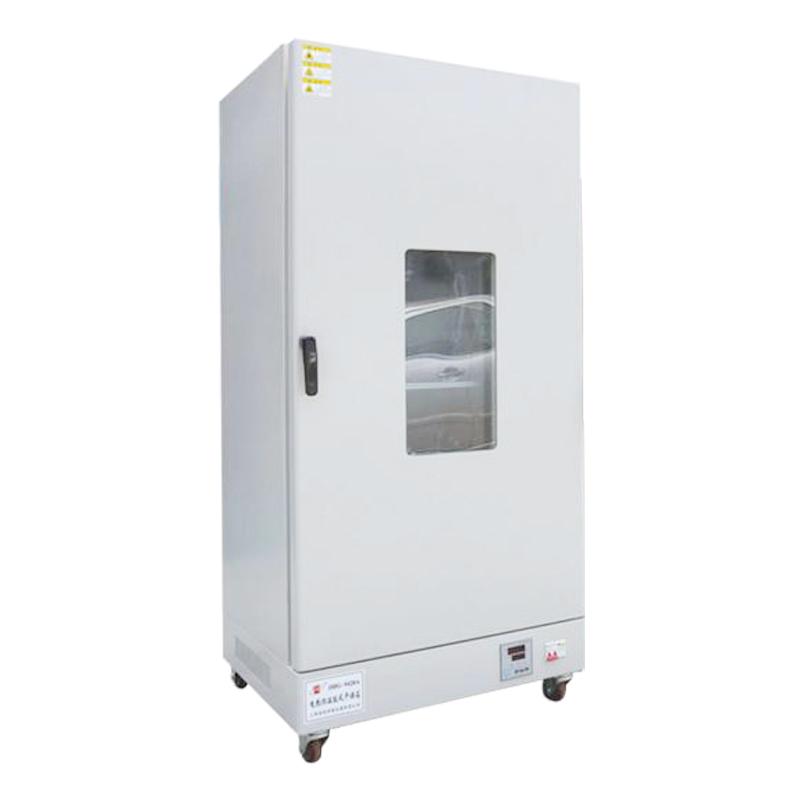

DHG-9420B vertical blast drying oven is a factory direct sales product, mainly used in industrial and mining enterprises, Universities & colleges, biological products, Food processing, agricultural science and technology, chemical industry, R & D institutions and various laboratories for powder drying and baking under vacuum conditions. Especially suitable for drying of heat sensitive, easy analysis, easy oxidation substances and complex components.
Features
1. High Performance CPU Processing Chip and High Sensitivity, High Accuracy Platinum Resistance Sensor Temperature Control System to Make Temperature Control More Accurate and Easy to Operate
2. Sensor fault alarm, over-temperature alarm, self-diagnostic dynamic control, temperature display correction, parameter memory and timing function up to 9999 minutes
3. Cold rolled steel plate with phosphating electrostatic powder spraying technology, which is more durable and easy to clean
4. Three-layer tempered Glass observation window that meets CCC certification is safer and the samples in the observation box are clearer
Principle
The drying oven adopts a forced circulation convection air duct system, detects the temperature through a High Accuracy Platinum Resistance Sensor, and uses a microprocessor with fuzzy PID control technology for precise temperature control to achieve uniform heating and drying process.
Applications
Industrial and mining enterprises, Universities & colleges, Biological products, Food processing, Agricultural science and technology, Chemical industry, R & D institutions, various laboratories
Standards
CCC certification
Steps
1. Connect the AC220V power supply
2. Set the required temperature and time parameters through the LCD screen and buttons
3. Start the equipment, and the system automatically performs temperature control and timing operations
4. After drying, turn off the power
Notice
• The working environment temperature should be within the range of 5~ 30 ° C
• relative humidity not more than 80%
• The altitude does not exceed 2000m
• power requirements AC220V +/- 10%, 50Hz +/- 1Hz
• Check whether the Sensor and Alarm function are normal before use
• Regularly clean the shell and observation window
• Avoid over-temperature use and pay attention to safe operation
