Overview

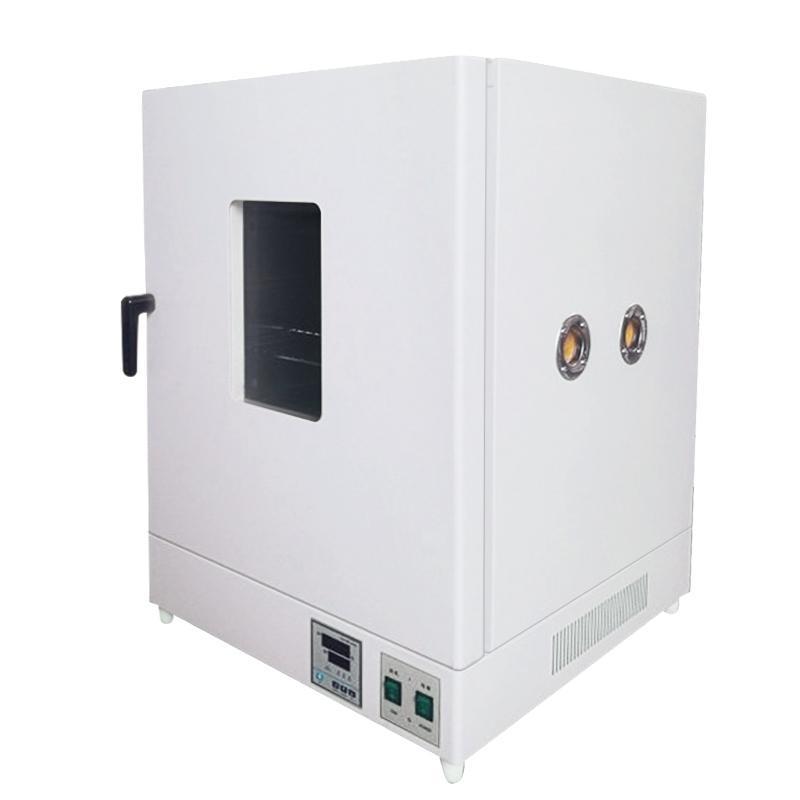

DHG-9030BE vertical blast drying oven is composed of chamber body, heating system, electrical control system, air supply system, protection system, etc. It is suitable for industrial and mining enterprises, Universities & colleges, biology, Food processing, scientific research institutions and various laboratories to carry out non-flammable, explosive and non-volatile materials Drying, baking, melting wax, disinfection and sterilizing operations.
Features
1. The box is made of equipment, with smooth lines and beautiful appearance
2. The studio material is stainless steel, and the outer box is Cold rolled steel plate sprayed with metal paint, which is beautiful and suitable for laboratory matching
3. The shelves in the studio can be freely moved
4. Insulation material is fine fiberglass insulation cotton, Film thickness > 70mm, high performance insulation structure, less heat loss
5. Doors and door frames are made of high-performance sealing materials and rubber sealing structures, with good sealing, high temperature resistance and ageing resistance
6. The air duct in the box adopts a double circulation system, stainless steel multi-wing centrifugal wind turbine, and the hot air is fully convected and the temperature is uniform
7. Stainless steel electric heating tube for heater, fast heating and long service life
8. LCD display, push-button operation, fuzzy PID control technology, accurate temperature control
Principle
The drying oven generates heat through an electric heater placed at the bottom of the box, and the heat is discharged vertically upward through the bottom air duct. After drying, it is sucked in by the centrifugal wind wheel at the bottom to form a circulating air duct. Forced circulation convection is used to fully convect the hot air to ensure uniform temperature distribution in the box.
Applications
Industrial and mining enterprises, Universities & colleges, Biology, Food processing, Research institutions, various laboratories
Steps
1. Connect power supply AC220V +/- 10% 50Hz +/- 1Hz
2. Set the temperature control range RT + 10~ 300 ℃, resolution 0.1 ℃
3. Optional timing 0~ 9999 minutes or hours
4. Start the device and control it through the LCD display and buttons
5. Monitor Temperature Fluctuation +/- 1 ℃
6. Turn off the power after use
Notice
• Only for non-flammable, explosive and non-volatile items
• Working environment temperature 5~ 30 ℃, relative humidity ≤ 80%, altitude ≤ 2000m
• Ensure that the power supply meets the requirements of AC220V +/- 10% 50Hz +/- 1Hz
• Pay attention to high temperature during operation to avoid burns
• Regularly check the sealing structure and heating system to ensure normal operation
