Overview

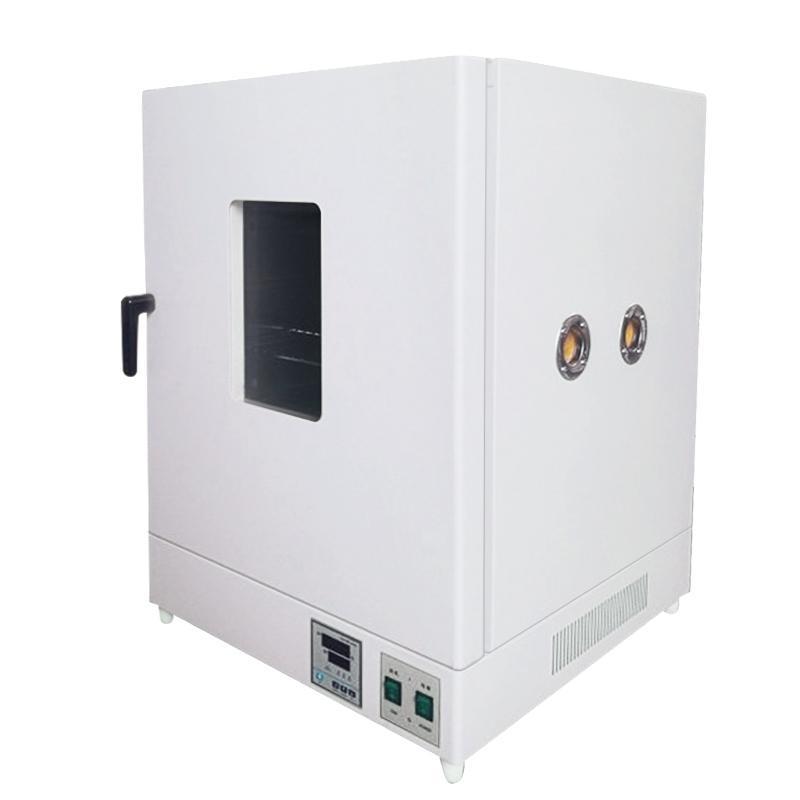

DHG-9070BE vertical blast drying oven consists of chamber body, heating system, electrical control system, air supply system, protection system, etc. It is suitable for drying, baking, melting wax, disinfection and sterilizing of non-flammable, explosive and non-volatile substances in industrial and mining enterprises, Universities & colleges, biology, Food processing, scientific research institutions, ** units and various laboratories.
Features
1. The box is made of equipment, with smooth and beautiful lines
2. The studio material is stainless steel, and the outer box is Cold rolled steel plate spray metal paint
3. The shelves in the studio can be freely moved
4. Insulation layer using fine fiberglass insulation cotton, Film thickness > 70mm, good insulation performance
5. Doors and door frames are made of high-performance sealing materials and rubber sealing structures
6. The air duct in the box adopts a double circulation system with good temperature uniformity
7. The heater is made of stainless steel electric heating tube, which has a fast temperature rise and a long service life
Principle
The air duct in the box adopts a double circulation system, which is composed of a stainless steel multi-wing centrifugal wind wheel and a circulating air duct. The heat of the electric heater placed at the bottom of the box is discharged vertically upward through the bottom air duct, and then sucked by the centrifugal wind wheel at the bottom after drying, forming a reasonable air duct circulation, so that the hot air is fully convected to ensure the uniform temperature in the box.
Applications
Industrial and mining enterprises, Universities & colleges, Biology, Food processing, Scientific research institutions, ** units, various laboratories
Notice
Only suitable for drying, baking, melting wax, disinfection and sterilizing operations of non-flammable, explosive and non-volatile items
