Overview

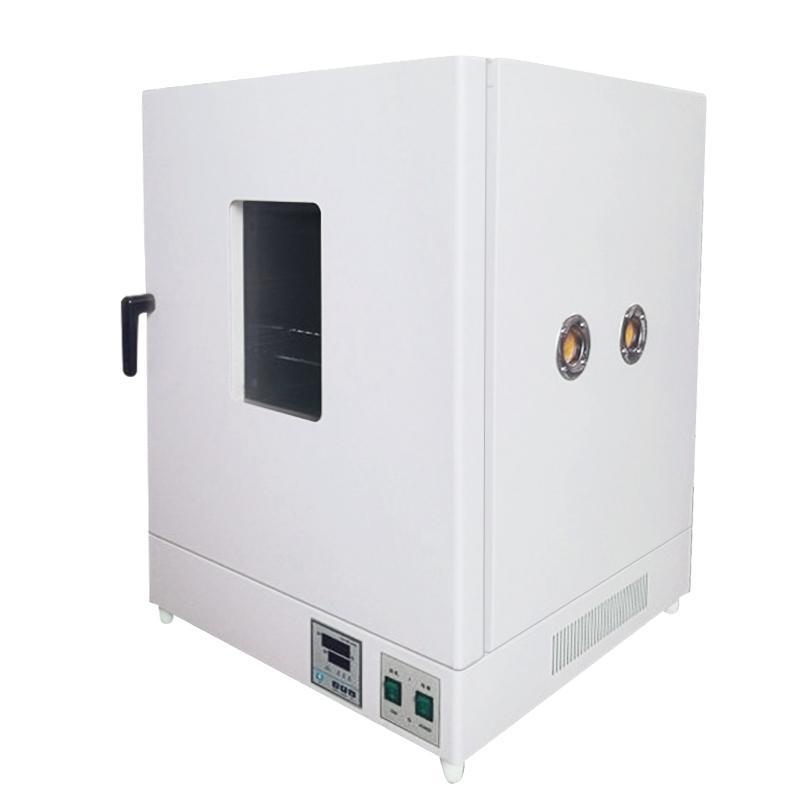

DHG-9140BE vertical blast drying oven consists of chamber body, heating system, electrical control system, air supply system, protection system, etc. It is used in industrial and mining enterprises, Universities & colleges, biology, Food processing, scientific research institutions, ** units and various laboratories for non-flammable, explosive and non-volatile materials drying, baking, melting wax and disinfection, sterilizing, etc.
Features
1. The box is made of equipment and the industry's manufacturing process, with smooth lines and beautiful appearance.
2. The studio material is stainless steel, the outer box material is Cold rolled steel plate, the product shell is sprayed with metal paint, the overall design is beautiful and generous, suitable for the color matching of the laboratory.
3. The shelves in the working room can be moved freely.
4. The thermal insulation material between the studio and the outer box is fine fiberglass thermal insulation cotton, the thermal insulation layer Film thickness > 70mm, good temperature insulation, high-performance edge structure, less heat loss of the liner.
5. High-performance sealing materials and rubber sealing structures are used between the door and the door frame, which has good sealing, high temperature resistance and ageing resistance.
6. The air duct in the box is composed of a double circulation system, a stainless steel multi-wing centrifugal wind wheel and a circulating air duct, which can fully convect the hot air and make the temperature in the box uniform to the greatest extent.
7. The heater is made of stainless steel electric heating tube, which heats up quickly and has a long service life.
8. Liquid crystal display, push-button, fuzzy PID control technology for micro-processing temperature control, program temperature control.
9. The temperature sensor adopts High Accuracy Platinum Resistance Sensor, Temperature resolution 0.1 ℃, Temperature Fluctuation +/- 1 ℃.
Principle
The drying oven generates heat through an electric heater placed at the bottom of the box. The heat is discharged vertically upward through the bottom air duct. After drying the product, it is sucked in by the centrifugal wind wheel at the bottom to form a reasonable air duct, which can fully convect the hot air and make the temperature in the box maximally uniform. The forced circulation convection air duct is adopted, which greatly improves the temperature uniformity of the drying oven.
Applications
Industrial and mining enterprises, Universities & colleges, Biology, Food processing, Scientific research institutions, ** units, various laboratories
Notice
* Only suitable for non-flammable, explosive and non-volatile materials drying, baking, melting wax and disinfection, sterilizing.
* Working environment requirements: environment temperature 5~ 30 ℃, relative humidity ≤ 80%, altitude ≤ 2000m.
* power requirements: AC220V +/- 10%, 50Hz +/- 1Hz.
