Overview

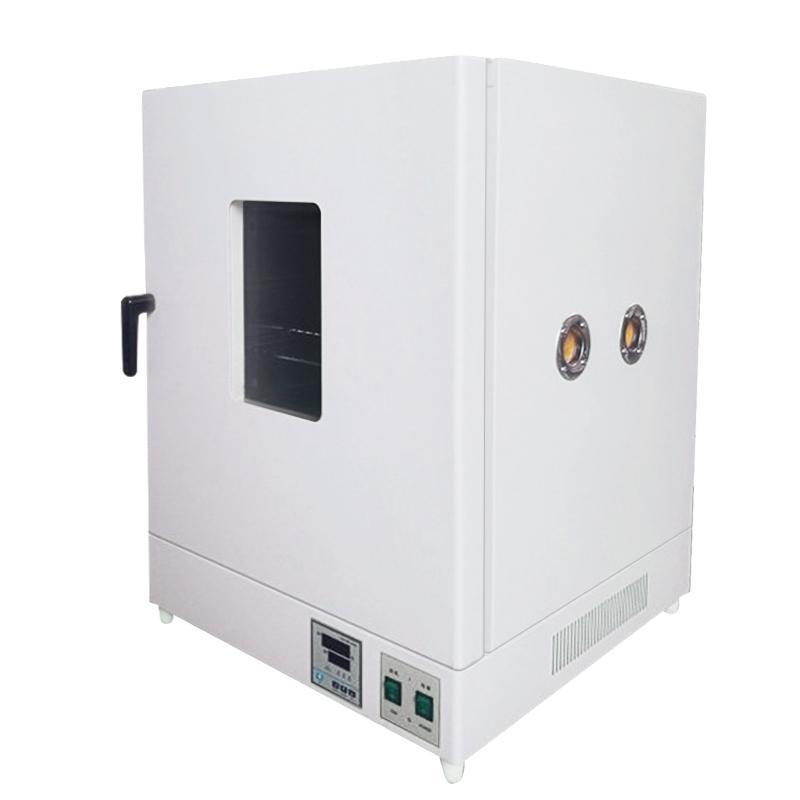

DHG-9240BE vertical blast drying oven is composed of chamber body, heating system, electrical control system, air supply system, protection system, etc. It is suitable for industrial and mining enterprises, Universities & colleges, biology, Food processing, scientific research institutions and various laboratories to carry out non-flammable, explosive and non-volatile materials drying, baking, melting wax, disinfection and sterilizing operations.
Features
1. The box is made of equipment, with excellent craftsmanship and smooth and beautiful lines
2. The studio is made of stainless steel, the outer box is Cold rolled steel plate, the shell is sprayed with metal paint, beautiful and generous
3. The shelves in the studio can be freely moved
4. Insulation layer using fine fiberglass insulation cotton, Film thickness > 70mm, excellent insulation performance
5. Doors and door frames are made of high-performance sealing materials and rubber sealing structures, with good sealing performance
6. Double circulation air duct system is used in the box, and the hot air is fully convected and the temperature is uniform
7. The heater adopts stainless steel electric heating tube, which heats up quickly and has a long service life
Principle
The drying oven adopts a forced circulation convection air duct system, and the heat of the electric heater placed at the bottom of the box is discharged vertically upward through the bottom air duct. After drying, it is sucked in by the centrifugal wind wheel at the bottom to form a reasonable air duct circulation, so that the hot air is fully convected and the temperature in the box is evenly distributed.
Applications
Industrial and mining enterprises, Universities & colleges, Biology, Food processing, Research institutions, various laboratories
Notice
Only suitable for drying, baking, melting wax, disinfection and sterilizing operations of non-flammable, explosive and non-volatile items
