Overview

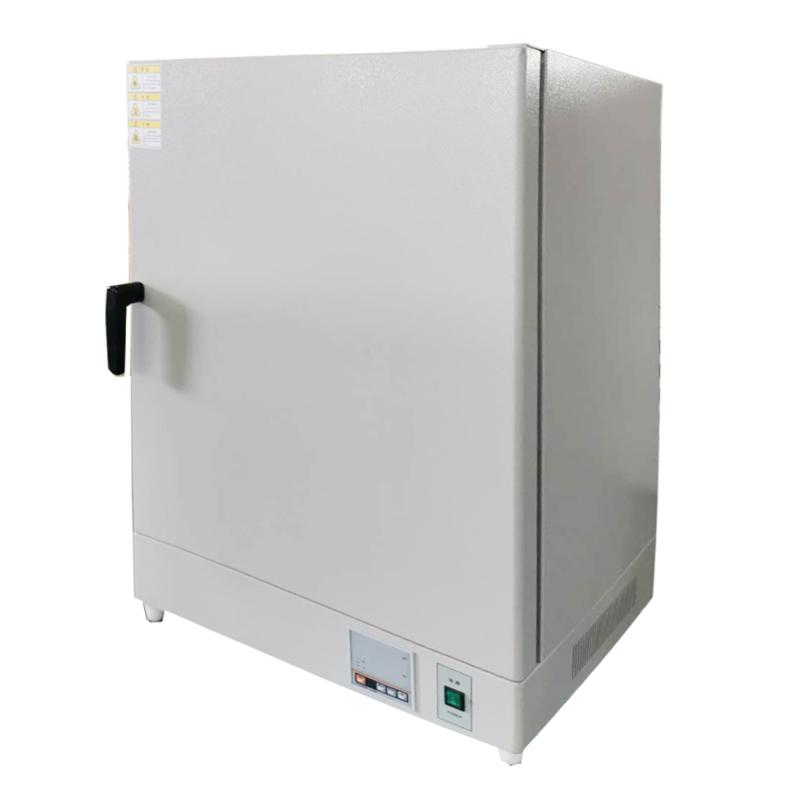

DHG-9140C high temperature drying oven is a equipment for industrial and mining enterprises, Universities & colleges, biology, Food processing, R & D institutions and various laboratories. It is used for drying, baking, waxing, disinfection and sterilizing of non-flammable and explosive items and non-volatile items. Specific uses include drying of Glass utensils, treatment of experimental samples, thermal deformation of food chemicals, heat hardening, heat softening, moisture removal, dry heat sterilization of utensils and utensils in bioengineering, and drying and aging of electronic components.
Features
1, design a reasonable air duct structure, fanless natural convection cycle design to ensure uniform indoor temperature.
2. Stainless steel studio, high-quality steel plate electrostatic spray shell, stainless steel polished electrolysis shelf, safe, convenient, novel and beautiful.
3. The temperature controller adopts high-speed, high-performance CPU processing chip, High Sensitivity, High Accuracy Platinum Resistance Sensor, and has fixed programming control functions of timing boot, timing shutdown, and fixed value work; the timing time is up to 9999 minutes.
4, the temperature control instrument comes with Sensor fault alarm, upper and lower limit temperature deviation alarm, over-temperature alarm, parameter memory temperature display correction, self-diagnostic dynamic control technology.
Principle
The high temperature drying oven conducts thermal circulation through natural convection, and the temperature controller uses PID microprocessor and platinum resistance Sensor to precisely control the temperature to realize functions such as drying, baking, and disinfection.
Applications
Industrial and mining enterprises, Universities & colleges, Biology, Food processing, R & D institutions, various laboratories
Steps
1. Connect the power supply.
2. Set the temperature controller parameters, including temperature, timing, etc.
3. Place items in the workplace.
4. Start the equipment for drying, baking or disinfection operations.
5. Turn off the device after the operation is completed.
Notice
• Only for non-flammable, explosive and non-volatile items.
• Working environment temperature should be + 5~ 30 ° C, relative humidity < 80%, altitude < 2000m.
• Power supply voltage is AC220V 50Hz before use.
• Pay attention to the alarm function of the temperature controller and deal with abnormal situations in a timely manner.
• Avoid overloading and ensure safe operation.
