Overview

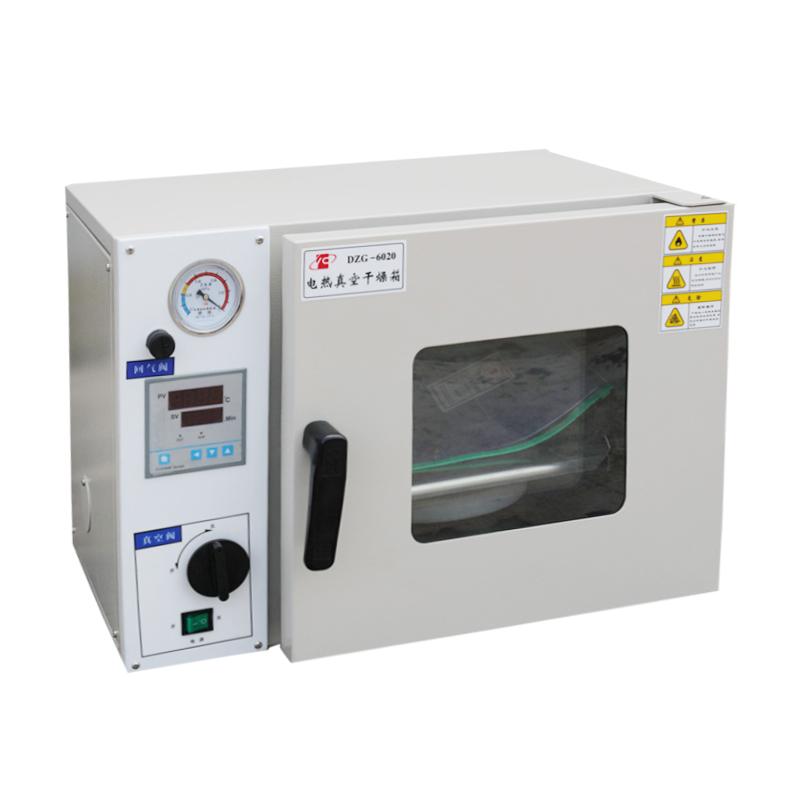

DZG-6020 Vacuum oven is a factory direct sales desktop vacuum drying equipment, suitable for powder drying and baking treatment under vacuum conditions. This product is particularly suitable for drying heat sensitive, easy analysis, easy oxidation substances and complex ingredients, and can meet the needs of industrial and mining enterprises, Universities & colleges, biological products, Food processing, agricultural research, chemical industry and various laboratories.
Features
1. The box door is closed and elastic and adjustable, and the integrally formed silicone rubber door sealing ring ensures a high vacuum in the box
2. Temperature Control System with High Performance CPU Processing Chip and High Sensitivity and High Accuracy Platinum Resistance Sensor
3. Sensor fault alarm, over-temperature alarm, self-diagnostic dynamic control, temperature display correction, parameter memory and timing function up to 9999 minutes
4. Independent temperature limit control alarm system, automatically interrupts work beyond the limit temperature, providing double insurance
Principle
Vacuum ovens reduce the boiling point of substances by creating a vacuum environment in a confined space, allowing water and solvents to evaporate at lower temperatures. The microprocessor temperature control system using four-week heating and fuzzy PID control technology, combined with the High Accuracy Platinum Resistance Sensor, achieves precise temperature control and stable drying effect.
Applications
Industrial and mining enterprises, Universities & colleges, Biological products, Food processing, Agricultural research, Chemical industry, various laboratories
Steps
1. Place the items to be dried on the shelf in the box
2. Adjust the closure tightness of the box door
3. Set the required temperature and time parameters
4, start the equipment to start the drying process
5. Turn off the equipment according to the procedure after drying
Notice
• Ensure that the environment temperature is within the range of 5~ 30 ° C before use
• The relative humidity should not exceed 80%
The altitude should not exceed 1500m
• The power requirements are AC220V + 10%, 50Hz +/- 1Hz
• Operating temperature range is room temperature + 15 ° C~ 200 ° C
• Note that the vacuum should be kept at < 133Pa
• When the temperature exceeds the limit, the device will automatically interrupt work
• Regularly check the door sealing performance
