Overview

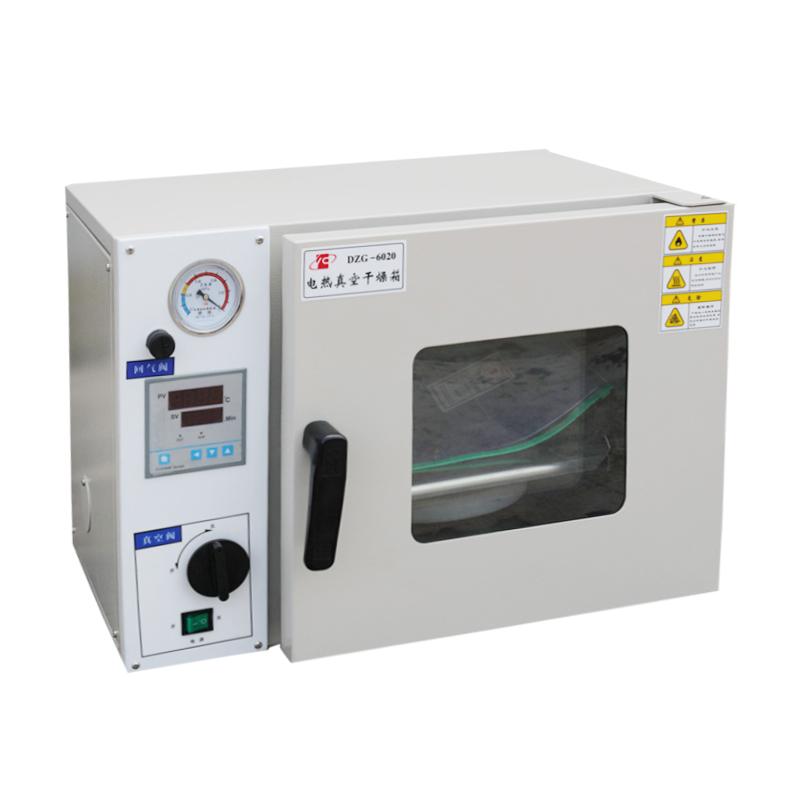

DZG-6090 Vacuum oven is a factory-sold desktop vacuum drying equipment for powder drying and baking under vacuum conditions. The equipment is particularly suitable for drying heat-sensitive, easy-to-analysis, easy-to-oxidation substances and complex components.
Features
1. The closure of the box door is elastic and adjustable, and the integrally formed silicone rubber door sealing ring ensures a high vacuum in the box
2. Temperature Control System with High Performance CPU Processing Chip and High Accuracy Platinum Resistance Sensor
3. Sensor fault alarm, over-temperature alarm, self-diagnostic dynamic control, temperature display correction, parameter memory and up to 9999 minutes timing function
4. Independent temperature limit control alarm system, automatically interrupts work beyond the limit temperature, providing double insurance
Principle
The equipment reduces the pressure in the box to below 133Pa through the vacuum system to form a vacuum environment, and at the same time heats and dries the material through surrounding heating. The microprocessor using fuzzy PID control technology precisely controls the temperature to prevent heat-sensitive substances from analyzing oxidation at high temperatures.
Applications
Industrial and mining enterprises, Universities & colleges, Biological products, Food processing, Agricultural research, Chemical industry, various laboratories
Steps
1. Put the material to be dried into the box
2. Adjust the closure tightness of the box door
3. Set the required temperature and time parameters
4. Start the vacuum system and heating system
5. Monitor the drying process
6. Automatically stop working after reaching the set time
Notice
• The working environment temperature should be kept within the range of 5~ 30 ° C
• environment relative humidity shall not exceed 80%
• The altitude of use should not exceed 1500m
• The power requirements are AC220V +/- 10%, 50Hz +/- 1Hz
• When the temperature exceeds the limit, the device will automatically interrupt work
• Confirm that the door is well sealed before use
