Overview

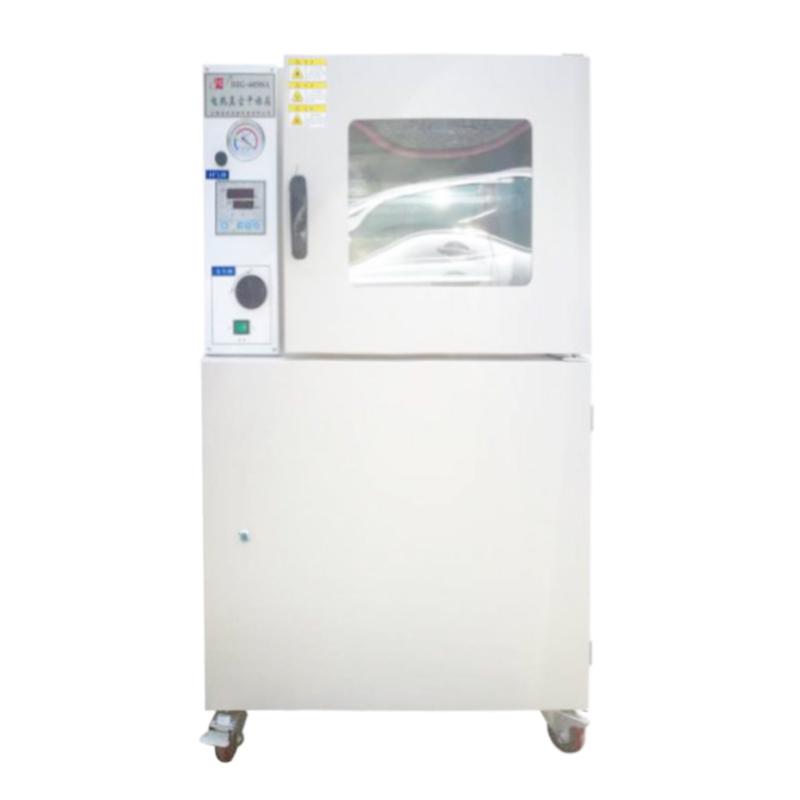

DZG-6210 Vacuum oven is a factory direct vertical vacuum drying equipment, suitable for powder drying and baking treatment under vacuum conditions. This product is particularly suitable for drying heat sensitive, easy analysis, easy oxidation substances and complex ingredients.
Features
1. Rectangle studio design to maximize effective volume
2. The box door is closed and elastic and adjustable, and the integrally formed silicone rubber door sealing ring ensures high vacuum
3. Temperature Control System with High Performance CPU Processing Chip and High Accuracy Platinum Resistance Sensor
4. Sensor fault alarm, over-temperature alarm, self-diagnostic dynamic control, temperature display correction, parameter memory and up to 9999 minutes timing function
5. Optional inert gas port and inert gas flow meter
6. Tempered Bulletproof Double-decked Glass Door, Clear Observation of Objects in the Workroom
Principle
Vacuum oven reduces the pressure in the box through the vacuum system, and heats and dries in a vacuum environment. Using four-week heating mode, the temperature is detected by the High Accuracy Platinum Resistance Sensor, and the temperature is precisely adjusted by the microprocessor based on the fuzzy PID control technology to realize the efficient drying of the material under low temperature conditions.
Applications
Industrial and mining enterprises, Universities & colleges, Biological products, Food processing, Agricultural research, Chemical units, various laboratories
Steps
1. Put the items to be dried into the studio
2. Adjust the closure tightness of the box door
3. Set the required temperature and time parameters
4. Start the vacuum system to evacuate
5. Turn on the heating function for drying
6. Turn off the equipment and take out the items after drying is completed
Notice
• The operating environment temperature should be within the range of 5~ 30 ° C
• environment relative humidity should not exceed 80%
• The altitude should not exceed 1500m
• The power requirements are AC220V +/- 10%, 50Hz +/- 1Hz
• Vacuumpump needs to be purchased separately for use
• Pay attention to over-temperature alarm and Sensor fault prompt
• Make sure the door is well sealed before use
