Overview

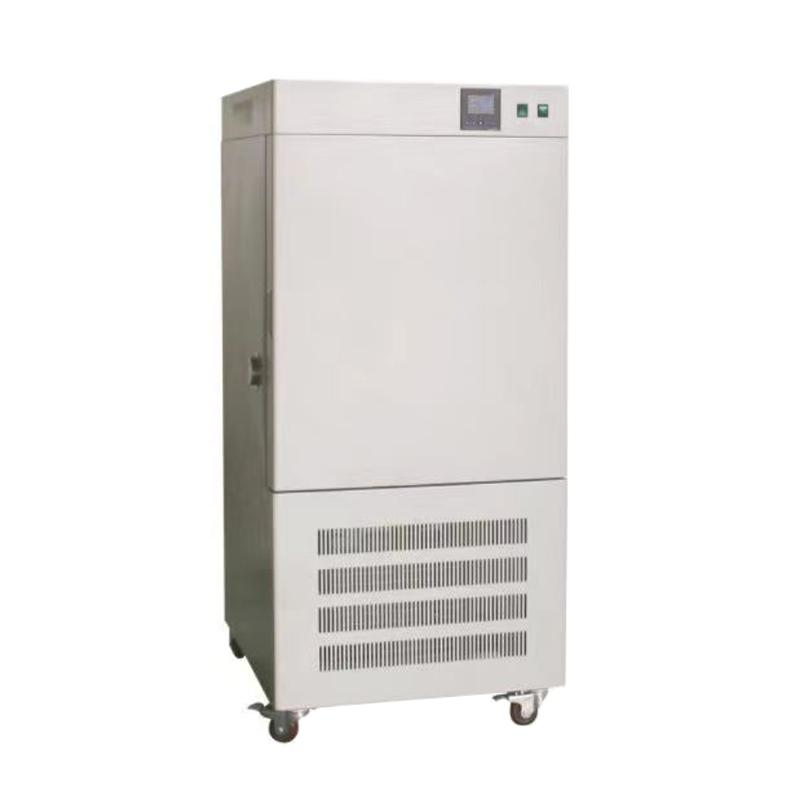

SHP-80DA low temperature biochemistry cultivating box is a special low temperature equipment sold directly by the factory, with a volume of 80L, suitable for environmental testing such as foster serum, medicine and microorganisms. The equipment is made of high-quality materials to ensure that the temperature in the box is equilibrated and stable, the working environment temperature is 5-35 ℃, Temperature range is -20~ 60 ℃, Temperature resolution 0.1 ℃, Temperature Fluctuation +/- 1.5 ℃, Power supply voltage 220V 50HZ, Power 650W.
Features
1. The shell is processed by high-quality A3 steel plate numerical control machine tool, and the surface is sprayed with plastic treatment, which is smooth and beautiful; the liner is SUS304 high-quality stainless steel plate.
2. The thermal insulation material is high-density fiberglass cotton (Film thickness 100mm) to prevent indoor temperature conduction to the outside and ensure that the temperature in the box is equilibrated and stable.
3. Stirring system adopts long axis fan motor and stainless steel multi-wing impeller to realize forced convection vertical diffusion circulation, so that the temperature and humidity are uniform and stable.
4. Double-decked high and low temperature resistant high tensile sealing strip is used between the door and the box to ensure that the test area is airtight.
Principle
Stir system forced convection vertical diffusion cycle, so that the temperature and humidity in the box uniform distribution. Insulation material effectively isolate the internal and external temperature, to ensure that the temperature equilibrate stability, suitable for low temperature environment foster test.
Applications
Environmental protection, agricultural and animal, drug testing, aquatic products, etc. Research, college experiments and production departments
Steps
1. Connect the power supply and ensure that the voltage is 220V 50Hz.
2. Set the required Temperature range (-20~ 60 ℃) and Timer Range (1~ 9999min).
3. Start the equipment and the Stir system runs automatically to achieve temperature and humidity cycling.
4. Monitor temperature fluctuations to ensure they are within the range of +/- 1.5 ° C.
Notice
• Ensure that the working environment temperature is within the range of 5-35 ° C.
• Regularly check the sealing strip to ensure that the test area is airtight.
• Avoid overloading, the standard shelf is 2.
• Power supply voltage matching before use to prevent equipment damage.
