Overview

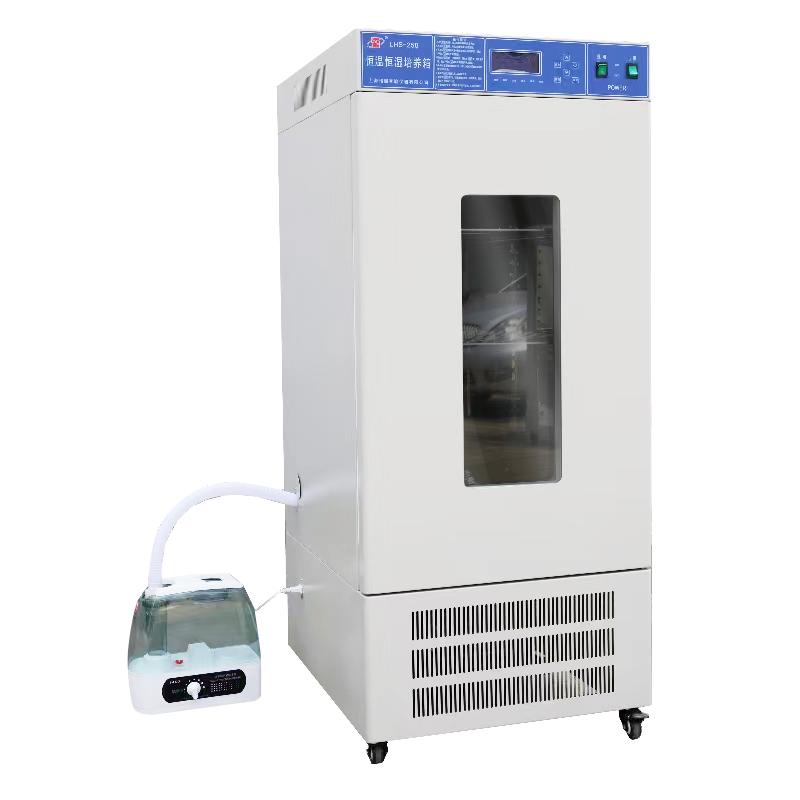

Intelligent Constant Temperature and Humidity Chamber LHS series has a temperature and humidity control system, which can provide various environment simulation conditions required for industrial research and biotechnology testing. Model LHS-450 Temperature range 5-55 ° C, humidity control range 50-90% RH, with High Accuracy Temperature and Humidity Control.
Features
1. Using 304 mirror stainless steel liner, the surrounding semi-circular arc is easy to clean, and the Shelf interval in the box is adjustable.
2. Using sonic humidification, reliable humidification and uniform humidity.
3. High Accuracy, large capacity humidity generator, humidity control occurs quickly, high accuracy, small fluctuation.
4. Use imported Humidity Sensor to avoid the trouble caused by frequent replacement of wet and dry belts.
5. With 30-stage temperature and humidity programmable functions.
6. Equipped with an independent temperature limit alarm system, it will automatically interrupt when the temperature exceeds the limit to ensure the safe conduct of the experiment (optional).
7. Can be equipped with a printer or RS485 interface, used to connect to a printer or computer, and can record changes in humidity parameters (optional).
Principle
Through the temperature and humidity control system, the equipment adopts acoustic humidification technology and imported humidity Sensor to achieve fast and accurate temperature and humidity adjustment, providing stable environment simulation conditions for the experiment.
Applications
Industrial research, biotechnology testing
Steps
1. Turn on the power supply AC220V 50HZ.
2. Set the required temperature and humidity parameters (Temperature range 5-55 ° C, humidity control range 50-90% RH).
3. Adjust the Shelf interval in the box as needed.
4. Start the equipment operation and monitor the temperature and humidity changes.
Optional accessories such as printer or RS485 interface to record data.
Notice
The working environment temperature should be kept at + 5~ 35 ℃.
• The performance parameter test is carried out under no-load conditions, the environment temperature is 20 ° C, and the environment humidity is 50% RH.
• Independent temperature limit alarm system is an optional function, please confirm the configuration if you need to use it.
• Avoid replacing the Humidity Sensor frequently to keep the device running stably.
