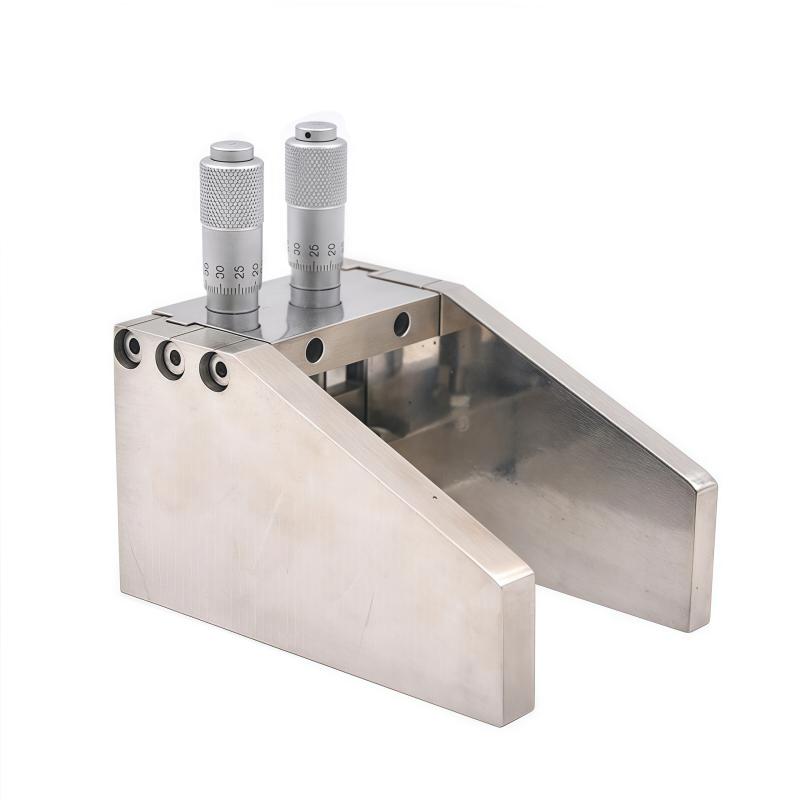

JINGKELIAN KTQ-150 adjustable coating Applicator 150mm application width +/- 2μm accuracy

Name: JINGKELIAN KTQ-150 adjustable coating Applicator 150mm application width +/- 2μm accuracy
Brand: JingKeLian
SKU: NB004446
Price: 276.0 USD
Availability: InStock

$ 276.00Ex works

Application width 150mm, wet film thickness adjustment range 0-3500μm, accuracy of +/- 2μm, accurate control of drawdown blade clearance through the differentiator, adjusted every 10 microns, stainless steel structure is stable.

Model

Get Quote

Category : Film Applicator

Brand : JingKeLian

SKU : NB004446

Service :The delivery and service By NBCLab.Com

Overview

The JINGKELIAN KTQ-150 adjustable coating applicator is one of the Micrometer Film Applicator series, with an application width of 150mm and a film accuracy of +/- 2μm. It can be freely adjusted in the film thickness range of 0~ 3500 μm, and the drawdown blade gap can be adjusted every 10 μm.

Features

1. adjustable design, film thickness in the range of 0~ 3500 μ m freely adjusted 2. High Accuracy Control, film accuracy of +/- 2μm 3. Fine-tuning function to precisely adjust the drawdown blade clearance every 10 microns 4. Stainless steel material, sturdy and durable 5. Compact design, Dimension 120 * 115 * 105mm, Net weight only 450g

Principle

Micrometer Film Applicator by adjusting the film applicator above the two differentiators, can be adjusted in the direction below the drawdown blade to control the gap, i.e. the thickness of the final coating.

Steps

1. Adjust the two differentiators above the film applicator 2. Adjust the drawdown blade control gap up and down 3. Set the required film thickness 4. Spreader operation

Type
adjustable
wet film thickness
0~3500μm
application width
150mm
accuracy
±2μm
material
stainless steel
Size
120*115*105mm
Net weight
450g
