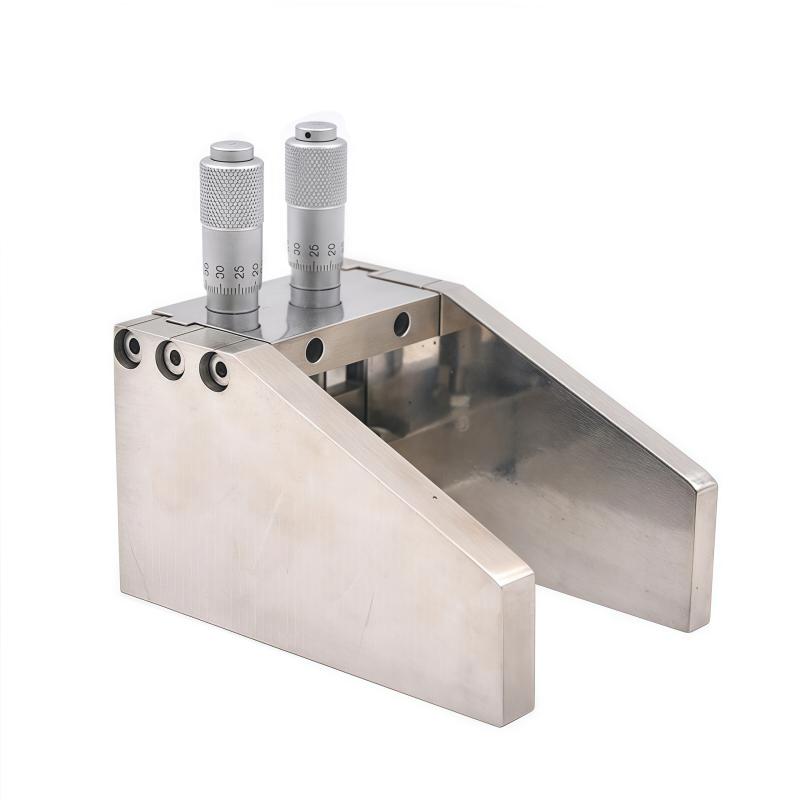

JINGKELIAN KTQ-100 Adjustable coating Applicator wet film thickness 0-3500μm application width 100mm

Name: JINGKELIAN KTQ-100 Adjustable coating Applicator wet film thickness 0-3500μm application width 100mm
Brand: JingKeLian
SKU: NB004447
Price: 256.0 USD
Availability: InStock

$ 256.00Ex works

Made of stainless steel, application width 100mm, wet film thickness adjustment range 0-3500μm, accuracy of +/- 2μm, through the differentiator can precisely control the drawdown blade gap to achieve fine Spreader.

Model

Get Quote

Category : Film Applicator

Brand : JingKeLian

SKU : NB004447

Service :The delivery and service By NBCLab.Com

Overview

JINGKELIAN KTQ-100 adjustable coating applicator is an adjustable film equipment with an application width of 100mm and a film accuracy of +/- 2μm, which can be freely adjusted in the film thickness range of 0~ 3500 μm, and the drawdown blade gap can be adjusted every 10 μm.

Features

1. adjustable design, film thickness in the range of 0~ 3500 μ m freely adjusted 2. High Accuracy film with accuracy of +/- 2μm 3. Fine adjustment of drawdown blade clearance in units of 10 microns 4. Made of stainless steel 5. Compact design, Dimension 120 * 115 * 105mm, Net weight 450g

Principle

By adjusting the film applicator above the two differentiators, the vertical direction below the drawdown blade to control the gap, thereby controlling the thickness of the final coating.

Notice

• Please adjust the differentiator according to the operating specifications • Clean and maintain in time after use • Avoid violent collisions and falls Store in a drying environment

Type
adjustable
wet film thickness
0~3500μm
application width
100mm
accuracy
±2μm
material
stainless steel
Size
120*115*105mm
Net weight
450g

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
