Overview

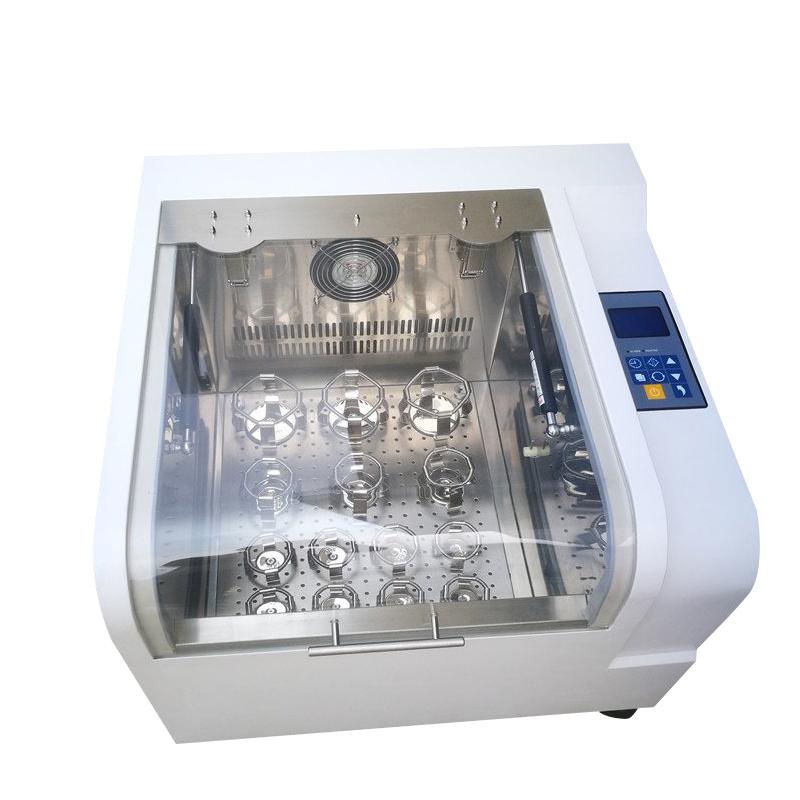

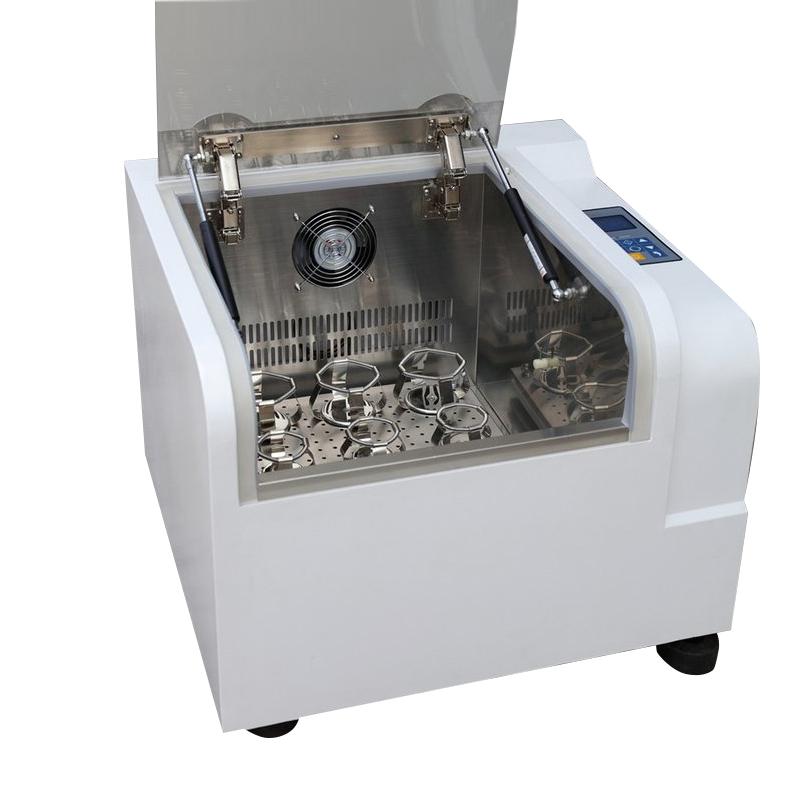

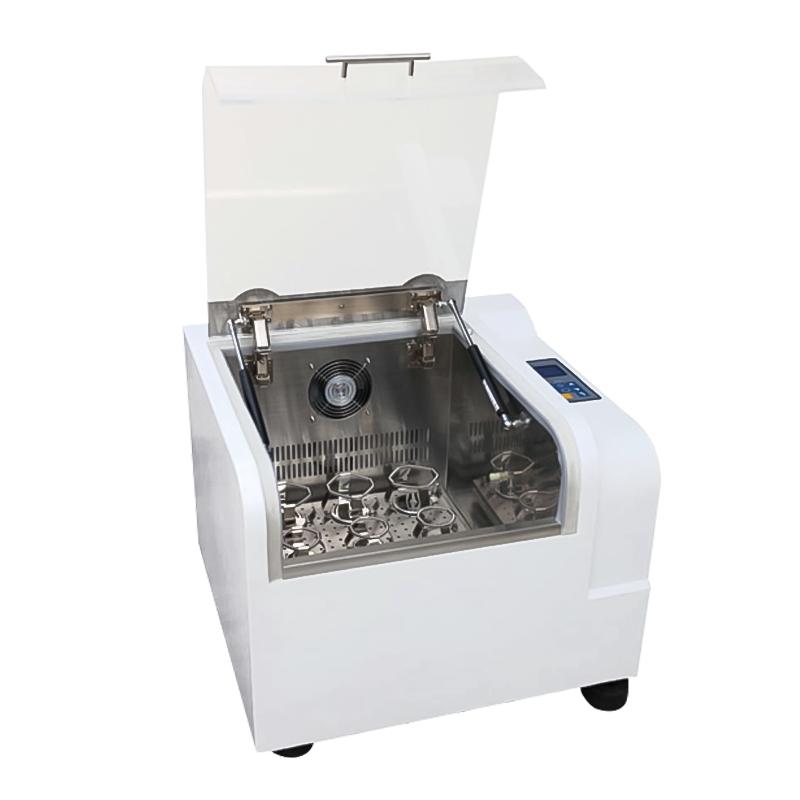

PY-200 desktop thermostatic Shaker is a multi-functional scientific research equipment that integrates thermostatic incubator and Shaker. It is intelligently controlled by PLD microcomputer and has precise temperature and rotational speed control functions. The product is widely used in cell fostering, fermentation, hybridization, biochemistry, and scientific research on enzymes and cell tissues, making it an ideal tool in the field of life sciences.
Features
1. Set thermostatic incubator and Shaker in one, with more functions and less investment
2. The host emits an audible alarm when the temperature is abnormal
3. Equipped with a self-stop protection device to protect the operator's safety
4. Electronically controlled closed adjustable cycle heating and cooling system, silent fan design
5. Streamlined luxury machine shape, large screen with window for easy observation
6. Equipped with call recovery function, not affected by power interruption
7. With a powerful and fast heating and cooling system
8. Equipped with an air pressure regulating valve, making the door more flexible and lightweight
9. A wide variety of detachable rockers and stainless steel spring flask clips can be combined at will
10. Mirror stainless steel liner, clean and bright
Principle
PY-200 desktop thermostatic Shaker realizes accurate temperature and speed adjustment through PLD microcomputer intelligent control system. The equipment adopts electronically controlled closed adjustable cycle heating and cooling system, maintains thermostatic state through forced convection, and realizes uniform oscillation of the sample through rotary/multi-dimensional drive.
Applications
Scientific research on cell fostering, fermentation, hybridization, biochemistry, enzymes and cell tissue, life sciences
Steps
1. Power on Ac220v +/- 10% 50~ 60HZ
2. Set the required temperature (4 ℃~ 60 ℃) and swirl/spin frequency (20~ 300rpm) through the LCD LCD display
3. Choose the right rocker and flask clip combination as needed
4. Start the device after placing the sample
5. Real-time observation of foster objects through a large screen window
6. Turn off the power after use
Notice
• Power supply voltage meets the requirements of Ac220v +/- 10% 50~ 60HZ
• Do not open the cover at will when the equipment is running, so as not to trigger the automatic stop protection device
• Temperature settings beyond the range of 4 ° C to 60 ° C may affect equipment performance
• The swirl/spin frequency setting should be within the range of 20~ 300rpm
• Net weight of the equipment 75kg, pay attention to safety when handling
• Regularly clean the mirror stainless steel liner to keep it tidy
• In case of power interruption, the device has an incoming call recovery function and can automatically continue to work
