Overview
MS101 Halogen moisture meter is a professional moisture measurement equipment of TSINGTAO TOKY brand. The instrument adopts a color TFT large-screen touch screen and can be widely used in the production and experimental process of plastics, chemicals, food, grain, feed, seeds, rapeseed, tea, and Spinning & weaving, agriculture, forestry, paper, rubber and other industries.
Features

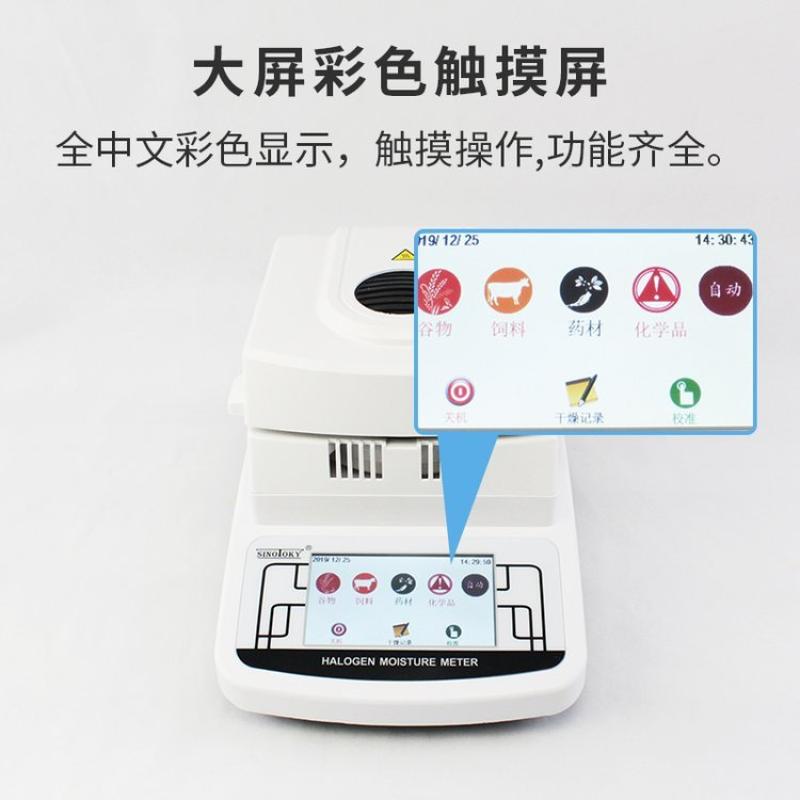

1. Color TFT large-screen touchscreen, providing rich weighing and moisture display information for easy reading
2. Can calibrate weight, temperature, clock, with manual, timing, automatic Measurement mode, heating end buzzer prompt
3. High-mass halogen lamp, rapid heating, uniform heating, rapid sample testing
4. High Accuracy Insulated Sensor, Data Collection, Temperature Reliable, Can Effectively Ensure True and Accurate Sample Data

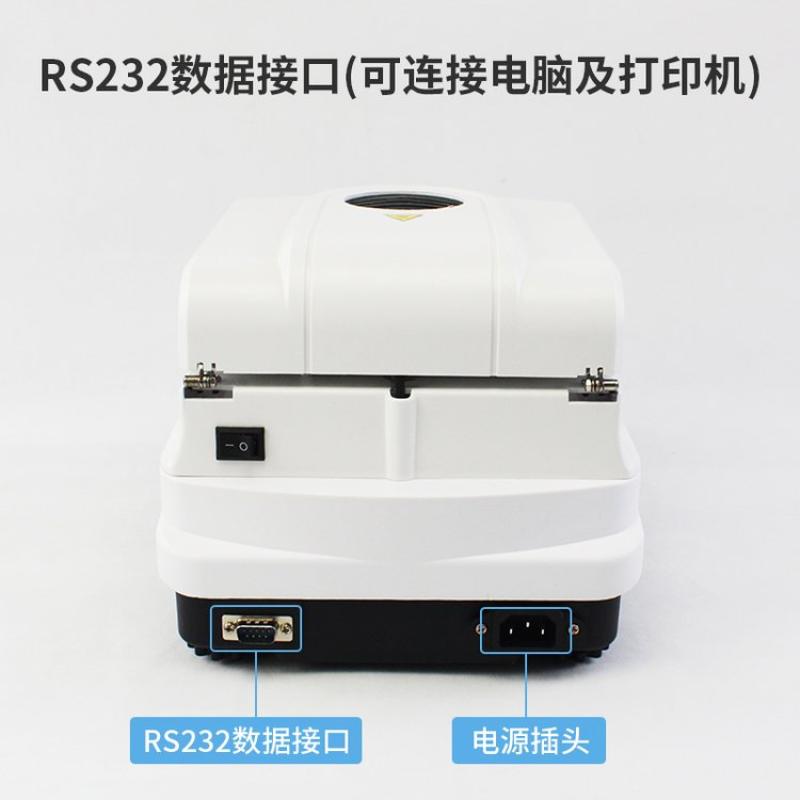

5. Built-in R232 output interface, can be connected to computers, printers and other external devices
Principle
The instrument heats the sample through a halogen lamp, collects temperature data using a High Accuracy Insulated Sensor, and measures the weight change of the sample through a weighing system to calculate the moisture content. The heating temperature can be adjusted in the range of 60 ° C to 200 ° C, and supports three measurement ending methods: timing, automatic and manual.
Applications
Plastic, chemical, food, grain, feed, seeds, rapeseed, tea, Spinning & weaving, agriculture and forestry, paper, rubber
Standards
Precision ≤ 0.5% (sample weight ≥ 2g), temperature adjustment tolerance +/- 1 ℃
Steps
1. Turn on and calibrate weight, temperature, clock
2. Select Measurement mode (Manual, Timed or Automatic)
3. Set the heating temperature (60 ° C to 200 ° C) and heating time (0-99 minutes).
4. Place the sample and start the assay
5. After heating, the buzzer prompts to read the moisture content result.
Notice
• Sample weight should be ≥ 2g to ensure measurement Precision
• Heating temperature setting should be within the range of 60 ° C to 200 ° C
• Timer Range should be between 0-99 minutes
• Need to calibrate weight, temperature and clock before use
• RS232 interface is required when connecting external devices
