Overview

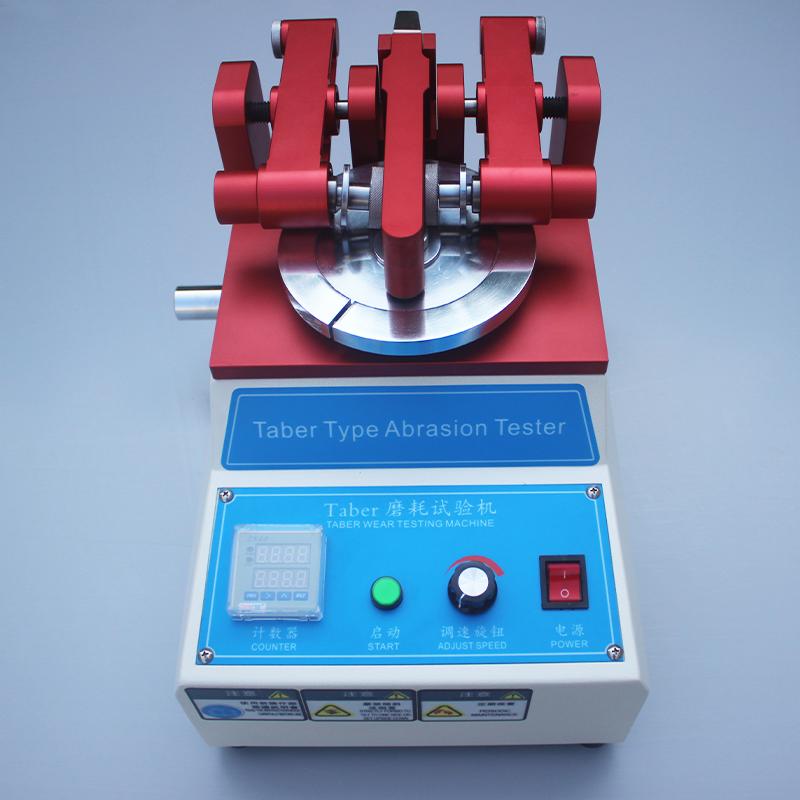

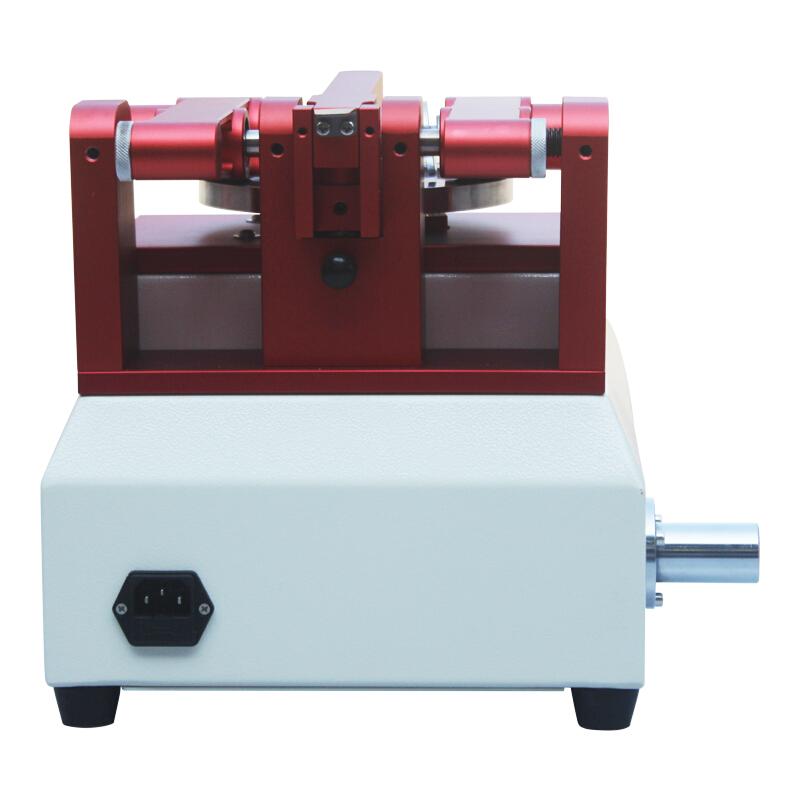

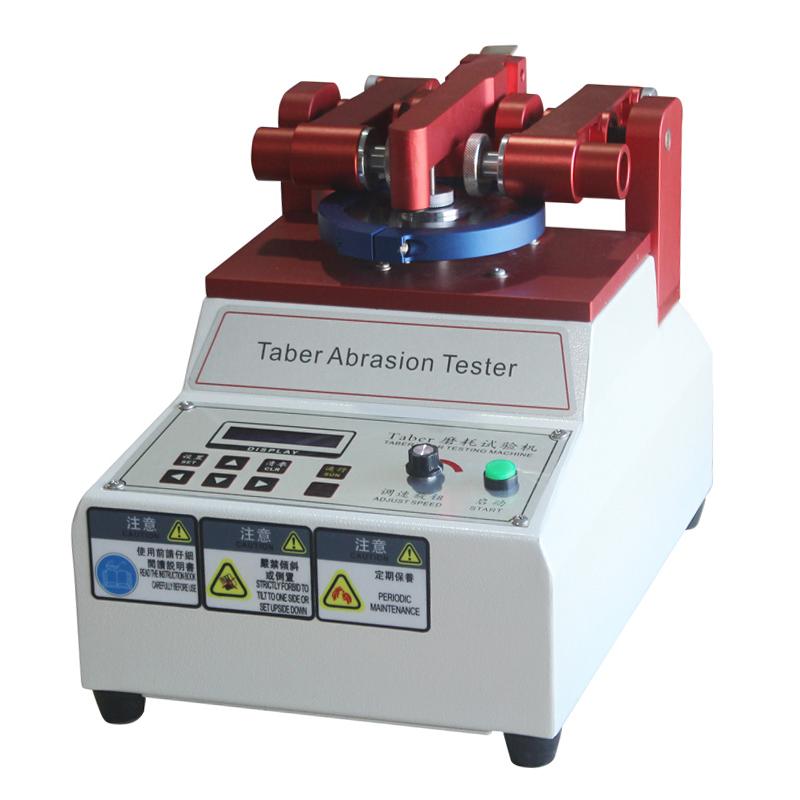

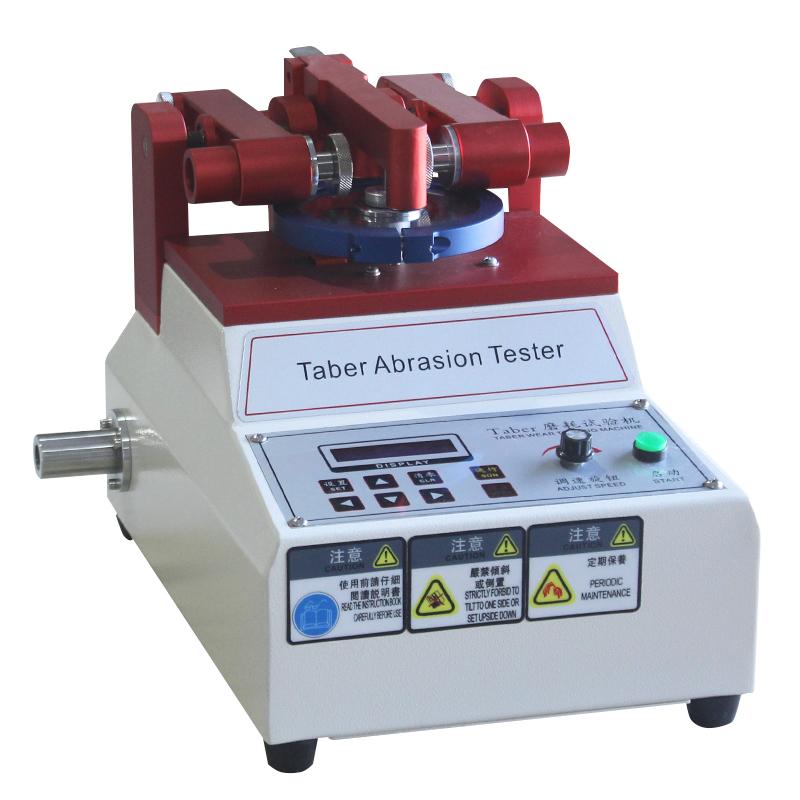

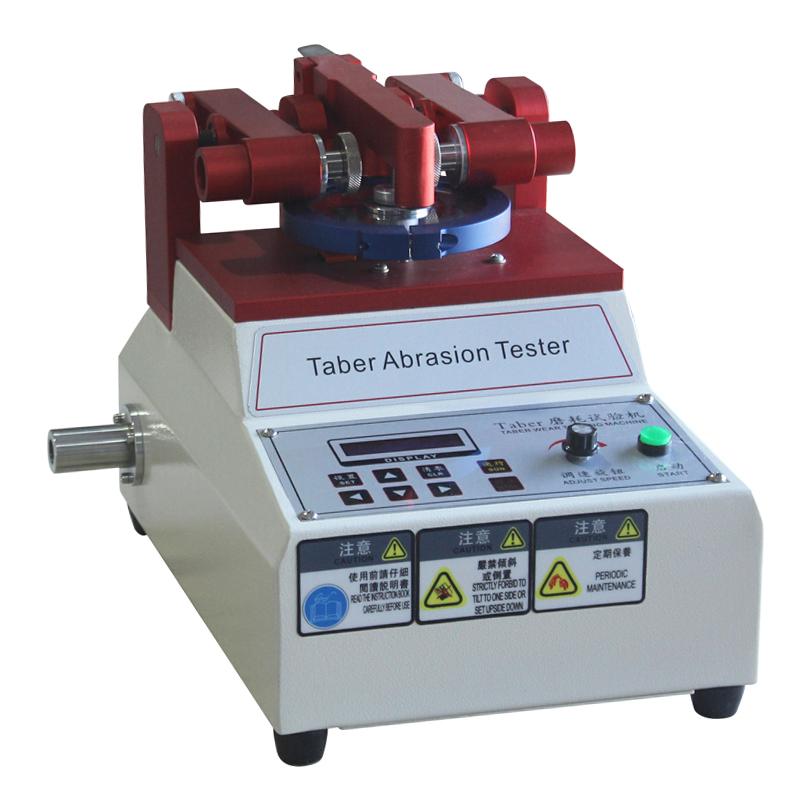

Taber type Wear resistance tester is a factory direct sales product, model NBC-Taber5612. The equipment uses a standard cutter to cut the specimen, uses the specified type of abrasive wheels and loads a certain weight for abrasion test, and observes the condition of the specimen or calculates the weight difference after reaching the specified number of revolutions. The abrasion index is calculated as: abrasion loss weight/test rotation number × 1000.
Features
1. Electronic display 6-digit counter, automatic shutdown function
2. Provide a variety of load options: 250g, 500g, 1000g
3. Test disc speed adjustable: 60, 70 rpm or specified
4. Standard H-18 abrasive wheels, Miscellaneous abrasive wheels are optional

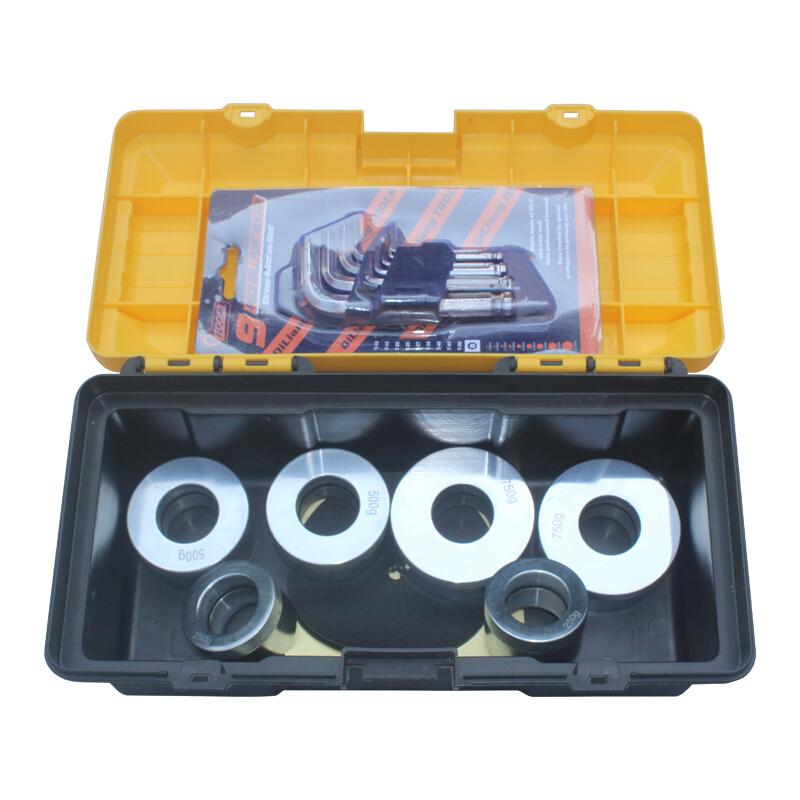

5. Complete accessories, including test piece cutter, wrench, abrasive wheels and yarn paper
Principle
Film thickness 3mm by standard cutter cut the outer diameter of 100mm, inner diameter of 8mm, using the specified type of abrasive wheels abrasion under a specific load. Automatic stop after reaching the preset number of revolutions, by observing the test piece after grinding condition or calculating the weight difference before and after the test to evaluate the material wear performance.
Applications
Fabric, Plywood, Floor Tiles, Glass, Natural Rubber
Standards
DIN-53754、ASTM-D3884
Steps
1. Use a standard cutter to cut the specimen
2. Install the specified type abrasive wheels and set the load
3. Set the number of test revolutions
4. Start the equipment for abrasion test
5. Automatic shutdown after reaching the number of revolutions
6. Take out the specimen to observe the condition or calculate the weight difference
Notice
• Abrasive wheels come standard with H-18, Miscellaneous models need to be purchased separately
• Specimen specifications must meet the requirements of outer diameter 100mm, inner diameter 8mm, Film thickness 3mm
• Power supply voltage AC220V 50HZ
• Different materials need to choose the corresponding abrasive wheels model
• Make sure the load setting is correct before the test
