AISRY NBC-5603 Tacking ball Tester, adhesive tape label Initial viscosity Tester

Name: AISRY NBC-5603 Tacking ball Tester, adhesive tape label Initial viscosity Tester
Brand: AISRY
SKU: NB044540
Price: 237.0 USD
Availability: InStock

$ 237.00Ex works

The equipment tests the initial Tack by short contact between steel ball and adhesive tape sample at a small pressure, adjustable tilt angle 0~ 60 °, rolling ball range 1/32 inch to 1 inch, suitable for a variety of material adhesion evaluation.

Model

NBC-5603

Get Quote

Category : Tack Tester

Brand : AISRY

SKU : NB044540

Service :The delivery and service By NBCLab.Com

Overview

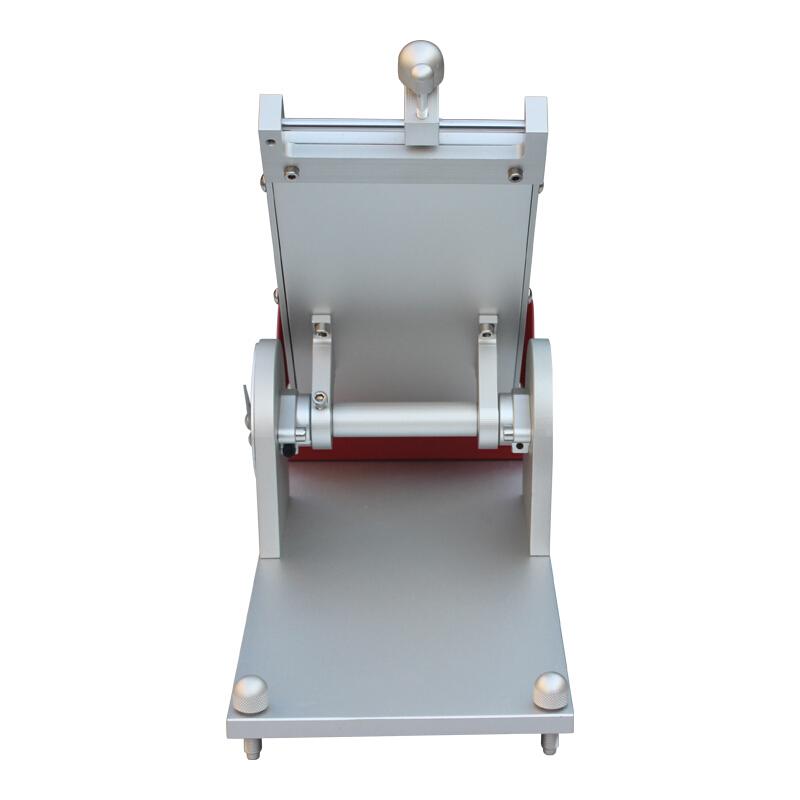

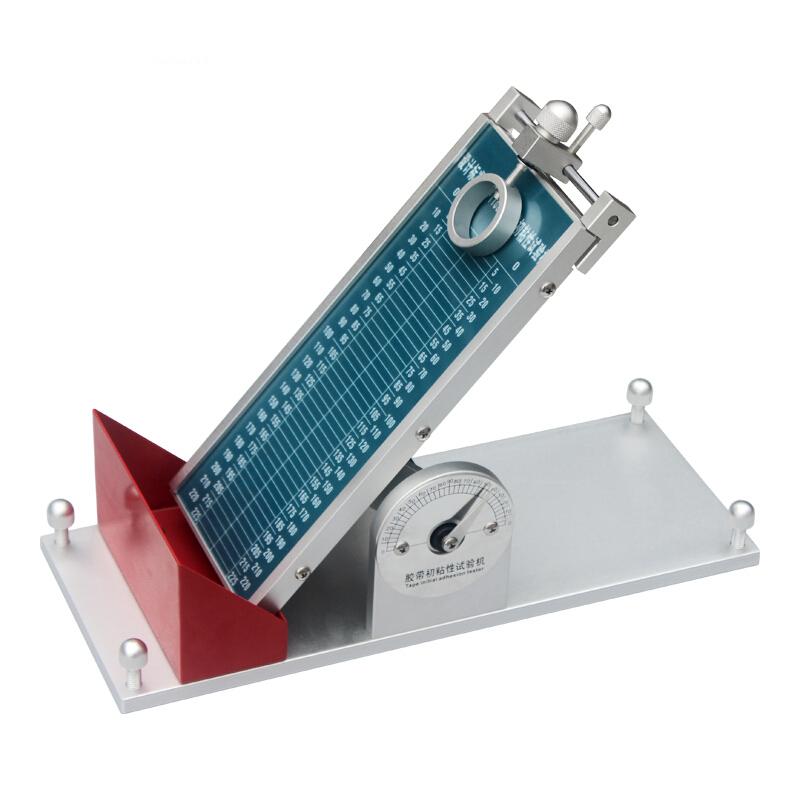

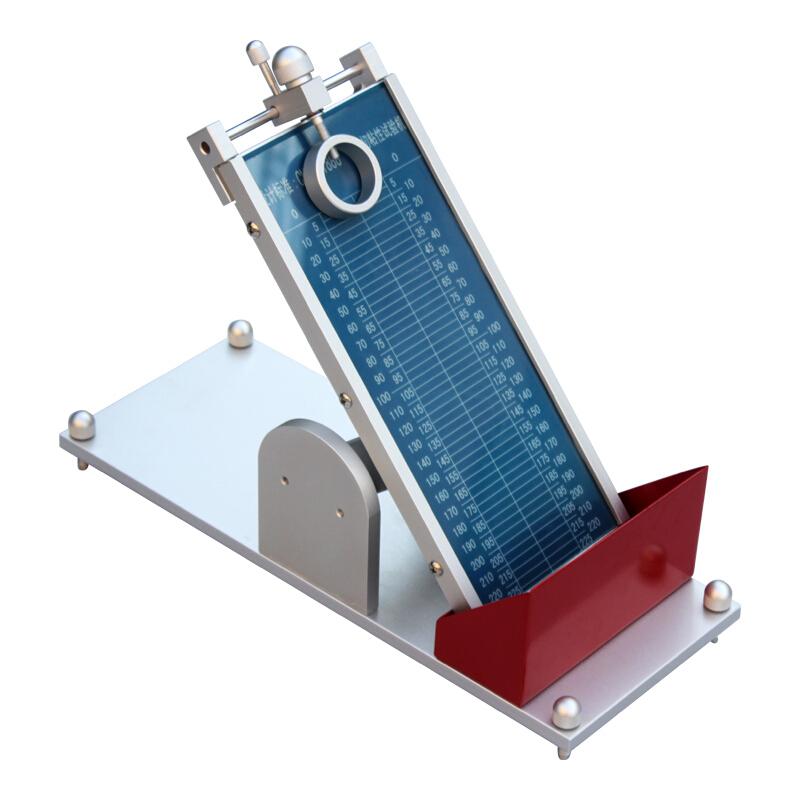

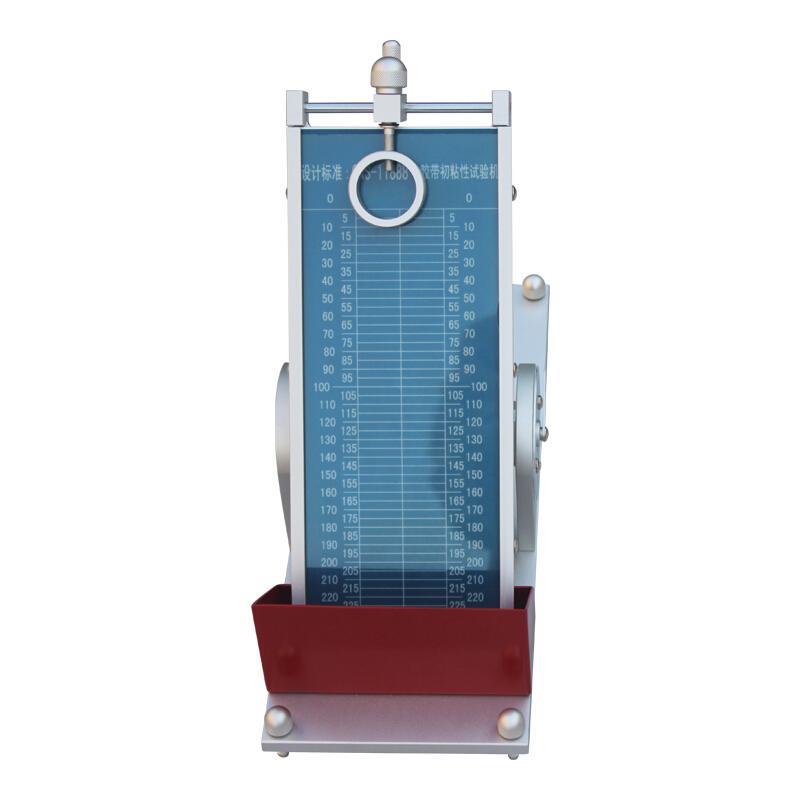

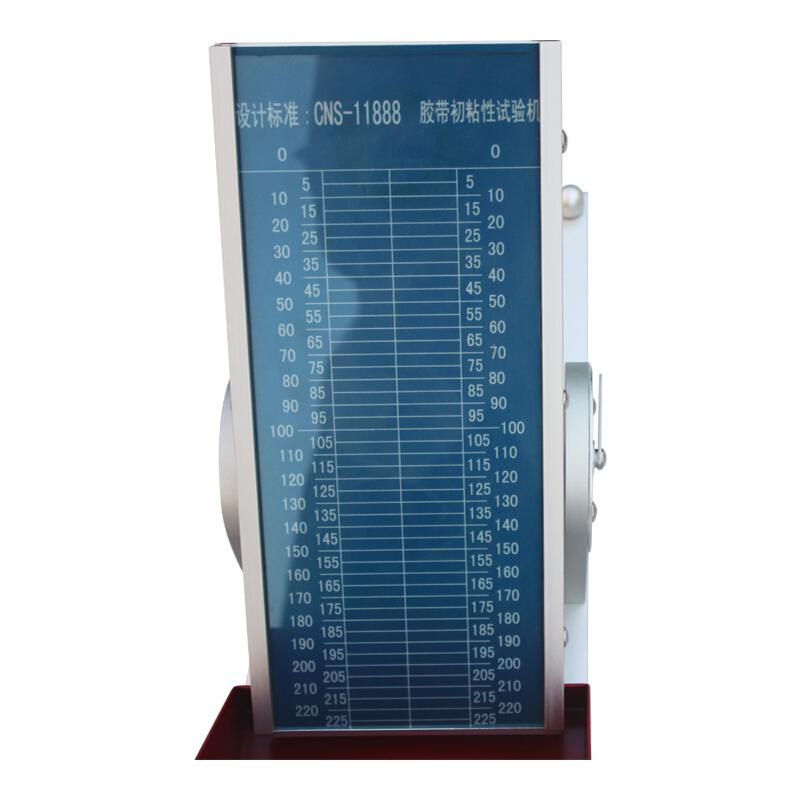

Primary Tack Rolling Ball Testing Machine (Model: NBC-5603) is a factory direct sales product used to test the initial Tack of the sample by the adhesion of the adhesive tape to the steel ball when there is a short contact between the steel ball and the Tack surface of the pressure sensitive tape sample at a small pressure. It is suitable for the adhesion of adhesive tape, labels and other products to the steel ball to test the initial Tack of the sample.

Features

1. Wide adjustable tilting angle range: 0~ 60 °; 2. The width of the table is 120mm; 3. The width of the test area is 80mm; 4. The size range of the ball: 1/32 "~ 1"; 5. Dimension compact: 320 × 140 × 180mm; 6. Lightweight: 6kg.

Principle

The initial Tack of the sample is tested by the adhesion of the adhesive tape to the steel ball when the steel ball and the Tack surface of the pressure-sensitive tape sample are briefly contacted at a small pressure.

Applications

Labels, tapes, protective films, medical patches

Standards

GB 4852、JIS Z0237

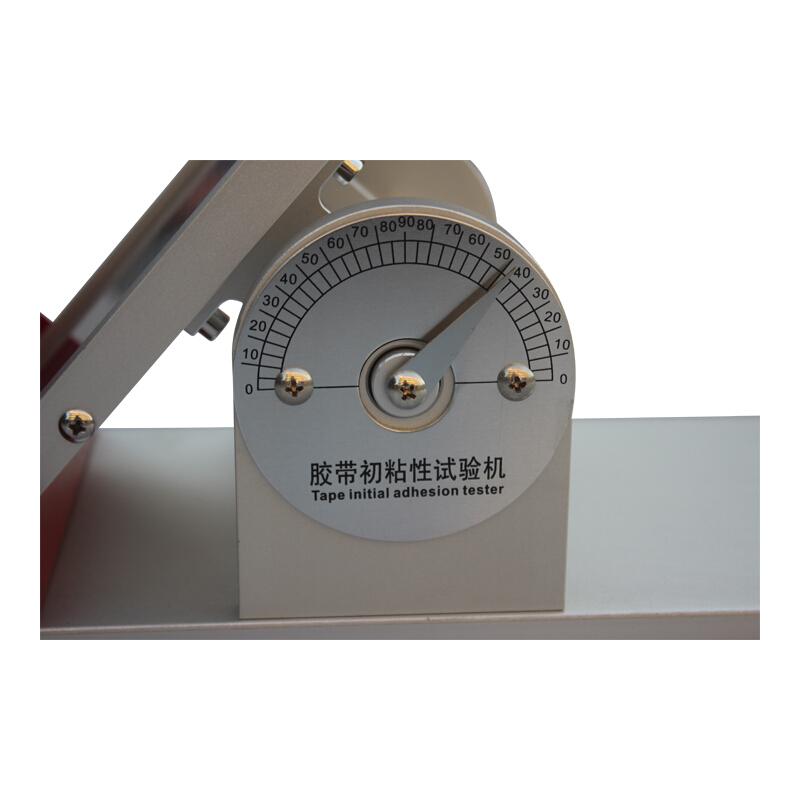

Adjustable tilt angle
0~60°
countertop width
120mm
test area width
80mm
Standard steel ball
1/32 inch to 1 inch
Dimension
320*140*180mm
weight
6 kg

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
