Overview

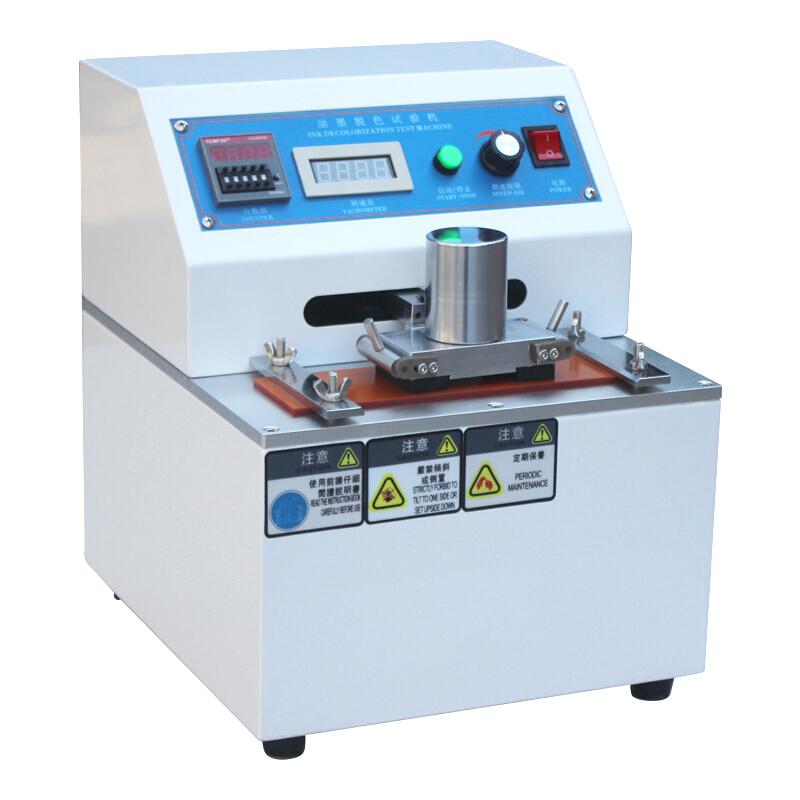

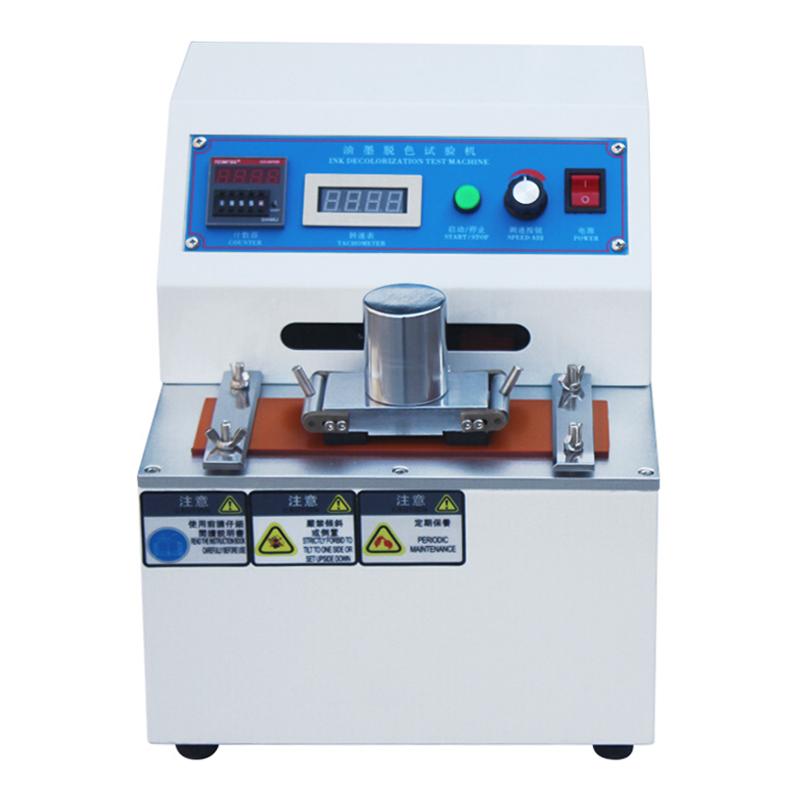

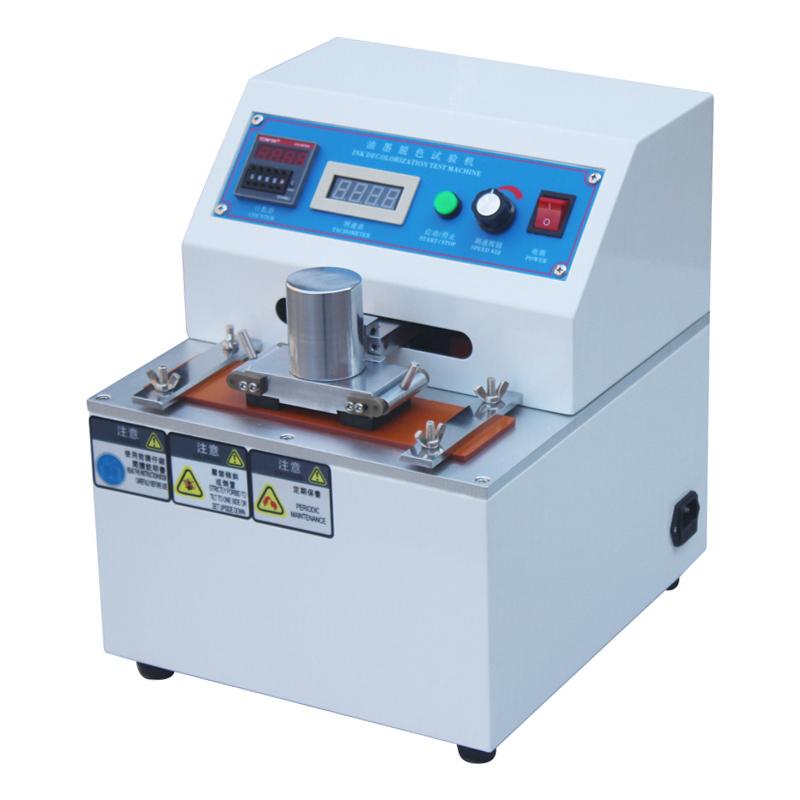

Ink Rub Resistance Tester (Model: NBC-8507) is mainly used for paper and Cardboard surface coating Abrasion Resistance test to test the adhesion of inks to judge the quality of inks. This machine is suitable for inks and printing products, color printing boxes, wear resistance, decolorization degree test.
Features
1. Using reciprocating friction mode, the friction contact form is surface contact

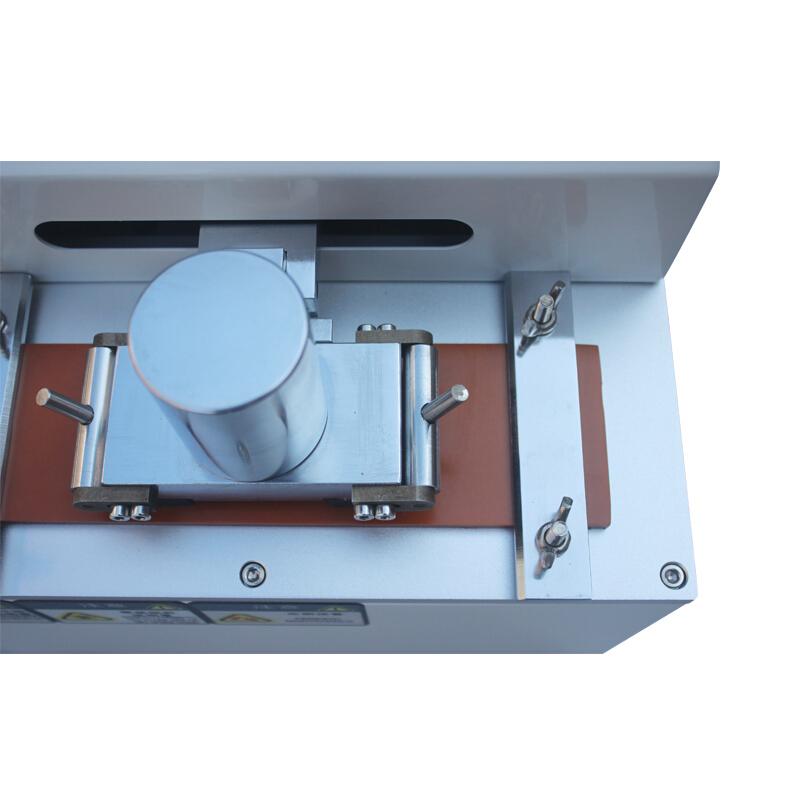

2. Equipped with a grinding head, the friction load can be selected from 2lb or 4lb.
3. The friction stroke is 60mm and the friction area is 50 * 156mm.
4. Power supply voltage is AC 220V 50Hz 1A, machine power is 40W
5. Dimension is 263 * 230 * 350mm, weight is 15kg
6. The operation mode adopts LED display, and the setting range of times is 0~ 999999 automatic shutdown
7. The friction frequency and speed are adjustable, and the sample size is 220 * 60mm.
Principle
The machine reciprocates friction between the tested sample and white Dowling paper (or white book paper) to determine its wear resistance and decolorization.
Applications
Inks, printing products, color printing boxes
Standards
GB7706、JIS5701、ISO9000
Steps
1. Prepare the sample, the size is 220 * 60mm
2. Set the number of friction times (0~ 999999)
3. Select friction load (2lb or 4lb)
4. Adjust the friction frequency speed
5. Start the machine for friction testing
6. Automatic shutdown after the test reaches the set number of times
7. Observe and record wear resistance and decolorization results
Notice
• Power supply voltage AC 220V 50Hz
• Check whether the sample size meets the requirements before operation
• Correct selection of friction load according to test requirements
• Regularly clean the friction surface to ensure test accuracy
• Avoid use in humid or high temperature environments
• Pay attention to safety during operation to prevent electric shock or mechanical injury
