Overview

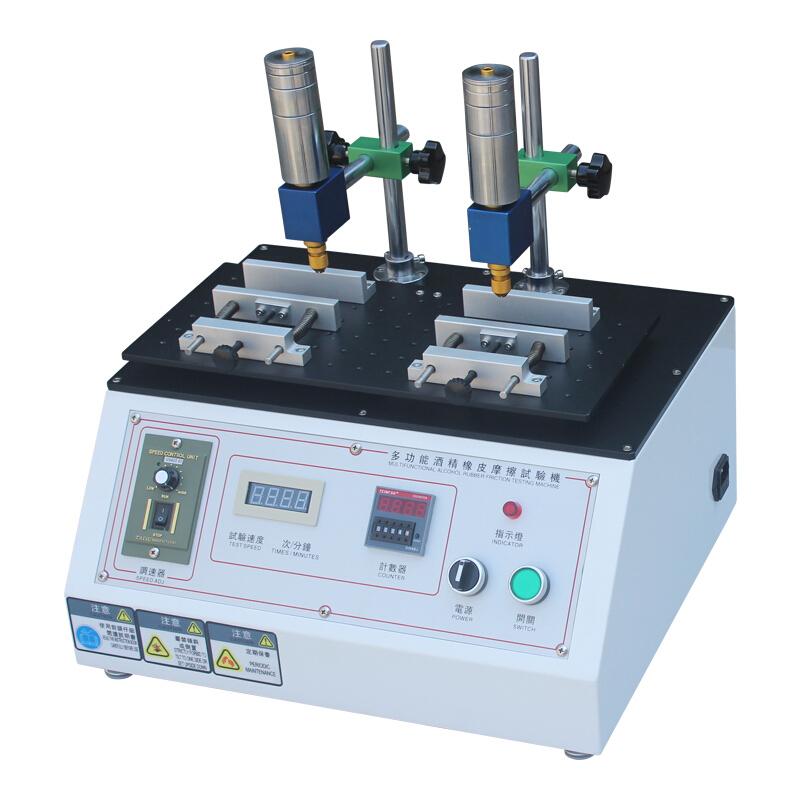

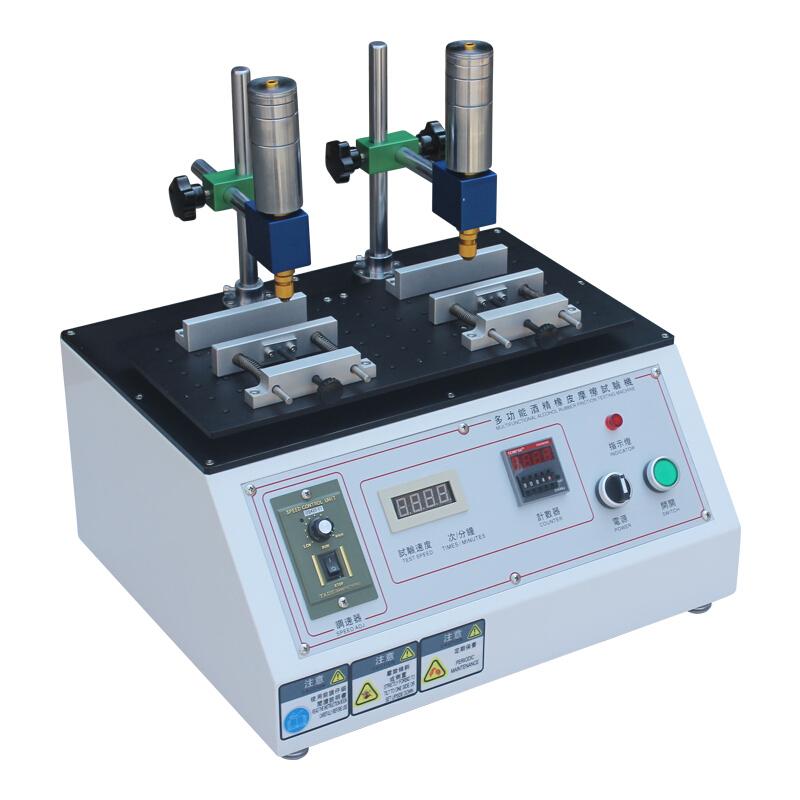

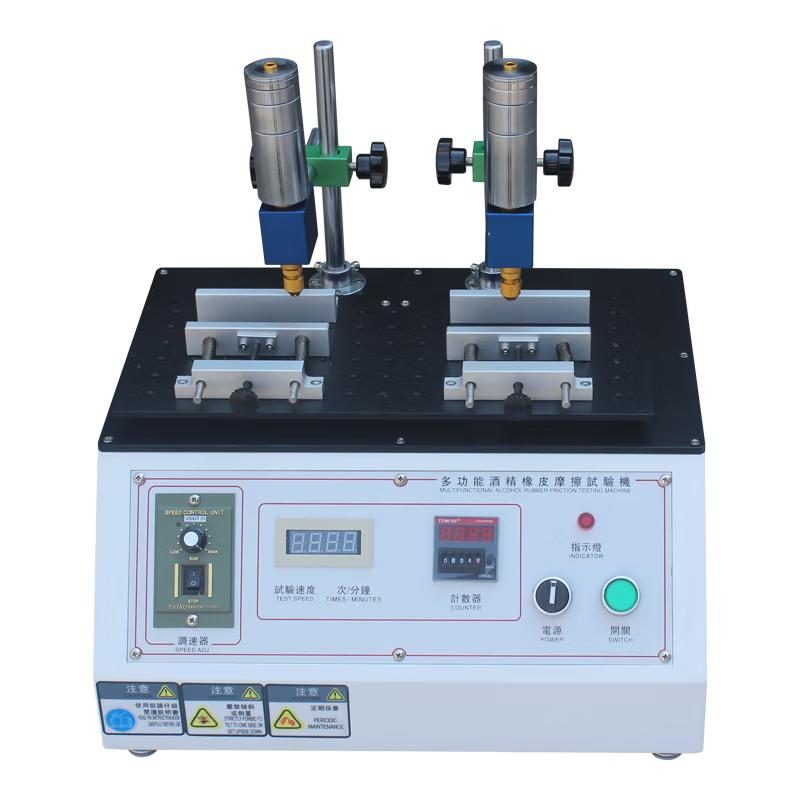

Alcohol Wear friction tester NBC-5600 is a multi-functional wear resistance test equipment sold directly by the factory. It is suitable for TV remote control button screen printing, plastic, mobile phone case, earphone case screen printing, battery screen printing, keyboard printing, wire screen printing, leather and other electronic products. The surface of oil injection and silk screen printing body wear resistance test to evaluate its wear resistance. This machine can carry out alcohol or Miscellaneous liquid medium and cotton cloth friction test, eraser friction test, pencil Hardness friction test three typical wear resistance tests. The product is tested back and forth under a certain test load, test number and test stroke by the friction hammer.
Features
1. Multifunctional design, supports various friction tests such as alcohol, cotton cloth, eraser, pencil, etc

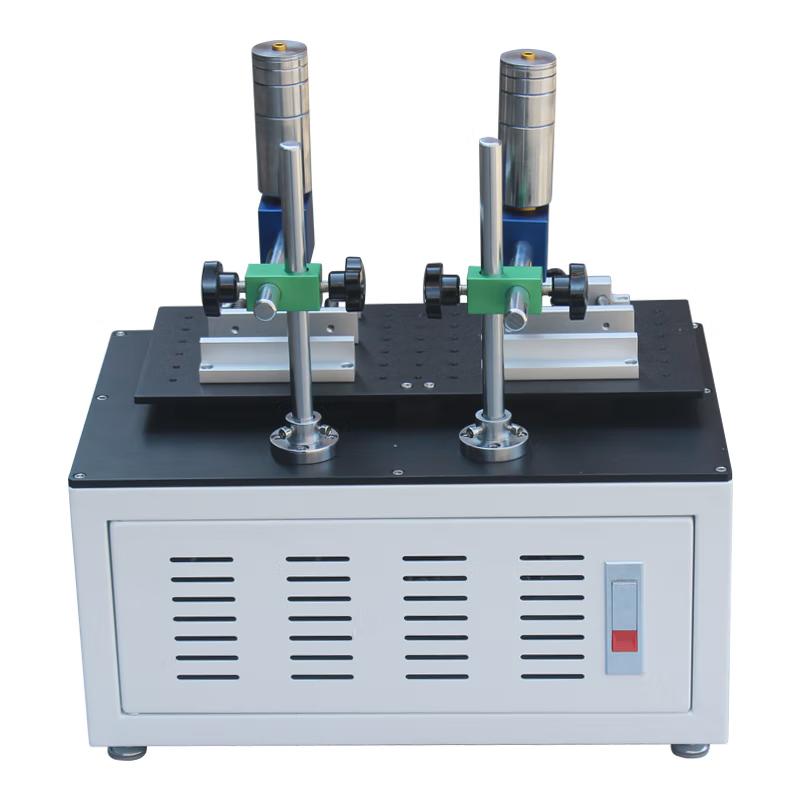

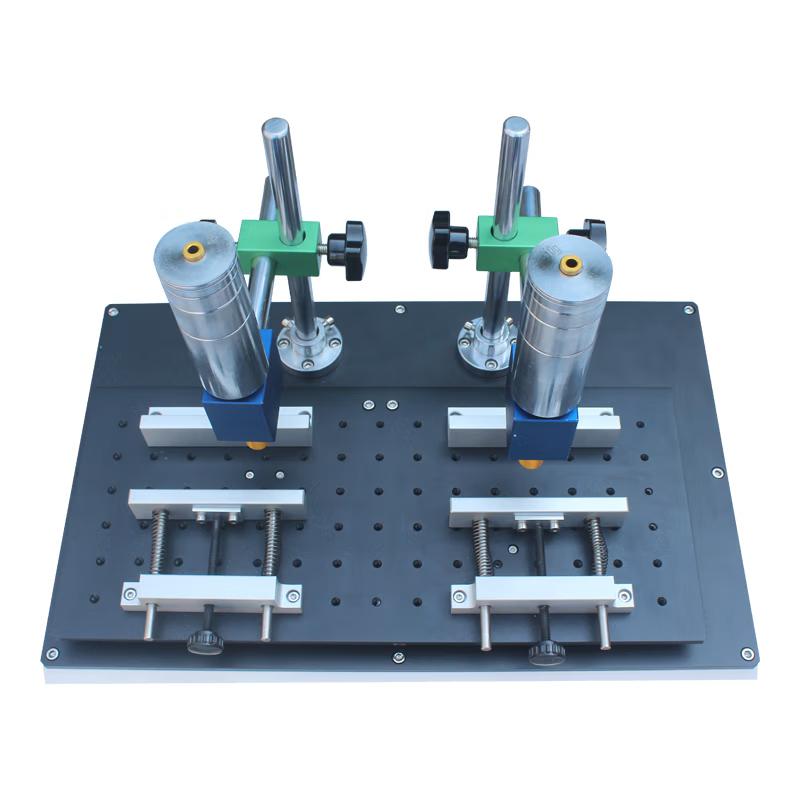

2. Two independent test stations to improve test efficiency
3. Wide range of test loads, adjustable from 50g to 1000g
4. Test stroke and speed can be adjusted manually, LCD display parameters
5. Large counting range, up to 99999900 times, and supports preset function
6. Standard with a variety of friction media and tools, including cotton cloth, eraser, Chinese 2B pencil, etc
7. Suitable for a variety of materials, such as Glass cover, film, plastic, auto parts, etc
Principle
The machine uses the friction hammer to conduct back and forth friction tests on the surface of the product under the set test load, test number and test stroke. During the test, the friction hammer applies a specific load to simulate the actual use of abrasion conditions to evaluate the wear resistance of the product. Different friction media such as alcohol cotton cloth, eraser or pencil can be configured to adapt to a variety of testing needs.
Applications
Glass covers, films, plastics, auto parts, rubber, leather and Spinning & weaving, Eletroplating, freely removable components, lacquers, printing patterns
Standards
ASTM F2496、ISO 1518-1、ISO 1518-2、GME60248、D42 1775
Steps
1. Prepare test samples to ensure surface cleanliness
2. Select the friction medium (such as cotton cloth, eraser or pencil) according to the test requirements and install it on the corresponding tool
3. Set the test load and adjust the load using the standard weight

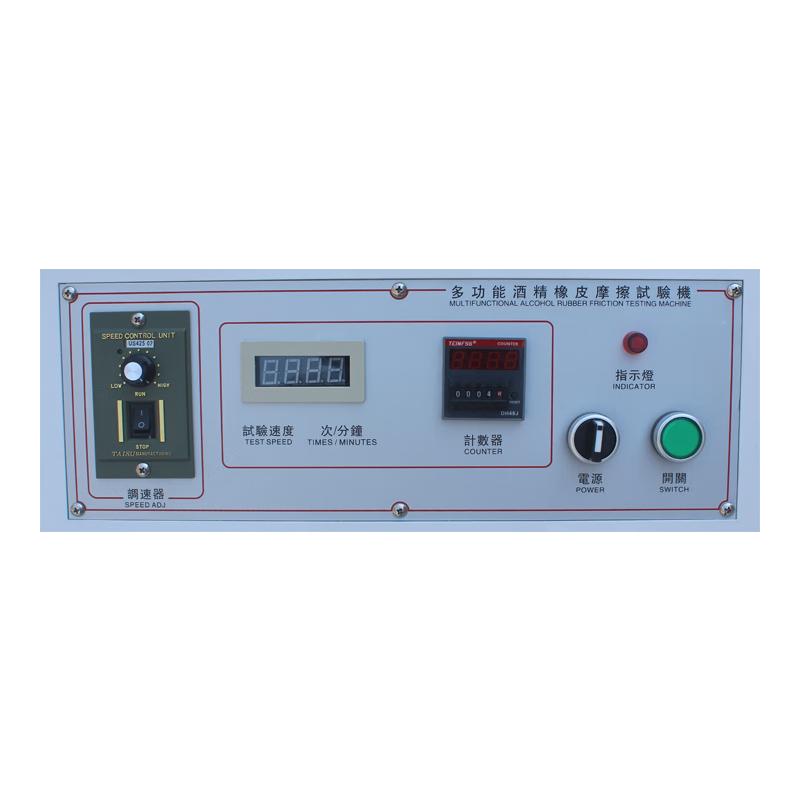

4. Manually adjust the test stroke and speed, set and observe the LCD display through the knob
5. Preset the number of trials and enter the desired value on the counter
6. Start the machine and start the reciprocating friction test
7. After the test is completed, stop the machine and record the results
Notice
• Power supply voltage AC220V, 50HZ to avoid equipment damage caused by voltage mismatch
• When adjusting the test load, stroke and speed, follow the operation manual to prevent overload
• Check whether the friction medium is in good condition before the test, and replace it in time if there is any abrasion
• Keep the test platform clean to avoid impurities affecting the test results
• Pay attention to safety during operation and avoid hand contact with moving parts
• Maintain equipment regularly to ensure long-term stable operation
