Overview

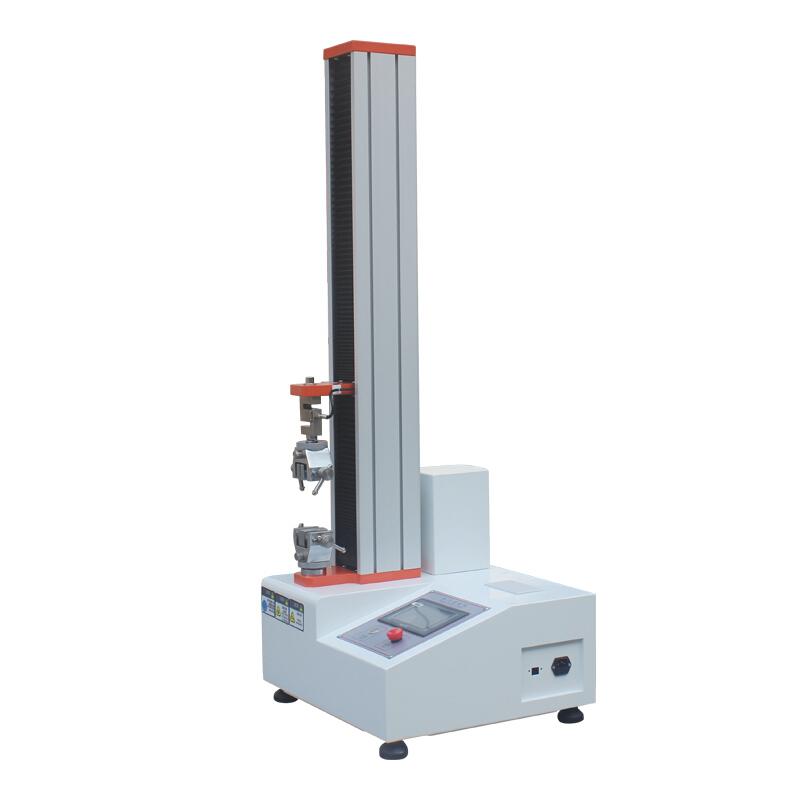

Touch screen single column tensile strength testing machine is a factory direct sales test equipment, suitable for Plastic film, composite film, Adhesive, adhesive tape, medical patch, protective film, release paper, rubber, artificial leather, paper fiber and other products of tensile strength, Peel Strength, deformation rate, breaking force, disbonding force, opening force and other performance tests. The device adopts LCD touch screen control, easy operation, printable data, and has upper and lower limit protection switches and overload protection functions.
Features
1. Stable and accurate operation
2. Easy to operate and efficient
3. LCD touch screen control
4. Can print data directly
5. Upper and lower limit protection switches, overload protection
6. The control system adopts the AC motor with full digital control frequency to ensure the high efficiency of the transmission system, the smooth transmission, the low noise and the speed accuracy can be controlled within 0.5%
7. The machine structure adopts the aluminum extrusion seal plate treated with paint, which has built-in High Accuracy, Low Resistance, No Gap Double Roller Screw and Guide Column, which improves the load efficiency and structural rigidity
8. Stable and reliable performance, high measurement accuracy, powerful test software, easy to understand
Principle
The testing machine is driven by a speed-regulating motor and adopts a fully digital AC motor to control the frequency to ensure the efficient and stable transmission system. The structure of the machine adopts an aluminum extrusion sealing plate with built-in double roller screws and guide columns to improve load efficiency and rigidity. During the test, the equipment can automatically calculate the average value of the data and conduct performance tests such as tensile strength and Peel Strength according to the set parameters.
Applications
Adhesive Tape, Automotive, Pottery and porcelain, Composites, Construction, Food Equipment, Metal, Paper, Encasement, Rubber, Spinning & weaving, Wood, Communication and Various Shaped Materials
Steps
1. Customize or select the fixture according to the product type
2. Set test parameters, such as speed range 0~ 300mm/min
3. Start the device for testing
4. Automatically calculate the average of 10 sets of data
5. Print data as required
Notice
* 500KG (inclusive) or more standard strong pliers fixture, can only withstand 200KG, reinforcement 300~ 400KG need to contact customer service to customize the fixture
* Linear dispersion cannot be printed by the printer because the Linear dispersion is large
* The tension machine below 500KG (inclusive) adopts frequency conversion motor, and the servo motor is used for 1 to 30 tons
* Power supply voltage 1PH, AC220V, 50/60Hz
* Note upper and lower limit safety settings and specimen breakpoint sensing
