Overview

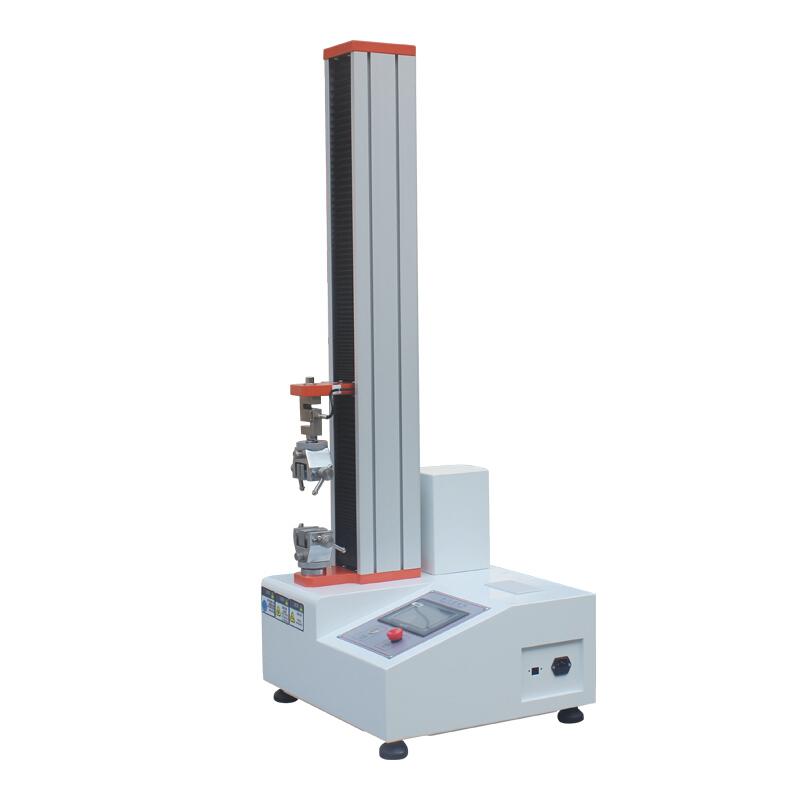

Touch screen single column tensile strength testing machine NBC-1021 (20KG) is a factory direct sales product, suitable for Plastic film, composite film, Adhesive, adhesive tape, medical patch, protective film, release paper, rubber, artificial leather, paper fiber and other products of tensile strength, Peel Strength, deformation rate, breaking force, disbonding force, opening force and other performance tests.
Features
1. Stable and accurate operation
2. Easy to operate and efficient
3. LCD touch screen control
4. Can print data directly
5. Upper and lower limit protection switches, overload protection
6. The control system adopts the AC motor with full digital control frequency to ensure the high efficiency of the transmission system, the smooth transmission, the low noise and the speed accuracy can be controlled within 0.5%
7. The machine structure adopts the aluminum extrusion seal plate treated with paint, which has built-in High Accuracy, Low Resistance, No Gap Double Roller Screw and Guide Column, which improves the load efficiency and structural rigidity
8. Stable and reliable performance, high measurement accuracy, powerful test software, easy to understand
Principle
The testing machine is driven by AC motor with full digital control frequency, and the test parameters are controlled by LCD touch screen to achieve accurate speed control and force value measurement. The machine structure adopts aluminum extrusion sealing plate with built-in double roller screw and guide column to ensure the load efficiency and structural rigidity during the test process.
Applications
Adhesive Tape, Automotive, Pottery and porcelain, Composites, Construction, Food Equipment, Metal, Paper, Encasement, Rubber, Spinning & weaving, Wood, Communication and Various Shaped Materials
Steps
1. Select the appropriate fixture according to the product type (regular fixtures are standard, and special needs need to be customized)
2. Set the test parameters through the LCD touch screen
3. Start the test and automatically calculate the data average
4. Print test data as required
Notice
• The standard power pliers fixture above 500KG (inclusive) can only withstand 200KG, and the reinforcement of 300~ 400KG needs to contact customer service to customize the fixture.
• Linear dispersion cannot be printed by the printer because the Linear dispersion is relatively large
• The tension machine below 500KG (inclusive) adopts frequency conversion motor, and the servo motor is used for 1 to 30 tons
• Please select the appropriate motor type and fixture according to product requirements
