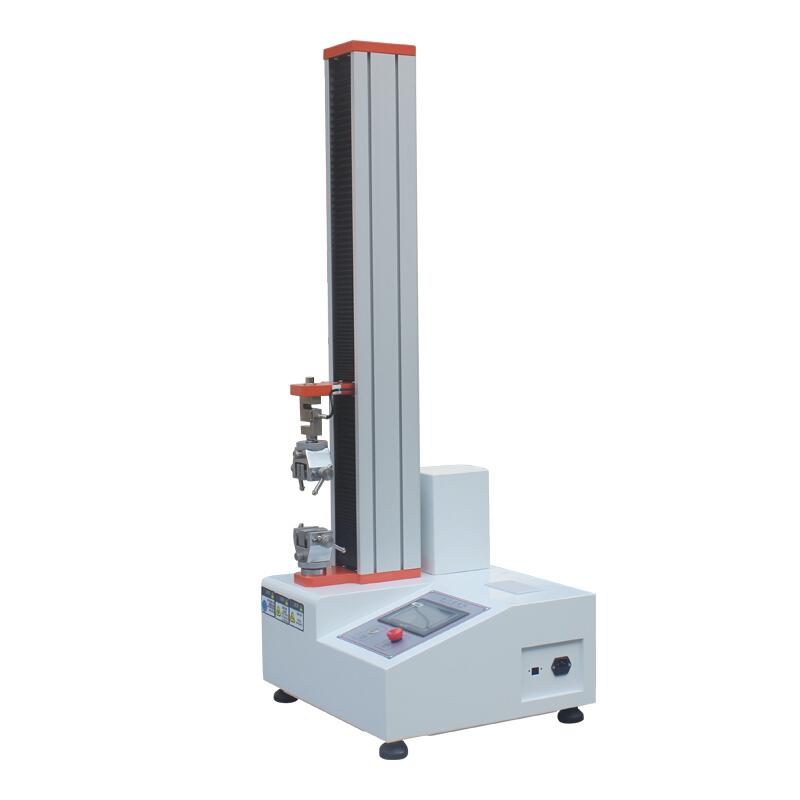

AISRY NBC-1021 (50KG) Touch Screen Single Column Tensile strength Tester, Tensile Peel Strength Test

Name: AISRY NBC-1021 (50KG) Touch Screen Single Column Tensile strength Tester, Tensile Peel Strength Test
Brand: AISRY
SKU: NB044559
Price: 1159.0 USD
Availability: InStock

$ 1159.00Ex works

Full digital control AC motor, speed accuracy of 0.5%; aluminum extrusion sealing plate built-in double roller screw, improve load efficiency; support upper and lower limits and overload protection, stable and reliable test.

Model

NBC-1021(50KG)

Get Quote

Category : Tensile Testing Machine

Brand : AISRY

SKU : NB044559

Service :The delivery and service By NBCLab.Com

Overview

Plastic film, composite film, Adhesive, adhesive tape, medical patch, protective film, release paper, rubber, artificial leather, paper fiber and other products of tensile strength, Peel Strength, deformation rate, breaking force, disbonding force, opening force and other performance testing equipment. The machine adopts LCD touch screen control, stable and accurate operation, simple and efficient operation.

Features

1. Stable and accurate operation 2. Easy to operate and efficient 3. LCD touch screen control 4. Can print data directly 5. Upper and lower limit protection switches, overload protection 6. The control system adopts the AC motor with full digital control frequency to ensure the high efficiency of the transmission system, the smooth transmission, the low noise and the speed accuracy can be controlled within 0.5% 7. The machine structure adopts the aluminum extrusion seal plate treated with paint, which has built-in High Accuracy, Low Resistance, No Gap Double Roller Screw and Guide Column, which improves the load efficiency and structural rigidity 8. Stable and reliable performance, high measurement accuracy, powerful test software, easy to understand

Principle

The testing machine is driven by a speed-regulating motor, using a fully digital AC motor with controlled frequency, combined with High Accuracy double-roller screws and guide columns, to achieve smooth transmission and precise speed control. The parameters are set through the LCD touch screen and the test Linear dispersion and data are displayed in real time. Automatically calculate the average value and support printout.

Applications

Adhesive Tape, Automotive, Pottery and porcelain, Composites, Construction, Food Equipment, Metal, Paper, Encasement, Rubber, Spinning & weaving, Wood, Communication and Various Shaped Materials

Steps

1. Select or customize the fixture according to the product type 2. Connect the power supply and turn it on. 3. Set the test parameters through the LCD touch screen 4. Install the specimen onto the fixture 5. Start the test and observe the Linear dispersion diagram display 6. Automatically calculate the average data after the test is completed 7. Print data as required 8. Shut down and clean the equipment

Notice

* The standard test fixture is a strong clamp fixture, which can only withstand 200KG. More than 500KG (inclusive) needs to be reinforced to 300~ 400KG, or contact customer service to customize the fixture. * Linear dispersion cannot be printed by the printer because the Linear dispersion is large * The tension machine below 500KG (inclusive) adopts frequency conversion motor, and the servo motor is used for 1 to 30 tons * Pay attention to the use of upper and lower limit protection switches and overload protection functions * Power supply voltage 1PH, AC220V, 50/60Hz

Capacity selection
50kg
Measurement accuracy
±1%
resolution
1/200000
test speed
0~300mm/min
effective travel
600mm
test space
120mm
Unit of strength
kgf、gf、N、kN、lbf
stress unit
MPa、kPa、kgf/cm2、lbf/in2
shutdown mode
Upper and lower limit safety setting, specimen breakpoint sensing
result output
Micro printer
power
Speed regulating motor
optional
Tension fixture (conventional)
Machine weight
About 40kg
power supply
1PH、AC 220V、50/60Hz

[Q] For testing the tensile strength of plastic films and the peel strength of adhesive tapes, I recommend considering the following types of universal tensile testing machines: 1. Tabletop Universal Testing Machine - Suitable for low to medium force ranges (e.g., 0.5 kN to 10 kN). - Equipped with grips for films (e.g., pneumatic or manual film grips) and peel test fixtures (e.g., 90° or 180° peel fixtures). - Examples: Instron 3340 series, Shimadzu AGS-X series, or Zwick/Roell Z010. 2. Dual-Column Universal Testing Machine - Ideal for higher precision and versatility. - Can accommodate a wide range of accessories for films, tapes, and other materials. - Examples: Instron 6800 series, MTS Criterion series. Key Features to Look For: - Load Capacity: Ensure the machine covers the expected force range (typically 0–5 kN for films and tapes). - Grips and Fixtures: - Tensile Tests: Use grips with uniform pressure (e.g., rubber-coated or pneumatic grips) to prevent slippage or damage to films. - Peel Tests: 90° or 180° peel fixtures for adhesive tapes. - Software: User-friendly software for setting test parameters (speed, sample dimensions) and analyzing results (stress-strain curves, peak load, peel strength). - Compliance with Standards: Ensure the machine meets relevant standards (e.g., ASTM D882 for films, ASTM D3330 for tape peel strength). Additional Recommendations: - Consider environmental chambers if testing under specific temperatures/humidity is required. - For high-throughput testing, automated systems (e.g., robot-assisted sample loading) can improve efficiency. Let me know if you need further details on specific models or test methods!

Recommend a touch-screen single-column tensile strength tester, which is suitable for testing the tensile strength and peel strength of materials such as plastic films and adhesive tapes. This instrument features liquid crystal touch-screen control, offering simple operation and high precision. It can directly print data, making it ideal for such applications. With a maximum test force of 50 kg and a speed range of 0–300 mm/min, it accurately measures deformation rates and breaking forces, ensuring stable and reliable test results.

[Q] In the packaging and textile industries, tensile testing machines are commonly used in the following testing scenarios: 1. Packaging Industry: - Material Strength Testing: Assessing the tensile strength and elongation of packaging films, papers, and laminates. - Seam Strength Testing: Evaluating the strength of seals, adhesives, and seams in packaging materials. - Tear Resistance Testing: Measuring the resistance of packaging materials to tearing forces. - Burst Strength Testing: Determining the pressure resistance of packaging materials under stress. 2. Textile Industry: - Fabric Tensile Strength Testing: Measuring the breaking strength and elongation of woven or nonwoven fabrics. - Yarn Strength Testing: Evaluating the tensile properties of yarns and threads. - Seam Strength Testing: Assessing the durability of seams in garments and textiles. - Elasticity and Recovery Testing: Analyzing the stretch and recovery properties of elastic textiles. - Tear and Puncture Resistance Testing: Determining the resistance of textiles to tearing and puncturing forces. These tests help ensure the quality, durability, and performance of materials in both industries.

In the packaging and textile industries, tensile testing machines are commonly used to test properties such as tensile strength, peel strength, and breaking force of materials. For instance, packaging materials like composite films and adhesive tapes require evaluation of their durability and bonding effectiveness, while textiles need to assess the tensile properties of fibers. This touchscreen single-column tensile testing machine supports testing for a variety of materials, including paper, rubber, and profiled materials, helping you quickly evaluate product quality and ensure compliance with industry standards.
