Overview

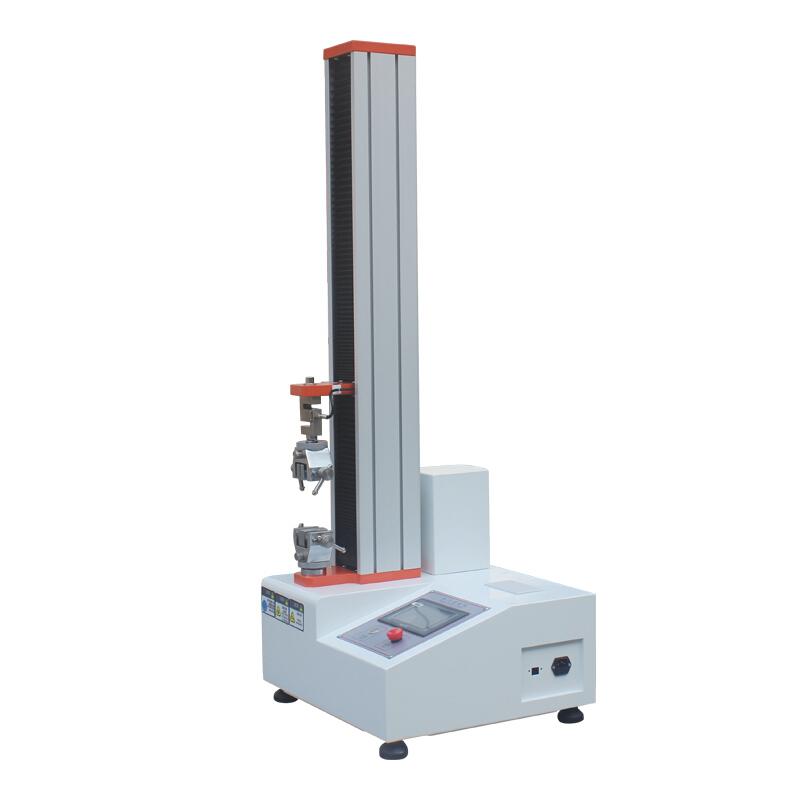

Touch screen single column tensile strength testing machine is a factory direct sales testing equipment, model NBC-1021 (200KG), suitable for a variety of materials tensile strength, Peel Strength, deformation rate, breaking force, disbonding force, opening force and other performance tests.
Features
1. Stable and accurate operation
2. Easy to operate and efficient
3. LCD touch screen control
4. Can print data directly
5. Upper and lower limit protection switches, overload protection
6. The control system adopts the AC motor with full digital control frequency to ensure the high efficiency of the transmission system, the smooth transmission, the low noise and the speed accuracy can be controlled within 0.5%
7. The machine structure adopts the aluminum extrusion seal plate treated with paint, which has built-in High Accuracy, Low Resistance, No Gap Double Roller Screw and Guide Column, which improves the load efficiency and structural rigidity
8. Stable and reliable performance, high measurement accuracy, powerful test software, easy to understand
Principle
Driven by a variable speed motor, the testing machine adopts a fully digital AC motor to control the frequency to achieve smooth transmission and precise speed control. LCD touch screen is used to set test parameters, display Linear dispersion diagram, and automatically calculate the average value of the data, and supports direct printout.
Applications
Adhesive Tape, Automotive, Pottery and porcelain, Composites, Construction, Food Equipment, Metal, Paper, Encasement, Rubber, Spinning & weaving, Wood, Communication and Various Shaped Materials
Steps
1. Customize the fixture according to the product type (500KG and above are standard with strong pliers, but can only withstand 200KG, and you need to contact customer service for reinforcement)
2. Use the LCD touch screen to set the test parameters
3. Start the test and automatically calculate the average value of 10 sets of data
4. Print data as needed (note that the printer cannot print Linear dispersion diagram)
Notice
- The fixture needs to be customized according to the product. The standard strong pliers fixture above 500KG only bears 200KG. Reinforcement needs to contact customer service.
- Linear dispersion cannot be printed by the printer because the Linear dispersion is large
- The tension machine below 500KG adopts frequency conversion motor, and the servo motor is used for 1 to 30 tons. Precision and power requirements should be paid attention to when choosing
