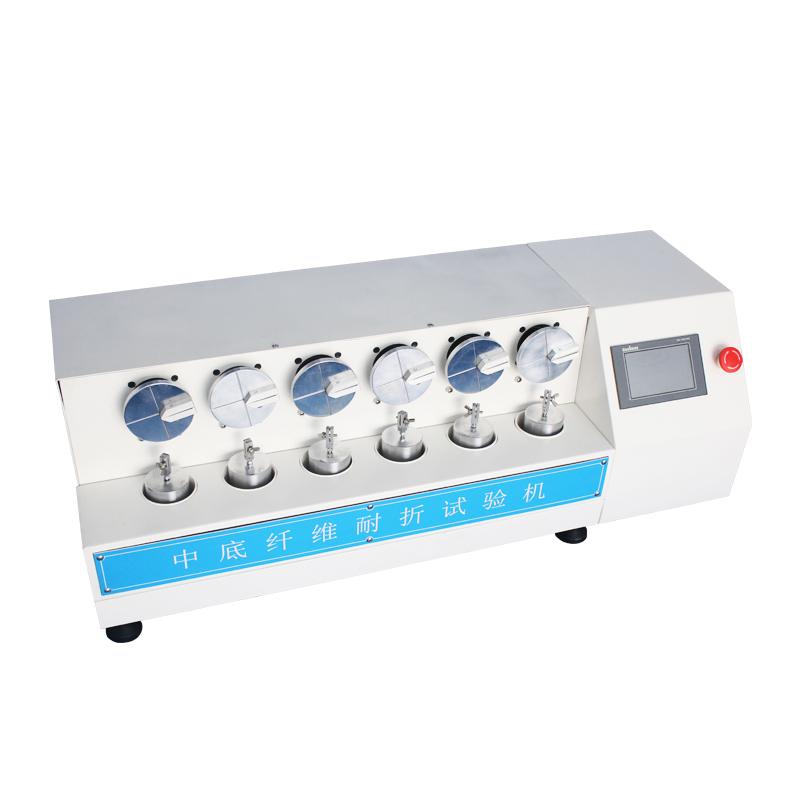

AISRY NBC-7200 midsole fiber folding Tester, medium baseplate bending index Tester

Name: AISRY NBC-7200 midsole fiber folding Tester, medium baseplate bending index Tester
Brand: AISRY
SKU: NB044567
Price: 2111.0 USD
Availability: InStock

$ 2111.00Ex works

It can be continuously bent to and fro 90 degrees to test the number of breaks, equipped with 6 upper clamps and 2 +/- 0.1kg lower clamps under heavy load, and the folding speed can reach 60r/min to ensure accurate determination of the torsion resistance index.

Model

NBC-7200

Get Quote

Category : Folding Endurance Tester

Brand : AISRY

SKU : NB044567

Service :The delivery and service By NBCLab.Com

Overview

NBC-7200 midsole fiber folding test machine is a factory direct product, used to test the quality of midsole fiberboard bending resistance of leather shoes, casual shoes, walking shoes and travel shoes.

Features

1. DC motor drive, stable and reliable operation 2. Equipped with LCD counter, counting range 0~ 999999 3. Configure 6 upper clamps and 6 lower clamps and heavy weight 4. Folding speed up to 60r/min 5. The folding angle is 90 ° left and right. 6. Compact shape, size 1000 * 370 * 350mm

Principle

The sample was continuously bent 90 degrees to the left and right until it broke. The number of breaks was used to determine the bending resistance index of the middle baseplate. As a basis for comparison, the middle baseplate was selected. Sampling requirements: A standard sample with a length of 80mm and a width of 10mm was cut from the finished fiberboard. Result determination: The number of breaks was used to determine the bending resistance index of the middle baseplate.

Steps

1. Cut a standard sample with a length of 80mm and a width of 10mm from the finished fiberboard 2. Install the specimen in the upper fixture 3. Set the test parameters and start the equipment 4. The equipment continuously bends the sample 90 degrees 5. Record the number of bends when the specimen breaks 6. Determine the bending resistance index of the baseplate according to the number of breaks

Specimen Size
80x10mm
counter
LCD, 0~999999
upper fixture
Six.
motor
DC motor
Lower fixture and weight
2 +/- 0.1kg, 6 pcs
Volume
1000x370x350mm
folding angle
Left and right 90 °
weight
About 100kg
folding speed
60r/min
Power supply Voltage
1∮，AC 220V，5A
