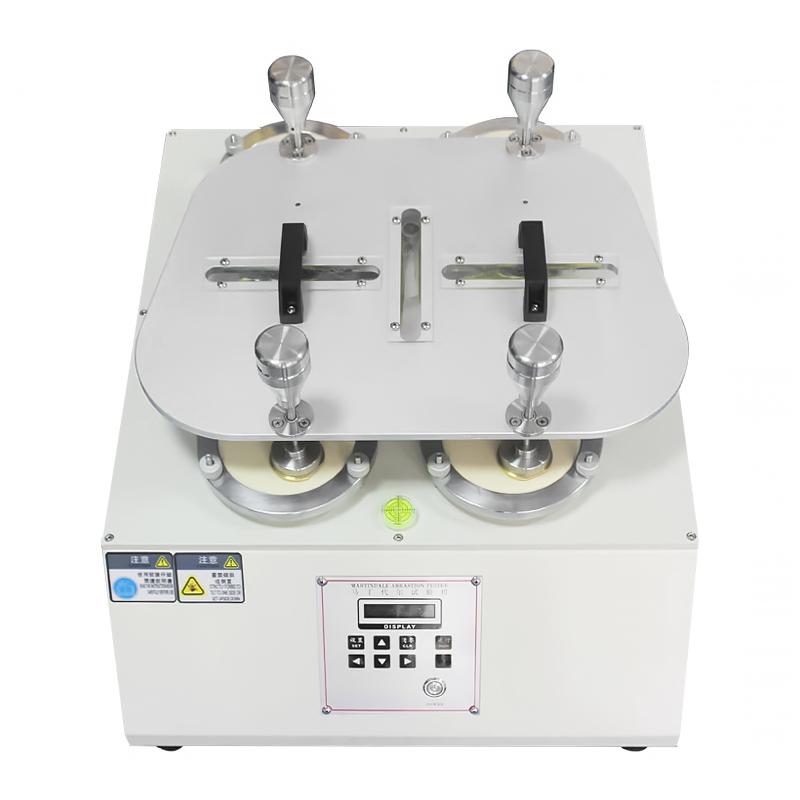

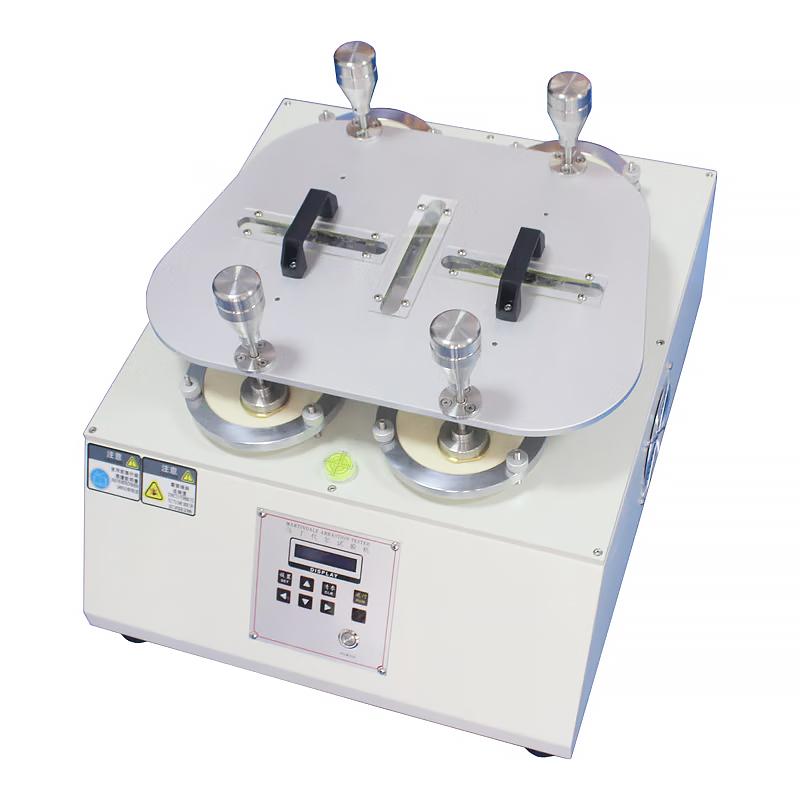

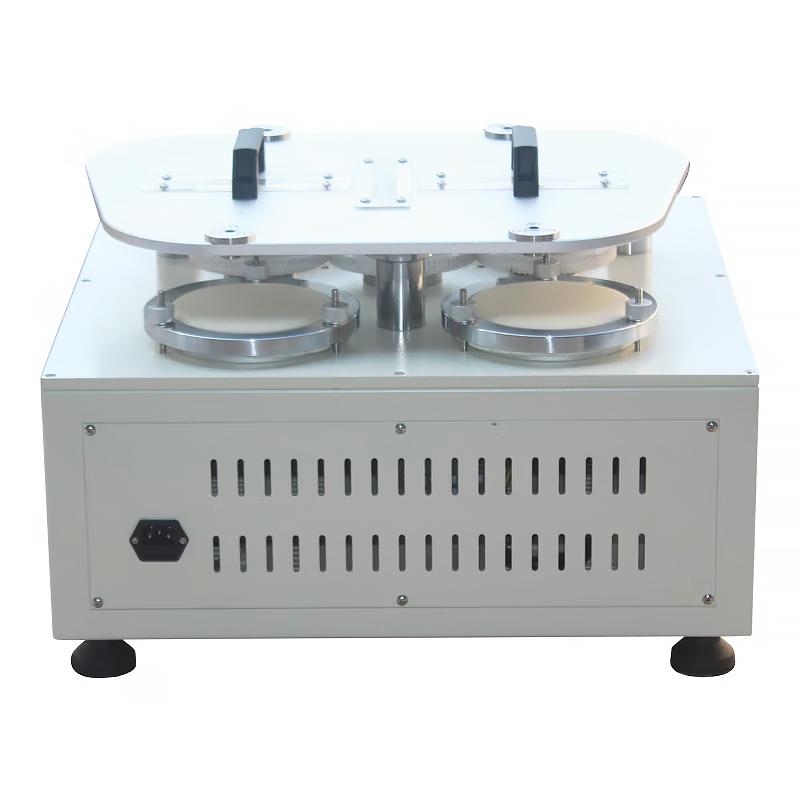

AISRY NBC-101-4Z Martindale Wear resistance Tester eight-station dual-track Wear resistance testing apparatus

Name: AISRY NBC-101-4Z Martindale Wear resistance Tester eight-station dual-track Wear resistance testing apparatus
Brand: AISRY
SKU: NB044602
Price: 1639.0 USD
Availability: InStock

$ 1639.00Ex works

The instrument is equipped with an eight-station synchronous test function, which supports 24mm and 60.5mm Li ShaRu motion trajectories, with a maximum motion range of 60.5mm. It meets a variety of standard requirements, is easy to operate, and counts intuitively.

Model

NBC-101-4Z

Get Quote

Category : Abrasion Tester

Brand : AISRY

SKU : NB044602

Service :The delivery and service By NBCLab.Com

Overview

The instrument is designed by absorbing the advantages of similar domestic and foreign instruments. Its appearance is beautiful and easy to operate. The microcomputer system adopts two counting methods, which are intuitive and generous, easy to set, and eight stations are tested at the same time to improve the test efficiency. The instrument is also equipped with two Lissajous 24mmx24mm, 60.5mmx60.5mm motion trajectories and a variety of supporting accessories, which can adapt to a variety of test method standards.

Features

1. Beautiful appearance and easy operation 2. The microcomputer system adopts two counting methods, which are intuitive and easy to set up 3. Eight stations are tested simultaneously to improve test efficiency 4. Equipped with two Lissajous 24mmx24mm and 60.5mmx60.5mm motion trajectories 5. Equipped with a variety of supporting accessories, it can adapt to a variety of test method standards

Principle

Friction is generated by the relative motion of the gripper and the mill table. The Lissajous trajectory is used to simulate the friction conditions in actual use, and the fabric samples are tested for wear resistance or pilling. The microcomputer system controls the test process and records the counting data.

Standards

GB/T4802.2、ASTM D4970、ISO12945-2、GB/T13775、ASTM D4966、ISO12947

Steps

1. Prepare samples and supporting accessories 2. Select the appropriate motion trajectory (24mmx24mm or 60.5mmx60.5mm) 3. Install the specimen to the gripper 4. Set test parameters and counting methods 5. Start the test, eight stations are carried out simultaneously 6. Observe and record the test results

station number
Group of 4
expected count
0~ 999999 times
cumulative count
0~ 99999 times
Clothing sample weight
395g
Stainless steel butterfly sheet
260g
Husband holder
200g
Furniture decoration sample heavy hammer
594g
maximum travel
24±0.5mm、60.5±0.5mm
Effective friction diameter of grinding block
A Type 200g (1.96N) friction head Φ 28.8-0; B Type 155g (1.52N) friction head Φ 90-0.10mm
Relative velocity of gripper and mill
50-2R/min loading
Bell mass
2385±10g
weight
100kg

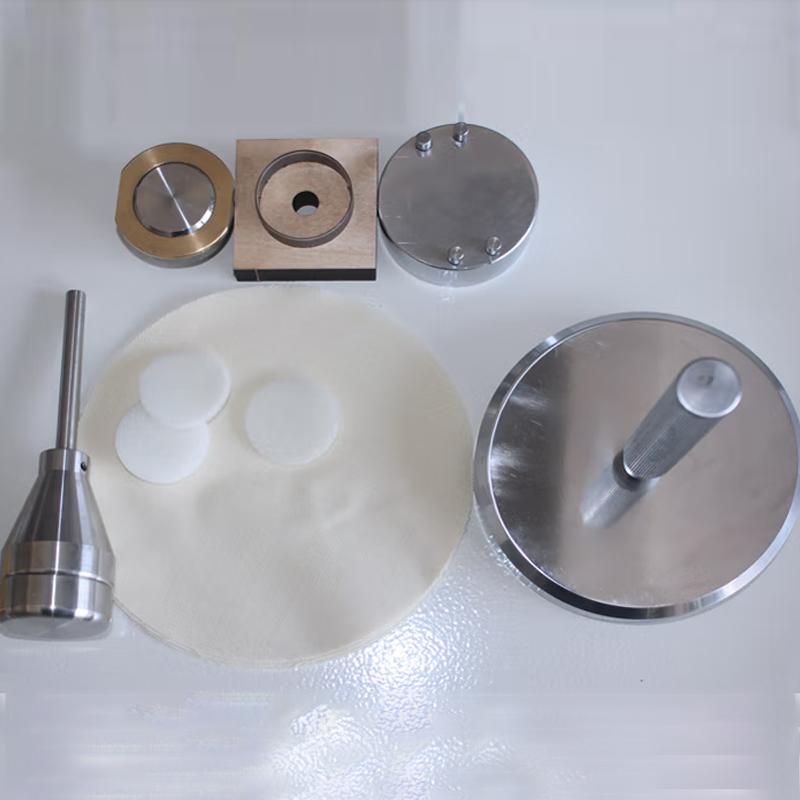

consumables
4 sheets of wool felt and 4 sheets of test cotton cloth.
Power supply Voltage
AC 220V 50Hz
