Overview

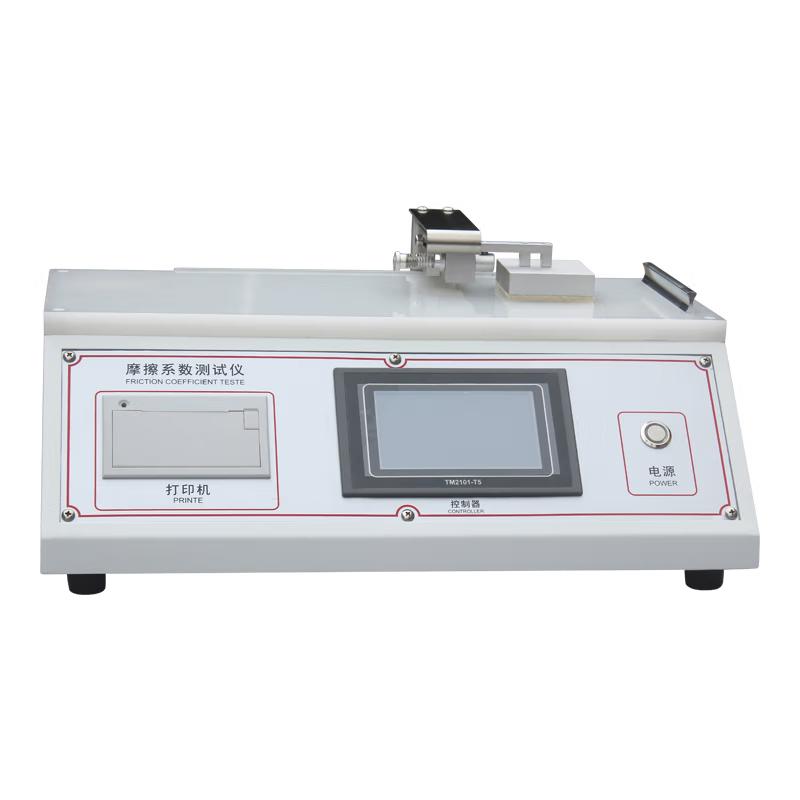

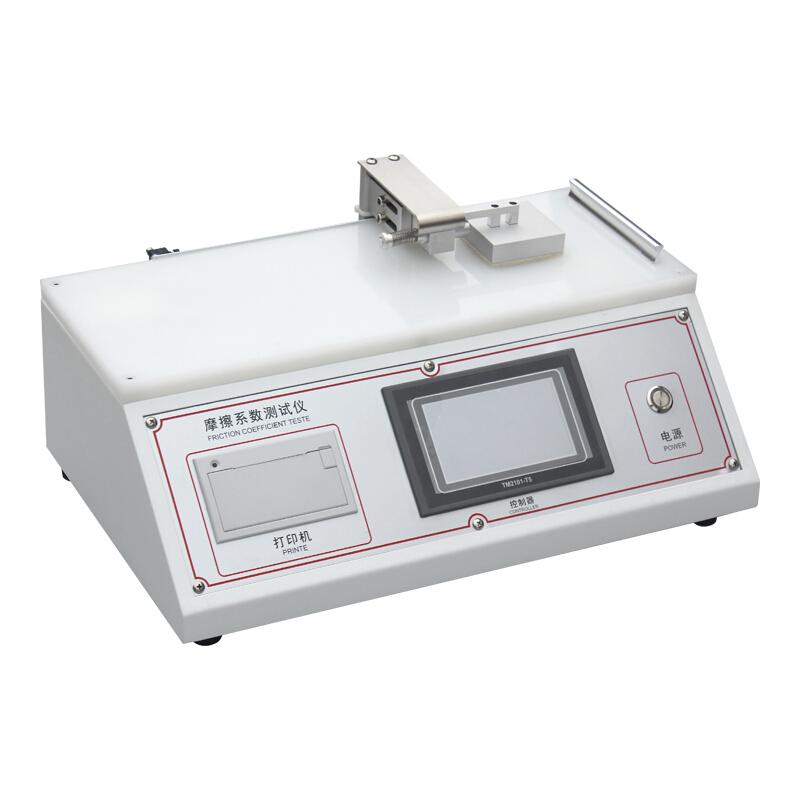

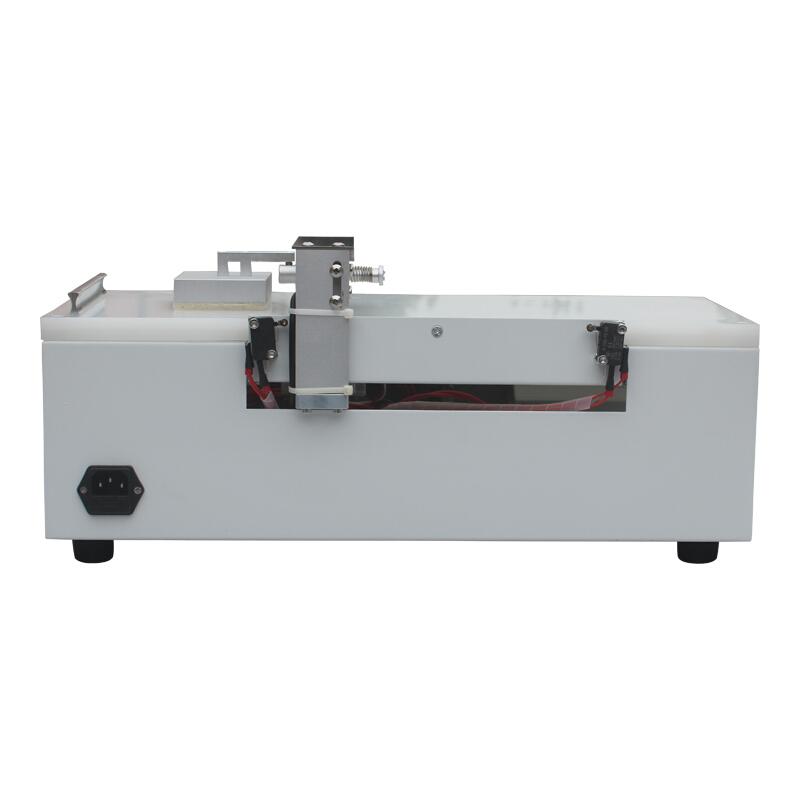

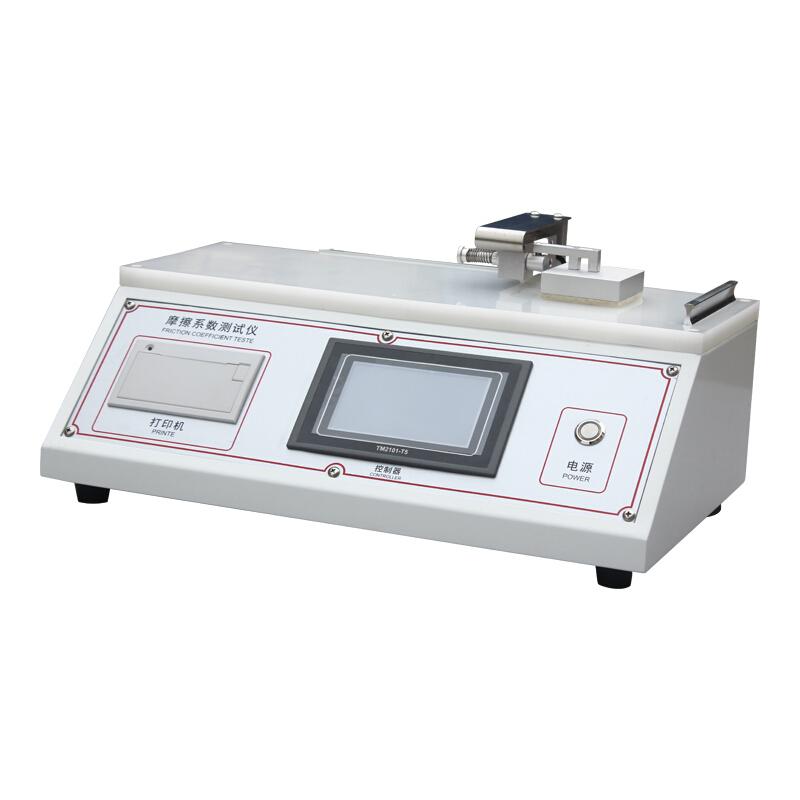

Coefficient of Friction Tester NBC-3009 is based on GB 10006 national standard, professional for measurement Plastic film and sheet, rubber, paper, Cardboard, woven bags, fabric style, communication cable and cable metal composite belt, conveyor belt, wood, coatings, brake pads, wipers, shoe materials, tires and other materials when sliding Coefficient of Friction and dynamic Coefficient of Friction. By measuring the slipperiness of materials, you can control and adjust the mass production process indicators of materials to meet the requirements of product use. In addition, it can also be used for the measurement of slippery performance of cosmetics, eye drops and other daily chemical products.
Features

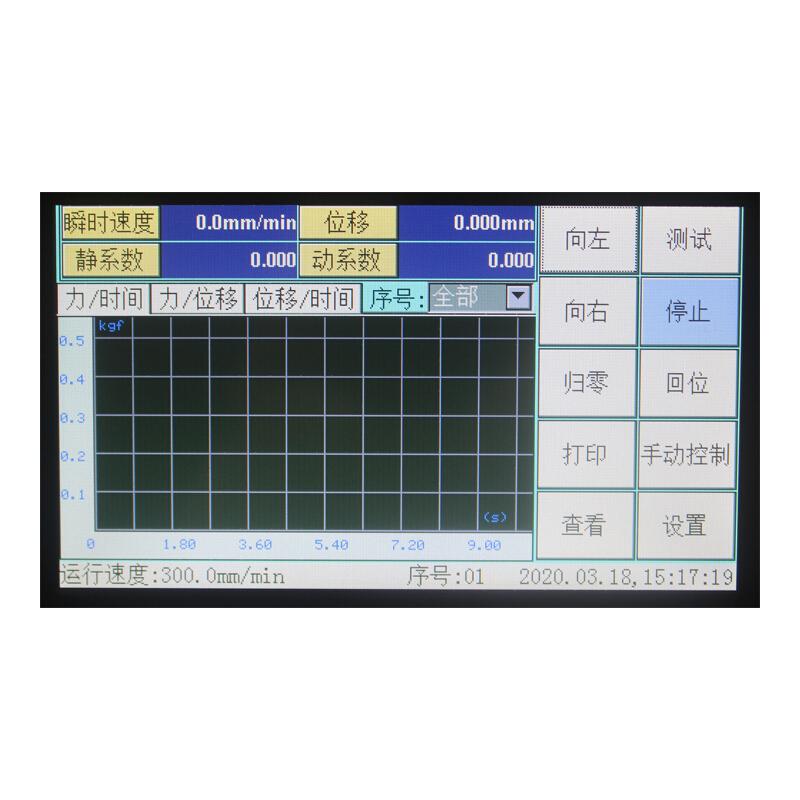

1. The equipment is controlled by a microcomputer, the test process is automated, and it is equipped with a menu-type operation interface, PVC control panel, and LCD screen, which is convenient for users to perform test operations and view data.
2. System accessories are familiar with the manufacturer's components, stable and reliable performance, High Accuracy Force Sensor, to achieve domestic test accuracy: 0.001N.
3. No mechanical knob, full digitalization system, digital correction and zero adjustment.
4. Specially designed drive system for smooth operation and more accurate test results.
5. The system can simultaneously measure the Static Coefficient of Friction and the Dynamic Coefficient of Friction.
6. Equipped with a micro-printer to automatically print test reports for single or group samples.
7. The instrument test table and test slider have been degaussed and remanence detected, effectively reducing the system test error.
8. Group data, embedded data statistical analysis function.
9. The instrument interface is simple in design, easier to operate, and easy to use.
Principle
The instrument calculates the Static Coefficient of Friction and the Dynamic Coefficient of Friction by measuring the friction when the material slides to evaluate the slippery performance of the material.
Applications
Plastic film, sheet, rubber, paper, Cardboard, woven bags, Spinning & weaving products, non-woven fabrics, aluminum foil, aluminum foil composite film, metal products, printing products, cosmetics, eye drops and other daily chemical products
Standards
GB 10006、GB/T 17200、GB/T 22895、ISO 8295、ASTM D1894、TAPPI T816
Steps
1. Turn on the power supply and start the instrument.
2. Set the test parameters through the menu operation interface.
3. Place the specimen on the test table.
4. Start the test, the instrument automatically runs and measures friction.
5. Review the test data on the LCD screen.
6. Use a microprinter to print the test report.
Notice
• Ensure that the instrument is placed in a standard test environment.
• Power supply voltage check before use meets AC 220V +/- 10% 50Hz requirements.
• The test slider mass is fixed at 200g and cannot be replaced at will.
• Periodic digital correction and zeroing to ensure test accuracy.
• Avoid use in a strong magnetic field environment to prevent interference with test results.
