AISRY NBC-5620 Touch screen insertion force testing machine, precision Sensor 0-50kgf insertion force

Name: AISRY NBC-5620 Touch screen insertion force testing machine, precision Sensor 0-50kgf insertion force
Brand: AISRY
SKU: NB044627
Price: 1108.0 USD
Availability: InStock

$ 1108.00Ex works

Adopt Precision Sensor to achieve 0-50kgf insertion force test, support 0-60 times/minute speed regulation and 5-45mm Travel adjustment, with overload automatic stop and 10 sets of data automatic save functions.

Model

NBC-5620

Get Quote

Category : Other Instruments

Brand : AISRY

SKU : NB044627

Service :The delivery and service By NBCLab.Com

Overview

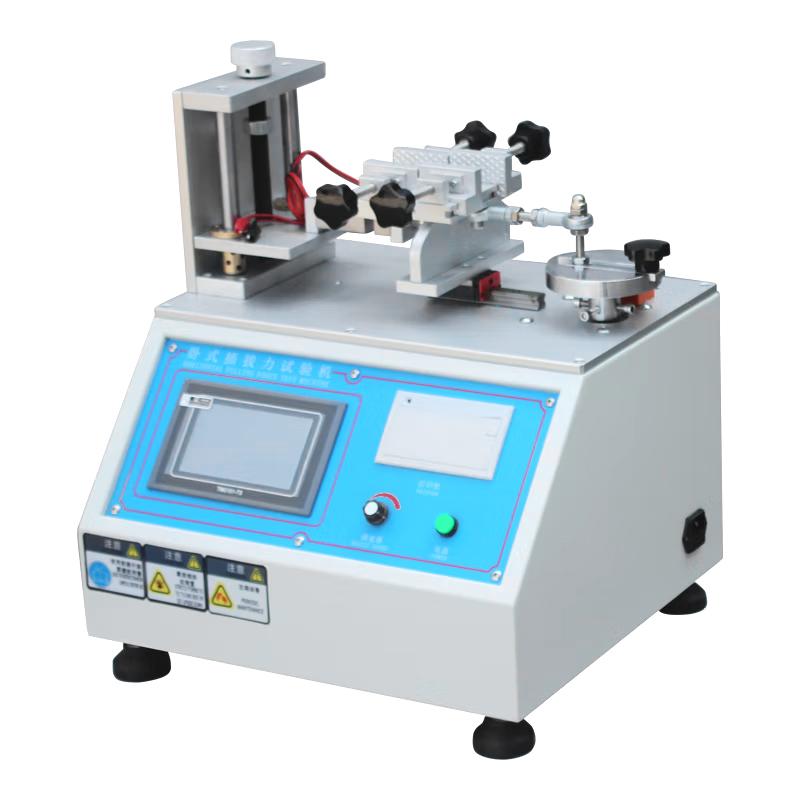

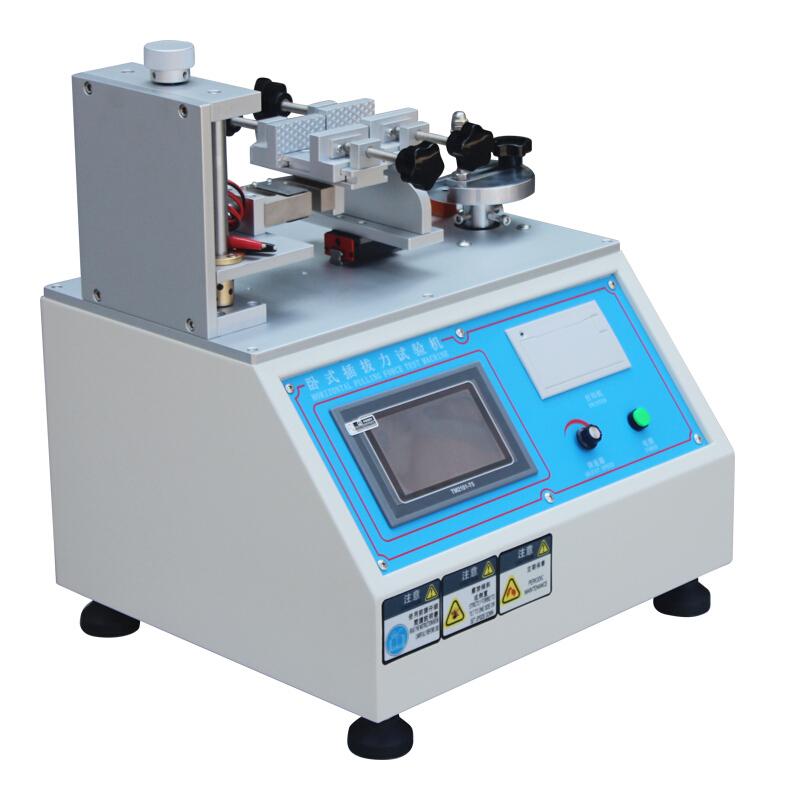

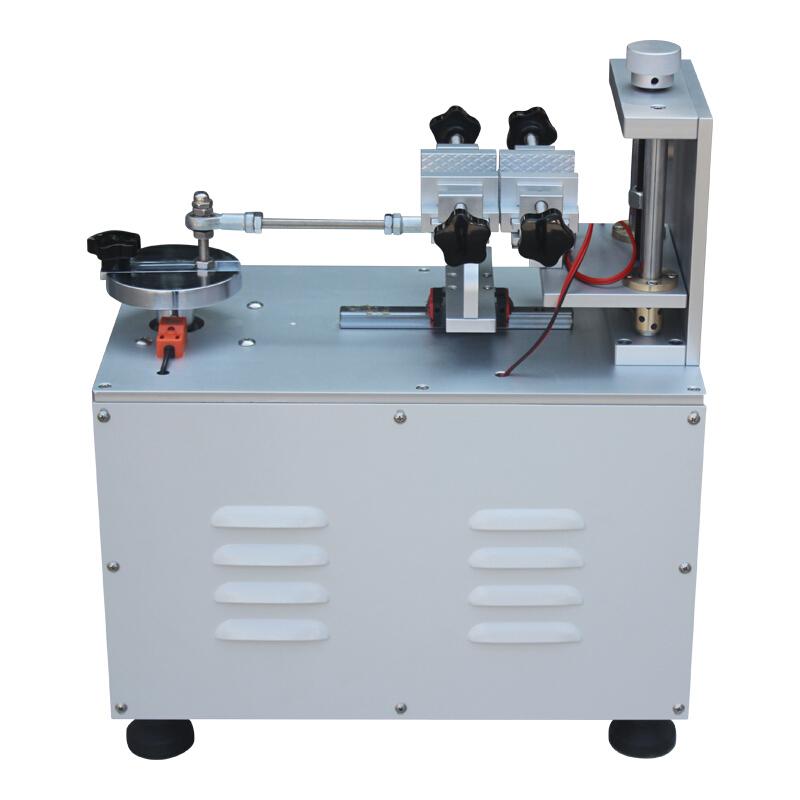

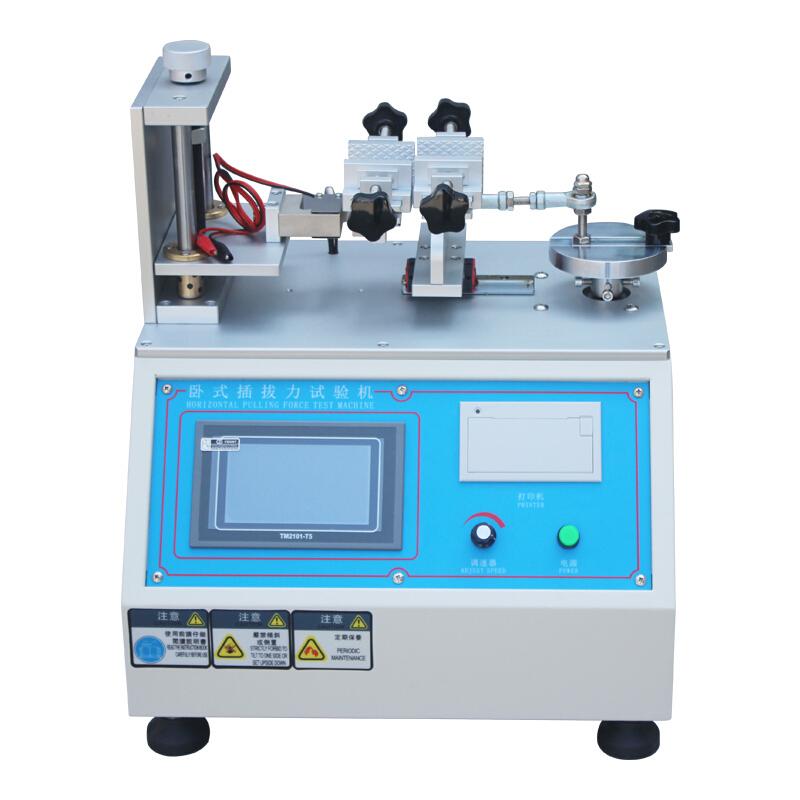

The NBC-5620 touch screen plug-in force testing machine is used for a variety of connector plug-in and unplug tests. It has the functions of setting the number of times, adjusting the speed stroke, and displaying the speed value. The device can display the continuous change value and peak value of the plug-in force, and has the number setting, adjustable speed pull stroke, and display speed value.

Features

1. With overload load setting automatic stop alarm function 2. With automatic saving function, a maximum of ten points can be automatically saved and the average value can be obtained 3. Use the list method to list the saved test data 4. With the administrator password, the user can change the power-on password 5. Use software to compare quasi-load values 6. Adopt full Chinese prompts to set internal functions, easy and simple to operate

Principle

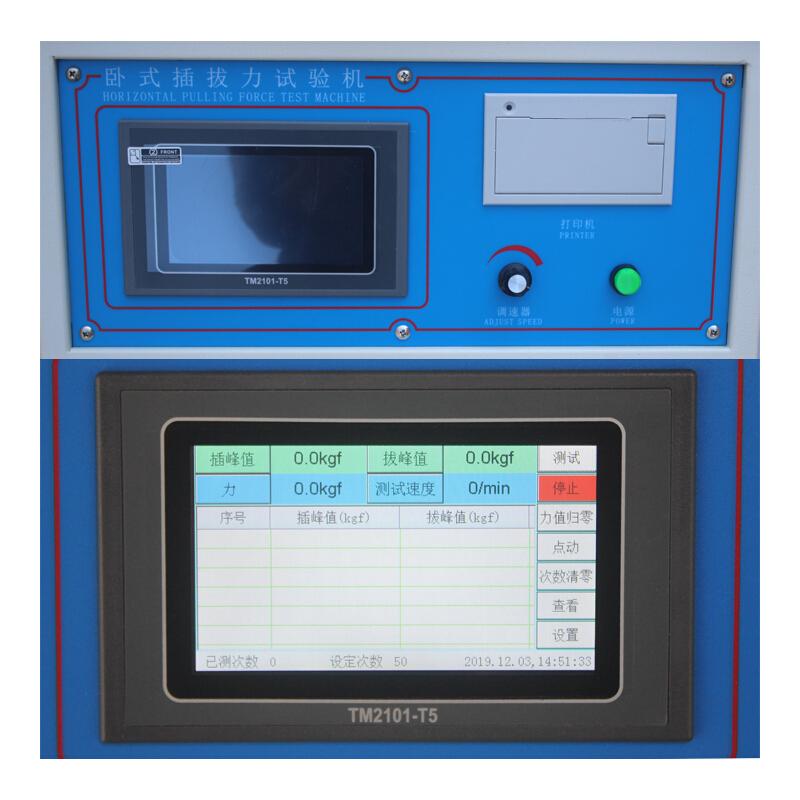

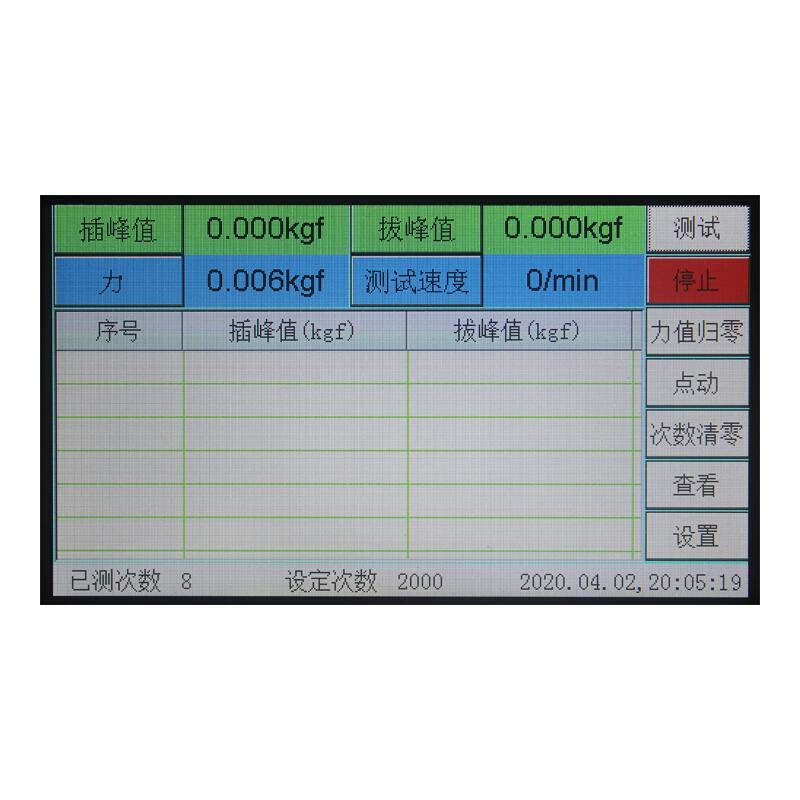

The testing machine through precision Sensor sense plug force, using liquid crystal display and touch screen operation, motor drive to achieve plug action. Adjustable stroke and speed, automatically save the test data and calculate the average value to ensure the accuracy and convenience of testing.

Applications

Plug and unplug test of various connectors

frequency Range
0-999999
induction method
Precision Sensor
Insertion force display
liquid crystal display
display mode
Touch screen, external instrument, with peak hold function, N, LB, kg three unit conversion functions
Motor power
90W
Machine weight
About 80kg
Speed Range
0-60 times/minute
insertion force Range
0-50kgf
Stroke adjustment Range
5-45mm
Machine Size
550x450x780mm
supply Voltage
220V±10%
