Overview

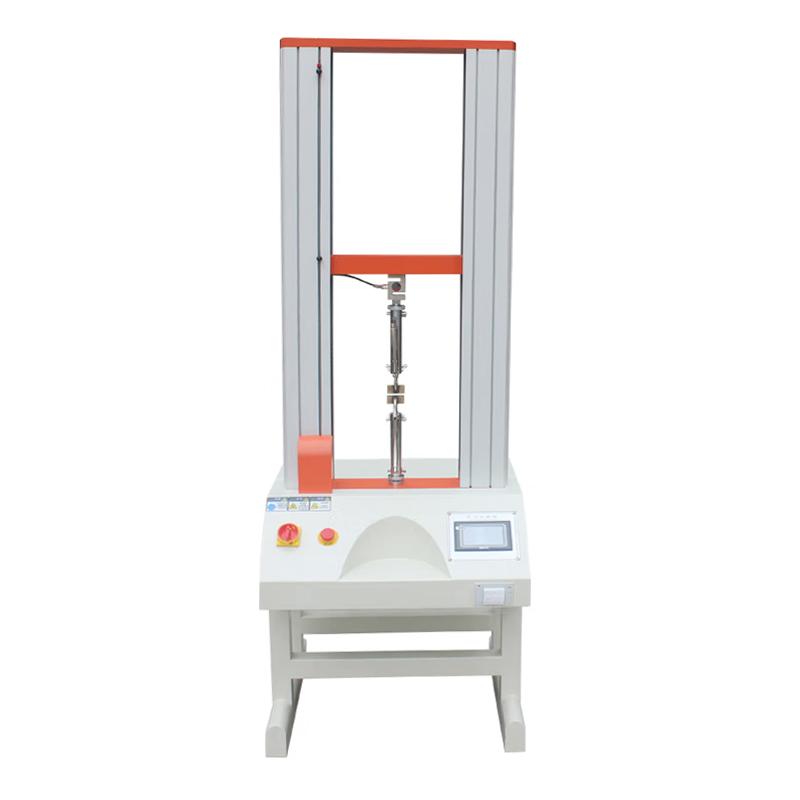

NBC-1023-1 Computerized Double Column Universal Testing Machine is a factory direct sales of High Accuracy testing equipment, suitable for aerospace, Petrochemicals, machinery manufacturing, metal materials and products, Wire and cable, rubber and plastic, paper and color printing Encasement, adhesive tape, bags and handbags, Spinning & weaving fiber, food and other industries, can test a variety of materials and finished products, work in progress of physical performance, through the purchase of different fixtures to achieve tensile, compression, holding, holding pressure, bending, tearing, disbonding, adhesion, shear and other tests.
Features
1. The base is supplemented by plastic-sprayed aluminum alloy profile columns;
2. High Accuracy, Gap-free Ball Screw and Timing Belt are used to ensure the accuracy of the transmission system;
3. Fully computerized data collection and motion control;
4. Test software under Windows XP operating system, users can use the existing functions of the software to complete the mechanical test project, or they can edit the test method according to their actual needs.
5. Better than 0.5 level of force measurement Precision, 1/300000 force value resolution;
6. Using the windows working platform, all parameter settings are processed in the form of dialog boxes, and the operation is simple;
7. Adopt single-screen operation, no need for screen switching;
8. The software interface is available in three languages: Simplified Chinese, Traditional Chinese and English, making it easy to switch.
9. The test form mode can be customized by yourself.
10. Test data can be directly called on the main screen.
11. Data comparison of multiple Linear dispersion can be performed simultaneously by means of translation, comparison, etc.;
12. Measurement unit with a variety of metric system can be switched;
13. It has three closed-loop control functions of force, deformation and speed.
14. With automatic return function;
15. With automatic correction function;
16. With custom test method function;
17. With test data operation and analysis capabilities;
18. With the function of automatic magnification, to achieve the most appropriate size graphics;
19. Can do tensile, compression, bending, disbonding, tensile, pressure, fatigue and other tests;
20. Safety devices include limit protection, overload protection, and automatic diagnostic functions.
Principle
The testing machine uses full computer data collection and motion control, through High Accuracy, no gap ball screw and timing belt drive system to ensure accuracy, running test software under Windows XP operating system to achieve power, deformation, speed three closed-loop control, can customize the test method and automatic data analysis.
Applications
Aerospace, Petrochemicals, Machinery Manufacturing, Metal Materials and Products, Wires and cables, Rubber, Plastic, Paper and Color Encasement, Adhesive tapes, Luggage and handbags, Spinning & weaving fibers, Food
Standards
GB、ISO、ASTM、BS、DIN、JIS
Steps
1. Connect standard accessories, including stretch or compression clamps, USB data cables, and power cables.
2. Start the device and run the test software under the Windows XP operating system.
3. Use the dialog box to set parameters, select or customize the test method;
4. Install the sample and select the corresponding fixture.
5. Start the test, and the equipment automatically performs data collection and control;
6. After the test is completed, view and analyze the data, and compare multiple Linear dispersion;
7. Use the automatic return function to reset the device.
Notice
• Make sure to work within the set itinerary to take advantage of the limit protection function;
• Avoid loading more than 110% of the Power Sensor to prevent automatic shutdown due to overload protection.
• Regularly check the automatic diagnosis function of the equipment to ensure that the measurement system and drive system are free from abnormal overvoltage, overcurrent, overtemperature, etc.;
• Before use, confirm that the fixture is customized according to customer samples and installed correctly;
• Follow the software prompts during operation to avoid improper settings affecting the test accuracy;
• Keep the equipment clean and perform regular automatic calibration to maintain accuracy.
