Overview

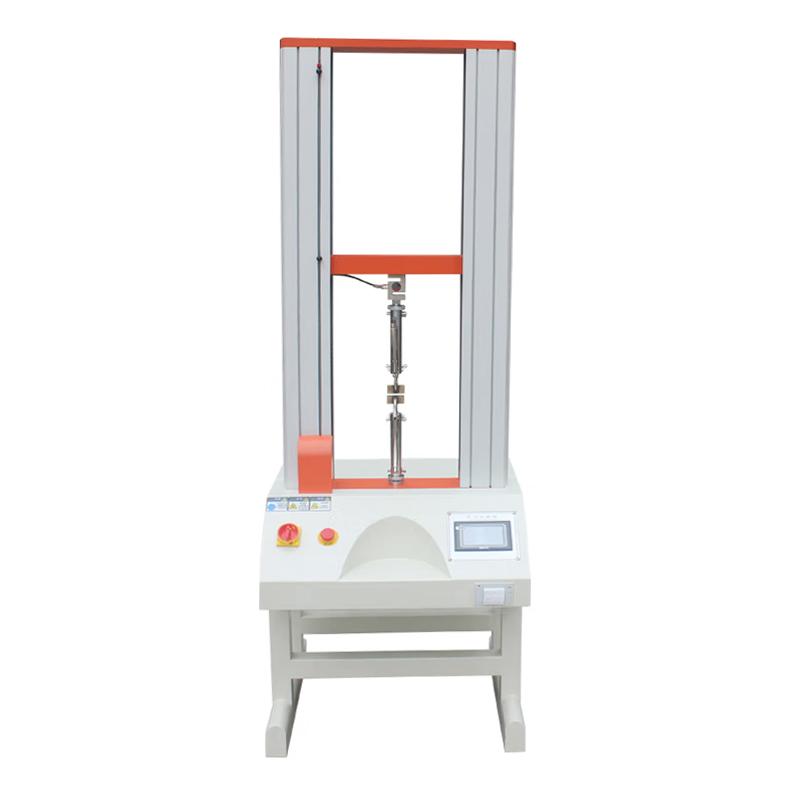

Microcomputer Double Column Tensile Testing Machine (Model NBC-1023) is a factory-sold High Accuracy Testing Equipment, suitable for testing the physical performance of a variety of materials and finished products, including tensile, compressive, tensile, compressive, bending, tearing, disbonding, adhesion, shear and other tests.
Features
1. The control system adopts the AC motor with full digital control frequency to ensure the high efficiency of the transmission system, the smooth transmission, the low noise, and the speed accuracy can be controlled within +/- 0.5%;
2. The structure of the machine adopts the aluminum extrusion sealing plate treated with paint, which has built-in High Accuracy, Low Resistance, No Gap Double Roller Screw and Guide Column, which improves the load efficiency and structural rigidity;
3. The product performance is stable and reliable, the measurement Precision is high, the test software is powerful, and the operation is easy to understand;
4. Safety devices include stroke protection, power protection, and emergency stop devices.
5. Standard Accessories Include One Year Warranty, Chinese Operating Instructions, Standard Tension Fixture, High Accuracy Load Sensor and Micro Printer.
Principle
The experimental machine drives the AC motor through the full digital control system, drives the High Accuracy double roller screw and the guide column to load, realizes accurate speed and force value control, and measures the physical performance of the material under tensile and compression conditions through Sensor.
Applications
Aerospace, Petrochemicals, Machinery Manufacturing, Metal Materials and Products, Wires and cables, Rubber, Plastic, Paper and Color Encasement, Adhesive tapes, Luggage and handbags, Spinning & weaving fibers, Food
Steps
1. Install the corresponding fixture according to the test requirements.
2. Set system parameters, such as maximum force, travel limit, and test speed.
3. Start the device for testing, manually or preset the pick-up point;
4. After the test is completed, use a micro printer to print the report.
5. In case of emergency, use the emergency stop switch.
Notice
• Make sure the equipment is firmly installed before use to avoid exceeding the travel protection range;
• Set the force protection value to prevent exceeding the Sensor calibration;
• Pay attention to the position of the emergency stop device during operation to deal with emergencies;
Periodically check the integrity of accessories such as clamps and Sensors.
• Follow the operating instructions to avoid damage to the equipment due to improper use.
