Overview

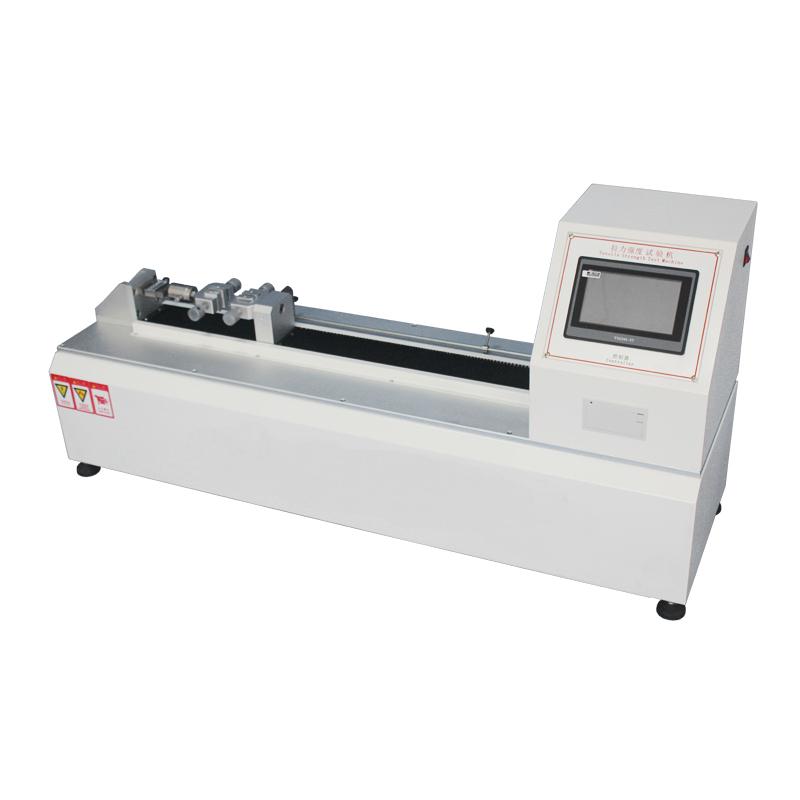

Microcomputer horizontal tensile strength testing machine adopts hydraulic afterburner, the computer automatically collects data and prints the results, which has the characteristics of convenient operation, high test accuracy and stable afterburner. It can carry out tensile, tensile shear, tear and other mechanical properties tests of metal, Non-metallic and other materials, and meet ISO, GB and other test methods and standards. It is widely used in Wire and cable industry and Quality inspection organizations at all levels.
Features
1. Good Appearance Design
2. Force value digital LCD display, can distinguish tension or pressure, LCD interface is clear and easy to read
3. Three Measurement Units: N, Kgf, Lbf Optional and Automatically Interchangeable
4. LCD liquid crystal display with backlighting, can be used in environments with insufficient rays of light
5. A single measurement can read the peak value in both pulling and pressing directions, and can be automatically and manually cleared
6. With travel limit and overload stop function
7. The desktop single column has a beautiful and delicate structure, and the sitting operation is easy and natural
8. The machine contains a thermal printer, which can automatically output test results
9. It can store the results of 10 test reference points, automatically calculate their average value, automatically capture large values, and automatically capture the force value at fracture
10. Display mode: PK-2000 dark blue LCD screen Chinese display, film touch mode button, with the following functions:
①. Single test, manual 10-point statistics, and automatically calculate the average value, fracture value
②. Multi-unit automatic switching such as kgf, Lbf, N
③. Free point selection function
④. With multi-function correction function
⑤. Automatic printing function
④. Using 24-bit AD acquisition, resolution 1/200000
0006. Choose any number of decimal places from 0 to 4
< unk >. Power-on password protection function, which can effectively prevent non-operators from turning on
The breakpoint ratio is from 0 to 99%, and users can set the appropriate breaktime according to different materials
< unk >. Overload protection function can be set to effectively prevent machine overload
Breakpoint ratio setting range: 0~ 99% can be conveniently set according to the testing needs of different test pieces to achieve shutdown state at different positions
Safety device: overload, emergency stop device, up and down stroke limiting device
Principle
Microcomputer horizontal Universal Testing Machine adopts hydraulic afterburner system, which automatically collects data through computer to realize tensile, tensile shear, tear and other mechanical properties test. The equipment has High Accuracy Force Value Analysis and Automatic Control functions to ensure the smooth and reliable test process.
Applications
Wire and cable industry, Quality inspection organizations at all levels
Steps
1. Power on and enter password protection
2. Set test parameters, such as force value units, breakpoint ratios, etc
3. Install the specimen and perform a single measurement
4. Automatically collect data and calculate average and fracture values
5. Use a thermal printer to automatically output test results
6. Store the test reference point results, and manually count 10 points
Notice
- Power supply voltage 1PH, AC220V.50/60Hz
- Check safety devices before use, including overload, emergency shutdown devices, and upper and lower stroke limiting devices
- Set breakpoint ratio according to material characteristics to avoid overload
- Use backlighting in low-ray of light environments
- Non-operators are not allowed to turn it on to prevent misoperation
