Overview

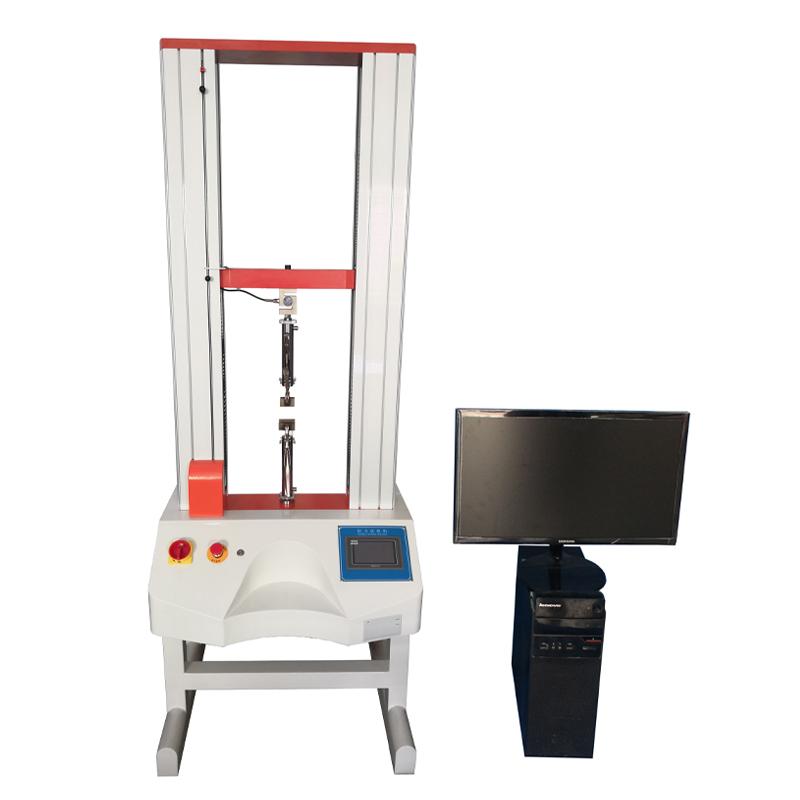

NBC-1024 servo control computer system Universal Testing Machine is a factory-sold High Accuracy testing equipment, suitable for physical performance testing of materials and finished products in a variety of industries. It can perform tensile, compressive, tensile, compressive, bending, tearing, disbonding, adhesion, shear and other tests.
Features
1. The control system adopts the AC motor with full digital control frequency to ensure the high efficiency of the transmission system, the smooth transmission, the low noise, and the speed accuracy can be controlled within +/- 0.5%;
2. The structure of the machine adopts the aluminum extrusion sealing plate treated with paint, which has built-in High Accuracy, Low Resistance, No Gap Double Roller Screw and Guide Column, which improves the load efficiency and structural rigidity;
3. The product has stable and reliable performance, high measurement Precision, powerful test software and easy operation.
Principle
High Accuracy twin roller screws and guide columns are driven by AC motors with full digital control frequency to achieve smooth transmission and precise speed control. Combined with computer system for data collection and processing, various physical performance tests are completed.
Applications
Aerospace, Petrochemicals, Machinery Manufacturing, Metal Materials and Products, Wires and cables, Rubber, Plastic, Paper and Color Encasement, Adhesive tapes, Luggage and handbags, Spinning & weaving fibers, Food
Steps
1. Set the upper and lower limit safety settings and program strength and elongation settings;
2. Select the force unit and set the test speed.
3. Install the corresponding fixture and place the sample.
4. Start the test, during the test, you can manually take points or set points in advance (20 points);
5. After the test is completed, stop the machine through the upper and lower limit safety settings, emergency stop button or program settings.
Notice
• Check whether the stroke protection switch is normal before use to prevent exceeding the preset stroke;
• The system sets the maximum force value to avoid exceeding the sensor calibration value;
• There is an emergency stop switch on the right side of the base to deal with emergencies;
Make sure the machine is placed in a stable plane to avoid tilting or vibration.
Maintain the transmission system regularly to maintain cleanliness and lubrication.
