Overview

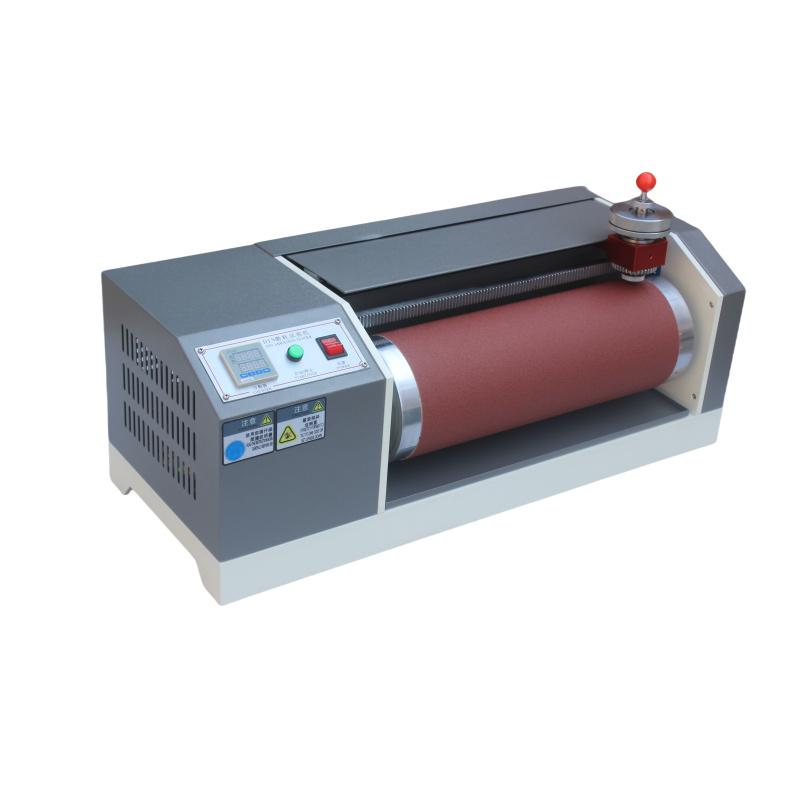

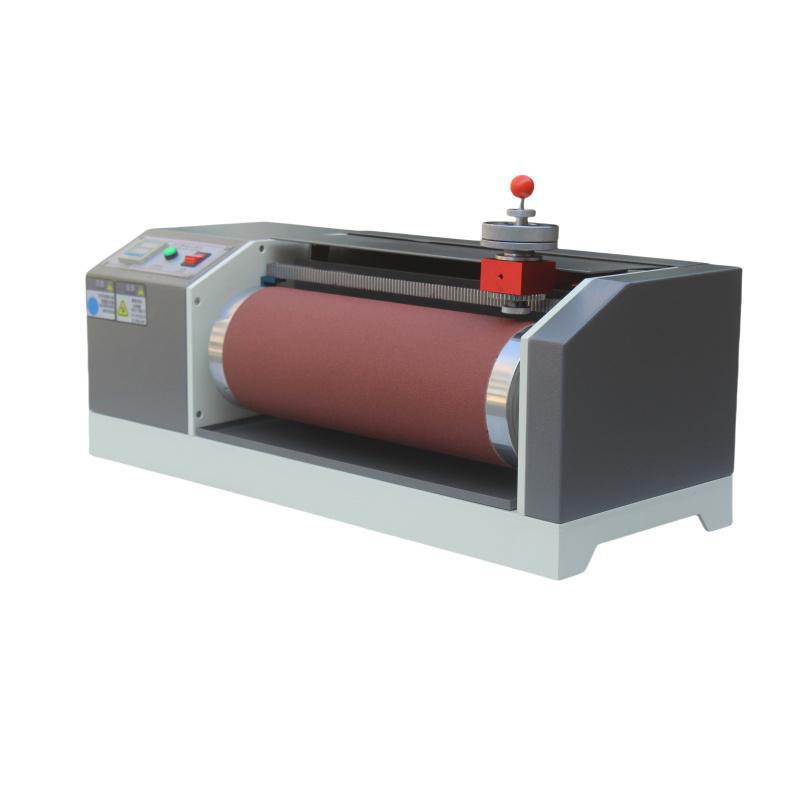

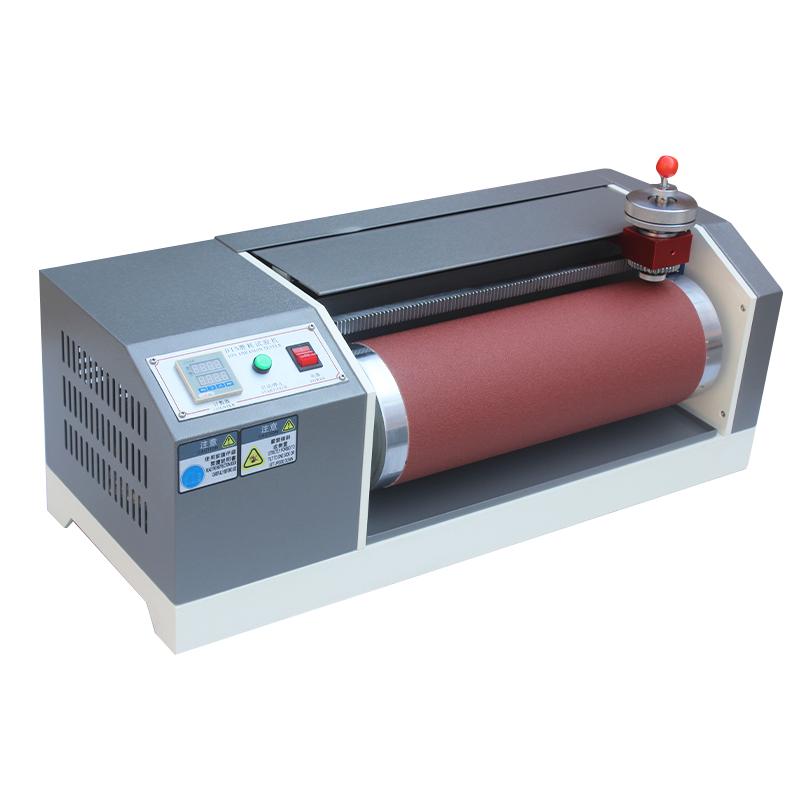

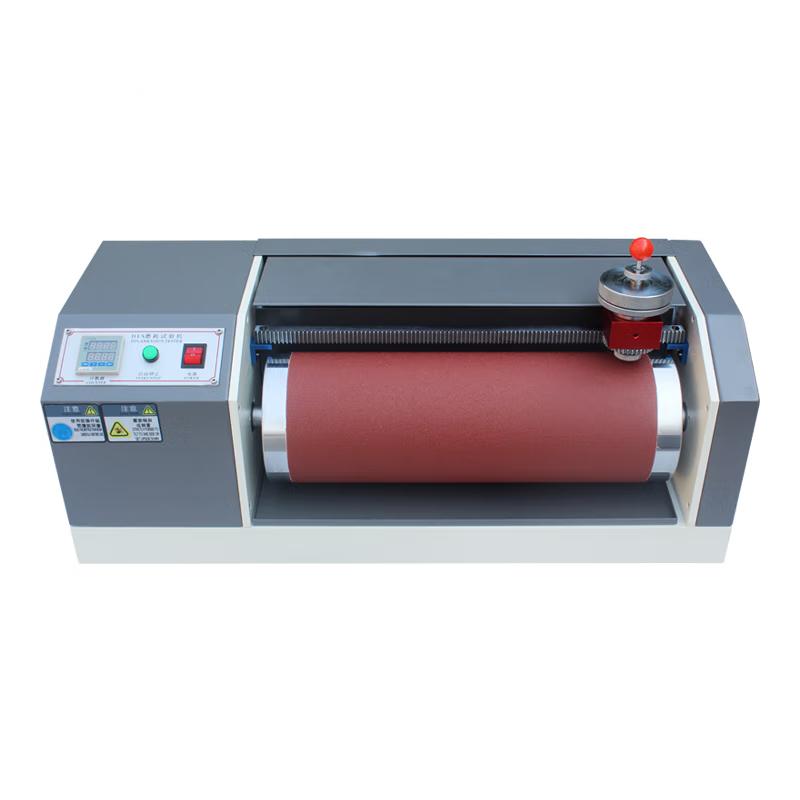

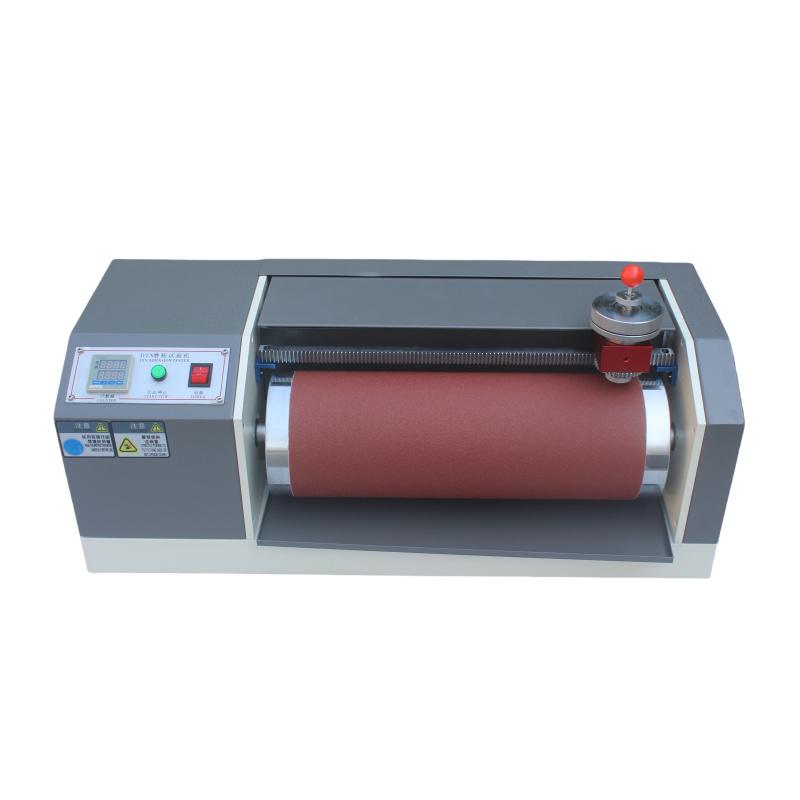

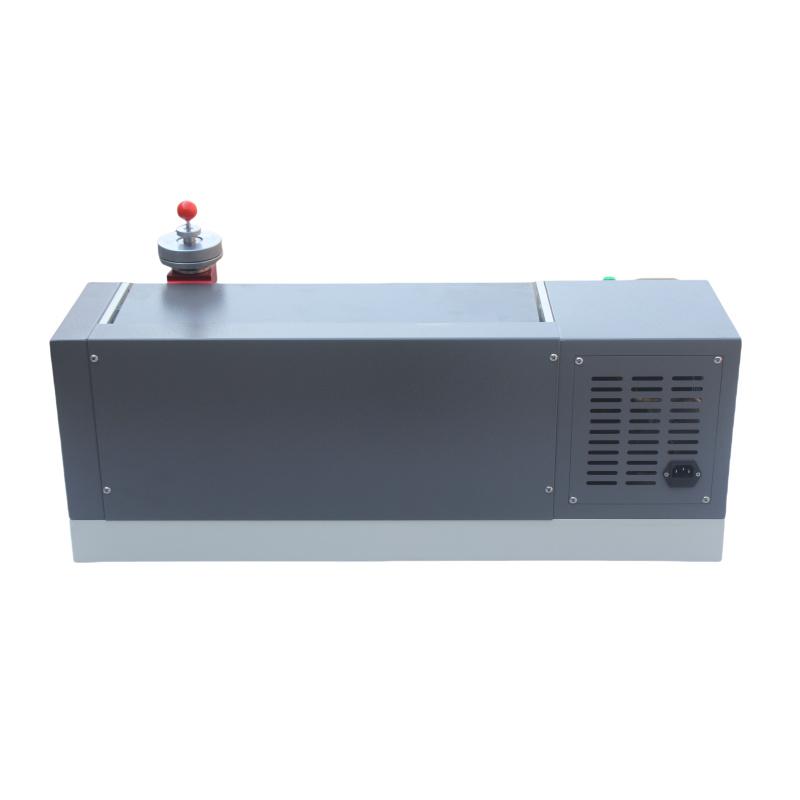

The NBC-5611 DIN Wear resistance tester is a factory direct sales product, suitable for abrasion testing of resilience materials, rubber, tires, conveyor belts, conveyor belts, soles, soft synthetic leather, leather and other materials. The equipment has the characteristics of high efficiency, good reproducibility and easy operation.
Features
1. Compliant with DIN-53516, ISO/DIS-4649, GB-9867 standards
2. Suitable for a variety of resilience materials and leather goods
3. Simple operation, good reproducibility
4. Roller diameter φ 150mm, roller length 460mm
5. Adjustable abrasion stroke 40mm or 20mm
6. Test load optional 5N or 1N
Principle
The device swirl/spin at 40rpm through the roller to drive the test piece for abrasion testing. The abrasion stroke is 40mm (adjustable to 20mm), the abrasion speed is 0.32m/sec, and the tilt angle is 3 °. The test load of 5N or 1N is applied to the test piece with diameter φ 16mm and Film thickness 6~ 15mm to simulate the abrasion situation in actual use.
Applications
Resilience materials, rubber, tires, conveyor belts, soles, soft synthetic leather, leather
Standards
DIN-53516、ISO/DIS-4649、GB-9867
Steps
1. Prepare the test piece with diameter φ 16mm and Film thickness 6~ 15mm
2. Select the test load (5N or 1N)
3. Set abrasion stroke (40mm or 20mm)
4. Start the device for testing
5. Record abrasion results
Notice
• Power supply voltage 220V 50HZ
Film thickness should be in the range of 6~ 15mm
• Select the appropriate test load
• Regularly check the roller status
• Keep equipment clean
