Overview

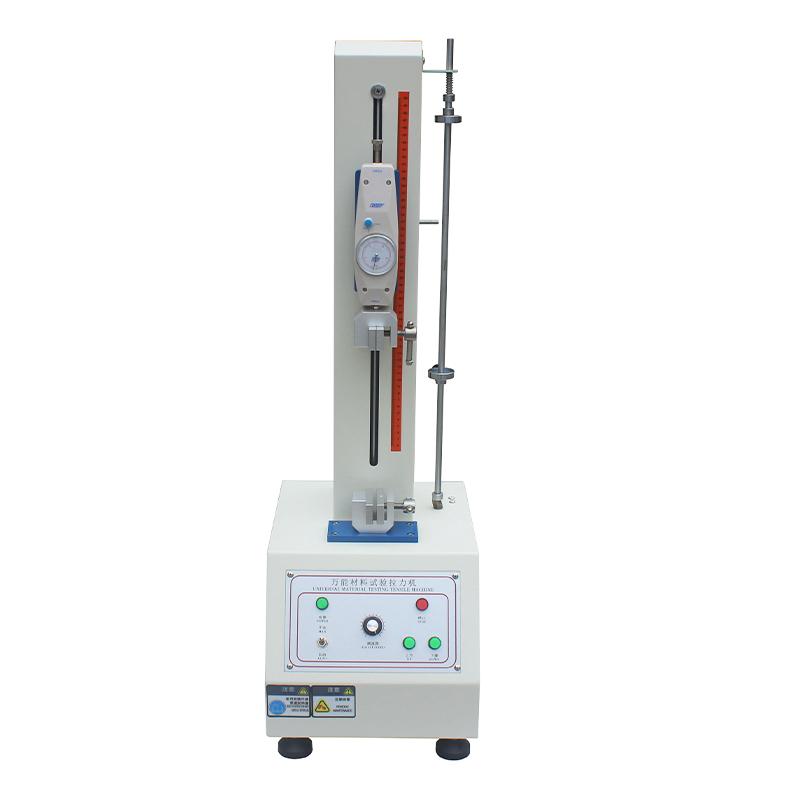

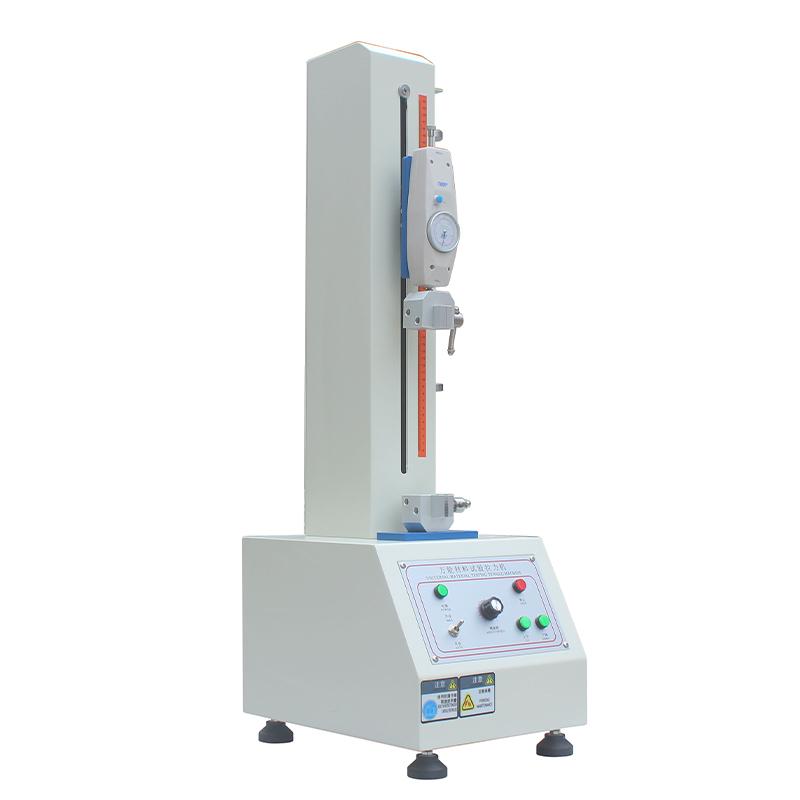

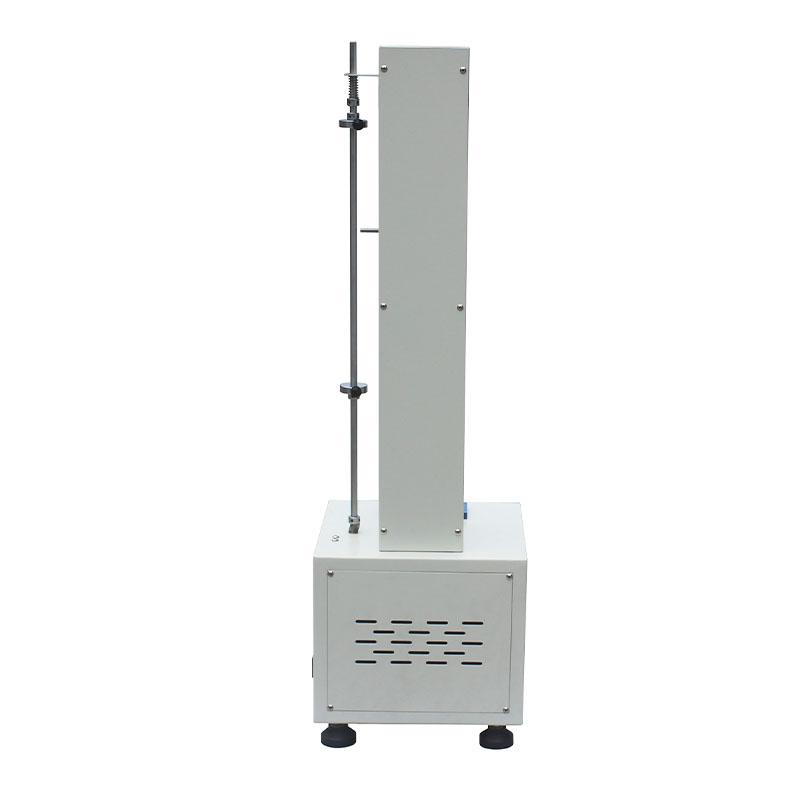

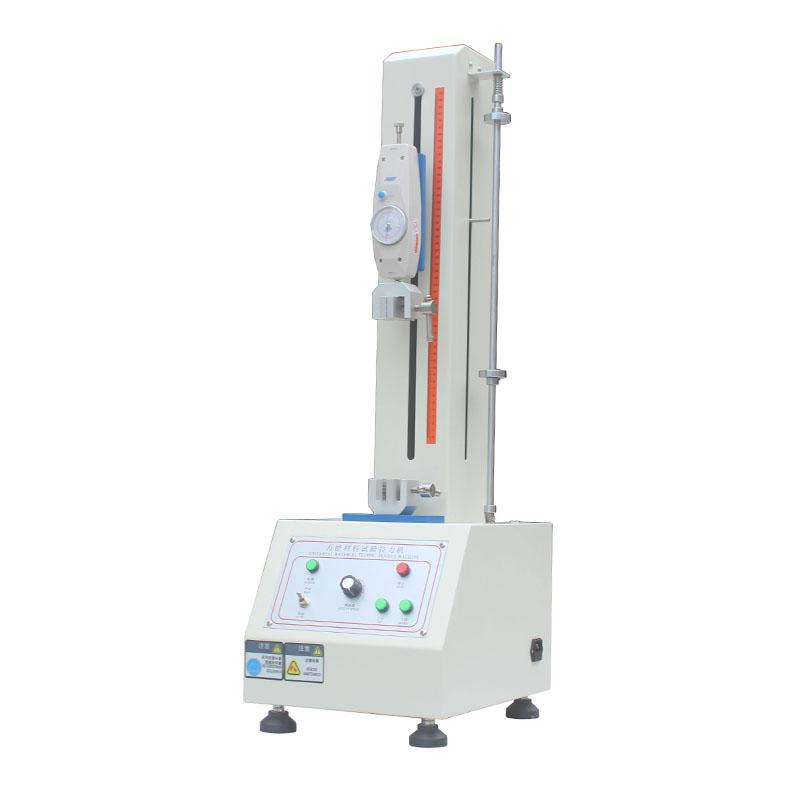

Universal Testing Machine NBC-1001B is a factory-sold testing equipment suitable for testing plastic sheets, pipes, paper, leather, Plastic film, rubber, Wire and cable, waterproof coil, metal wire and other materials. With different fixtures, it can perform tensile compression, bending disbonding, displacement, tearing, insertion force, tensile damage force and other tests. It is an ideal testing tool for industries, mining, commodity inspection and arbitration, R & D institutions, Universities & colleges, engineering mass supervision stations and other departments.
Features
1. Force Measurement range 10~ 500N (50KG), covering a variety of test requirements
2. Effective stroke 350mm, suitable for different material testing

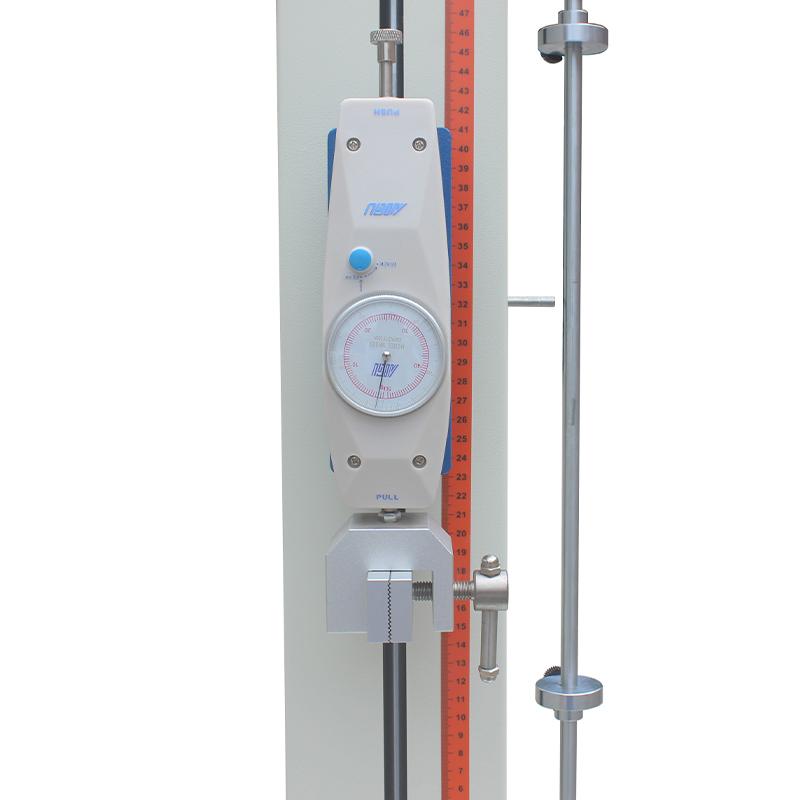

3. Force Gauge sensing method, accurate measurement
4. Test speed range 5~ 300mm/min adjustable, flexible control
5. Power system is AC motor, stable operation
6. Dimension 560 * 345 * 1080mm, compact structure
7. weight 30Kg, easy to move and install
8. Power supply voltage AC220V single phase, easy to use
Principle
Universal Testing Machine is driven by an AC motor, with Force Gauge sensing force changes, applying tensile or compressive forces to the material within a set speed range, measuring its displacement, tearing and other performance parameters to evaluate the mechanical properties of the material.
Applications
Industry and mining, commodity inspection and arbitration, R & D institutions, Universities & colleges, engineering mass supervision stations
Steps
1. Connect the power supply AC220V single phase

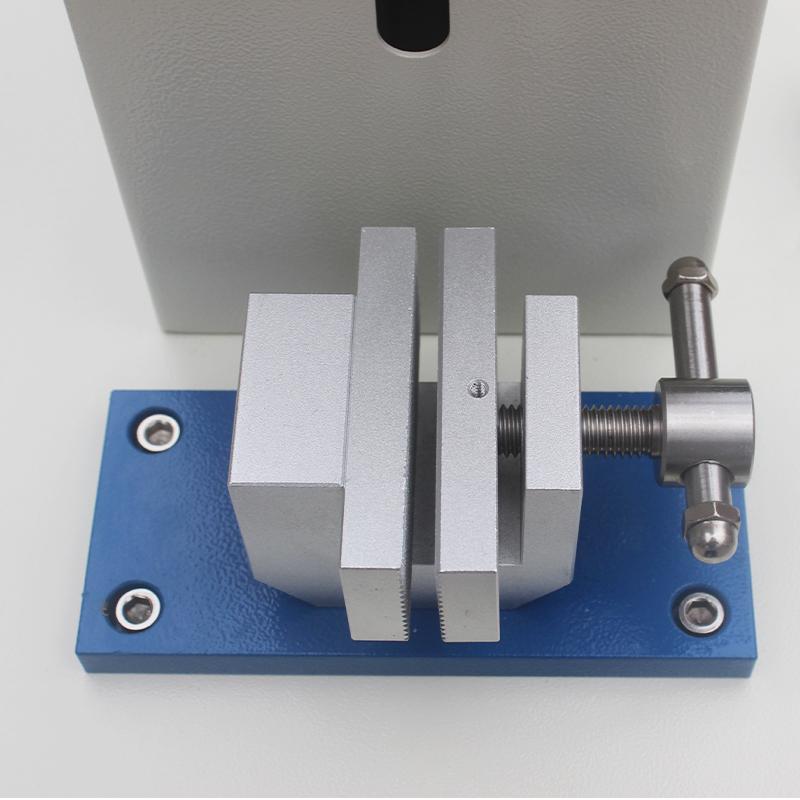

2. Install the corresponding fixture
3. Set the test speed range 5~ 300mm/min
Step 4 Place test materials
5. Start the device for testing
6. Record force and displacement data
Notice
• Power supply voltage AC220V single phase
• Check whether the fixture is firmly installed before the test
Adjust the test speed according to the material characteristics
• Avoid overloading and prevent equipment damage
• Regular maintenance of power systems and induction devices
