Overview

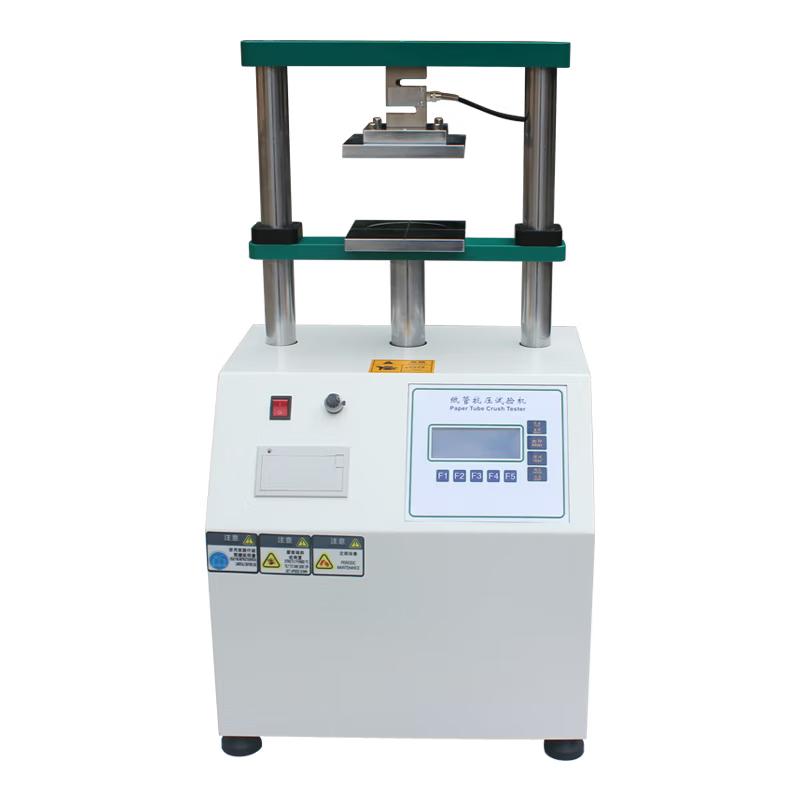

Paper tube compression tester (model NBC-8509) is a factory direct sales product, suitable for paper tubes with an outer diameter of 200mm, also known as paper tube compression tester or paper tube Compression Tester. It is the basic instrument for paper tube compression performance testing, using High Accuracy Sensor and high-speed processing chip design to ensure sampling Precision.
Features
1. After the test is completed, there is an automatic return function, which automatically judges the crushing force and automatically saves the test data
2. Adjustable speed, full Chinese LCD display operation interface, a variety of units to choose from
3. Equipped with a micro printer, the test results can be printed directly
Principle
The paper tube compression testing machine is controlled by a microcomputer, uses High Accuracy Sensor and high-speed processing chip for data sampling, automatically judges the crushing force during the test process, and supports automatic return and data saving functions.
Applications
Paper tube compression performance testing
Standards
BB/T 0032、ISO 11093-9、GB/T 22906.9、GB/T 27591-2011
Steps
1. Set test parameters, including speed and unit
2. Place the paper tube specimen in the test space
3. Start the test, the machine automatically pressurizes and judges the crushing force
4. Automatically return and save data after the test is completed
5. Use a microprinter to print the test results
Notice
• Ensure that the outer diameter of the paper tube does not exceed 200mm
• Check whether the equipment is normal before testing
• Follow the shutdown mode settings to avoid overloading
Periodically calibrate Sensors for Precision
